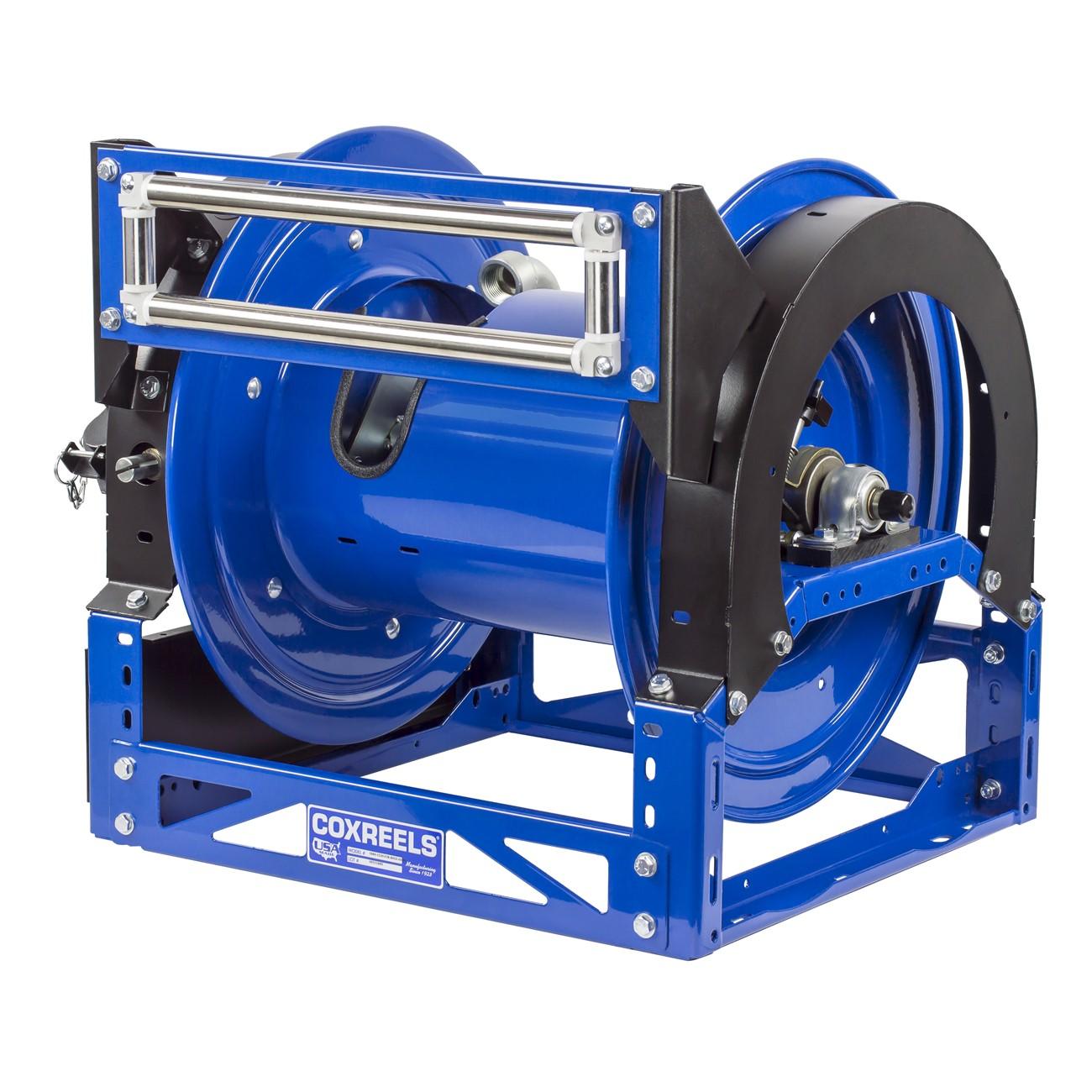

Coxreels 1680-1124 Hose Reel 1.5 in 50 Ft Hand Crank

Product Description

The COXREELS 1680-1124 is a heavy-duty hand crank hose reel from the 1600 Series, built for demanding industrial and trade applications where reliable hose management is required. The reel accepts 1.5-inch ID hose up to 50 feet and features a one-piece CNC robotically welded 12-gauge steel hybrid A-frame base for structural rigidity. A nickel-plated steel inline NPT swivel allows seal maintenance and hose installation without removing the reel from its mount. At 77 pounds, this unit is engineered for permanent or semi-permanent installation by maintenance technicians, industrial service crews, and trade contractors who require a durable, configurable hose management solution.

The 1680-1124 is suited for industrial facilities, service bays, and commercial environments where large-bore hose delivery of water, air, or compatible fluids is needed. The 1600 Series symmetric reel platform supports a wide range of component configurations, making it adaptable to varied application requirements including different mounting orientations and accessory upgrades. Its robust construction targets customers with demanding dimensional and capacity requirements across many conceivable service scenarios.

Key Features

• 1.5-inch ID hose inlet with 50-foot hose capacity for large-bore delivery applications
• One-piece CNC robotically welded 12-gauge steel hybrid A-frame base — not bolted — for superior structural integrity
• Nickel-plated steel inline NPT swivel enables seal maintenance and hose swaps without dismounting the reel
• CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design promotes flat, non-crimping hose wrap
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• Adjustable tension brake prevents free-wheeling; CPC powder coat finish resists chipping and rust

Compatibility

Designed as a direct-mount hose reel for industrial and commercial service installations requiring 1.5-inch ID hose lines up to 50 feet; part of the COXREELS 1600 Series platform which supports multiple component configurations and mounting options.

Installation Notes

Installation should be performed by qualified maintenance or mechanical contractors familiar with industrial hose reel mounting practices. Shut off and depressurize the supply line before connecting or servicing the swivel and plumbing fittings. Secure the reel to a structurally sound surface using the vertical sides of the hybrid frame per the manufacturer mounting instructions. Verify all NPT threaded connections are properly sealed and rated for the intended fluid and pressure before returning the system to service.

Technical Specifications

• Hose ID: 1.5 inches
• Hose Capacity: 50 feet
• Retraction Method: Hand Crank
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Material: Nickel-plated steel, inline NPT
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Weight: 77 pounds
• Series: 1600

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1680-1124
