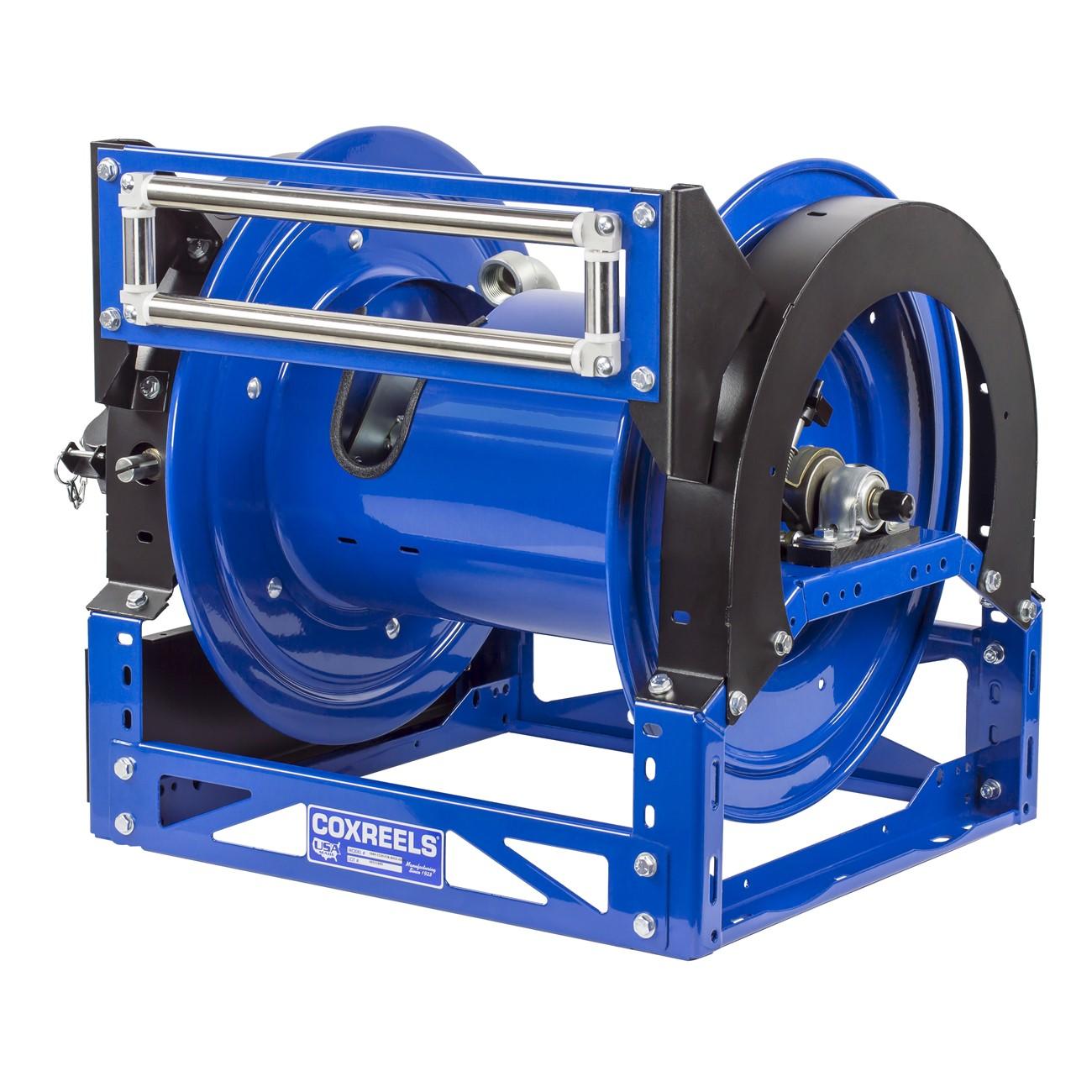

Coxreels 1680-1124-ED 1600 Series Hose Reel 1-1/2 in 50 Ft

Product Description

The COXREELS 1680-1124-ED is a heavy-duty motor-driven hose reel from the 1600 Series, built for demanding industrial and trade applications. It features a 1-1/2 inch ID hose capacity with a 50-foot hose length rating and is constructed from 12-gauge CNC robotically welded steel. The unit ships at 103 pounds, reflecting the robust all-steel construction throughout. Drive is provided by a 12-volt DC, 1/2 HP explosion-proof reversible motor, making this reel suitable for powered retraction in environments where ignition risk is a factor. Licensed tradespeople and industrial service technicians are the primary installers for this class of reel.

The 1680-1124-ED is designed for applications that require a large-capacity, motorized hose management solution. Its symmetric hybrid frame design accommodates a wide range of mounting configurations, including vertical side mounting. The reel is targeted at customers who need flexible dimensional options and a configurable platform that can be adapted to specific service environments such as fleet maintenance facilities, industrial plants, and heavy-duty service bays.

Key Features

• 12V DC, 1/2 HP explosion-proof reversible motor for powered hose retraction in hazardous locations
• 1-1/2 inch ID hose path with 50-foot capacity and low-profile outlet riser for non-crimping, flat smooth hose wrap
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• One-piece CNC robotically welded 12-gauge steel hybrid A-frame base for superior structural rigidity
• Nickel-plated steel inline NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Permanently lubricated, self-aligning pillow block bearings with adjustable tension brake to prevent free-wheeling
• CPC powder coat finish with zinc-plated steel plumbing for corrosion and chip resistance

Compatibility

Designed as an OEM-configuration motorized hose reel within the COXREELS 1600 Series platform, which accepts nearly endless component configurations for a wide range of hose management applications.

Installation Notes

Installation should be performed by a qualified technician familiar with both mechanical hose reel mounting and low-voltage DC electrical connections. Disconnect and lock out all electrical power to the 12V DC supply circuit before wiring the motor. Secure the reel to a structurally adequate mounting surface using the hybrid frame vertical sides, following the mounting hardware specifications provided in the manufacturer documentation. In explosion-proof or classified hazardous locations, verify that all electrical connections and conduit fittings comply with applicable NEC requirements for the area classification.

Technical Specifications

• Hose ID: 1-1/2 inches
• Hose Capacity: 50 feet
• Motor: 12V DC, 1/2 HP explosion-proof reversible
• Frame Material: 12-gauge steel, CNC robotically welded
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Swivel: Nickel-plated steel inline NPT
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Bearings: Permanently lubricated self-aligning pillow block
• Weight: 103 pounds
• UPC: 674255856325

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1680-1124-ED
