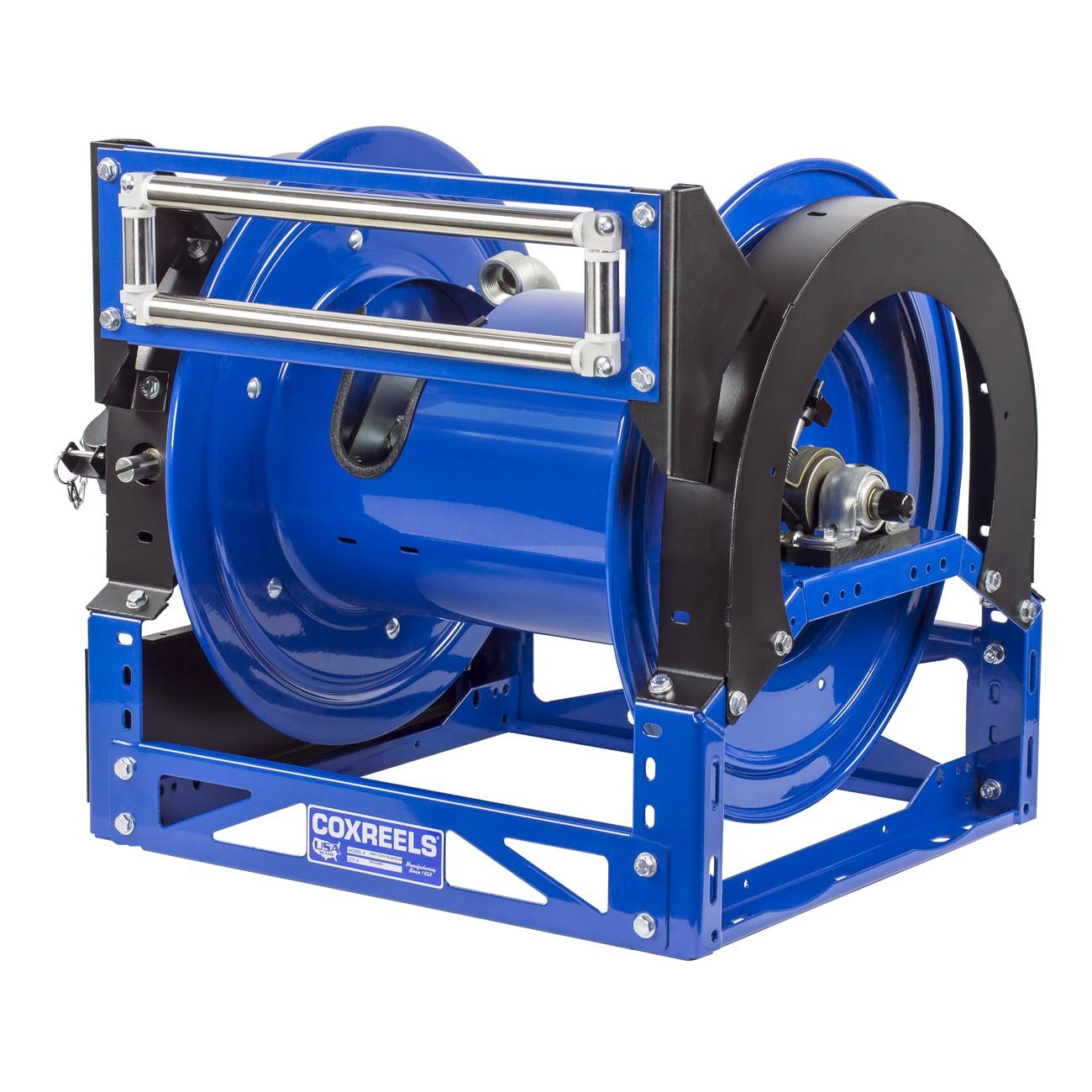

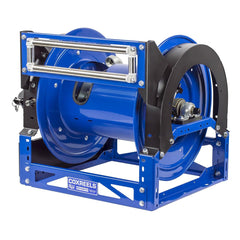

Coxreels 1680-1124-E Hose Reel 1.5 in 50 Ft Steel 12V Dc

Product Description

The COXREELS 1680-1124-E is a heavy-duty motor-driven hose reel from the 1600 Series, built for industrial and commercial fluid transfer applications. It features a 1.5-inch inner diameter inlet and accommodates up to 50 feet of hose. The reel is constructed with 12-gauge CNC robotically welded steel and driven by a 12-volt DC, 1/3 horsepower reversible motor. It ships as a single unit weighing 90 pounds. This reel is suited for service operations, vehicle-mounted installations, and fixed station dispensing where motorized retraction and a durable steel frame are required. Licensed trades and industrial maintenance crews are the typical installers.

The 1680-1124-E fits within the COXREELS 1600 Series platform, which is designed for applications demanding flexible hose capacity envelopes and configurable component options. The hybrid frame architecture supports both vertical side mounting and a wide range of optional accessories, making it adaptable to shop floor, fleet service, and industrial facility installations. The symmetric reel design accommodates various hose types and routing configurations across both light commercial and heavy industrial environments.

Key Features

• 12-volt DC, 1/3 HP reversible motor enables powered hose extension and retraction
• 1.5-inch ID inlet with nickel-plated steel inline NPT swivel for simple seal maintenance without removing the reel from its mount
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, hose protection, and operator safety
• One-piece 12-gauge CNC robotically welded steel hybrid A-frame base for superior structural rigidity and versatile mounting
• Exclusive low-profile outlet riser and open drum slot design promotes flat, smooth, non-crimping hose wrap
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish with zinc-plated steel plumbing for chip and corrosion resistance
• Adjustable tension brake prevents free-wheeling during hose deployment

Compatibility

Designed as an OEM-style component within the COXREELS 1600 Series platform, which supports modular accessory and configuration options for a wide range of hose reel applications.

Installation Notes

Installation of motor-driven hose reels should be performed by qualified mechanical or industrial maintenance technicians. Shut off all fluid supply and disconnect electrical power before mounting or servicing the unit. The 12-volt DC motor requires a properly rated electrical connection; ensure wiring complies with applicable NEC guidelines for the installation environment. Secure the reel to a structurally sound surface rated for the combined weight of the reel and maximum hose load.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Capacity: 50 feet
• Motor Voltage: 12 volts DC
• Motor Output: 1/3 HP reversible
• Frame Material: 12-gauge steel, CNC robotically welded
• Disc Construction: CNC robotically spun and ribbed steel with rolled edges
• Swivel: Nickel-plated steel inline NPT
• Finish: CPC powder coat with zinc-plated steel plumbing
• Weight: 90 pounds
• Sold As: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1680-1124-E
