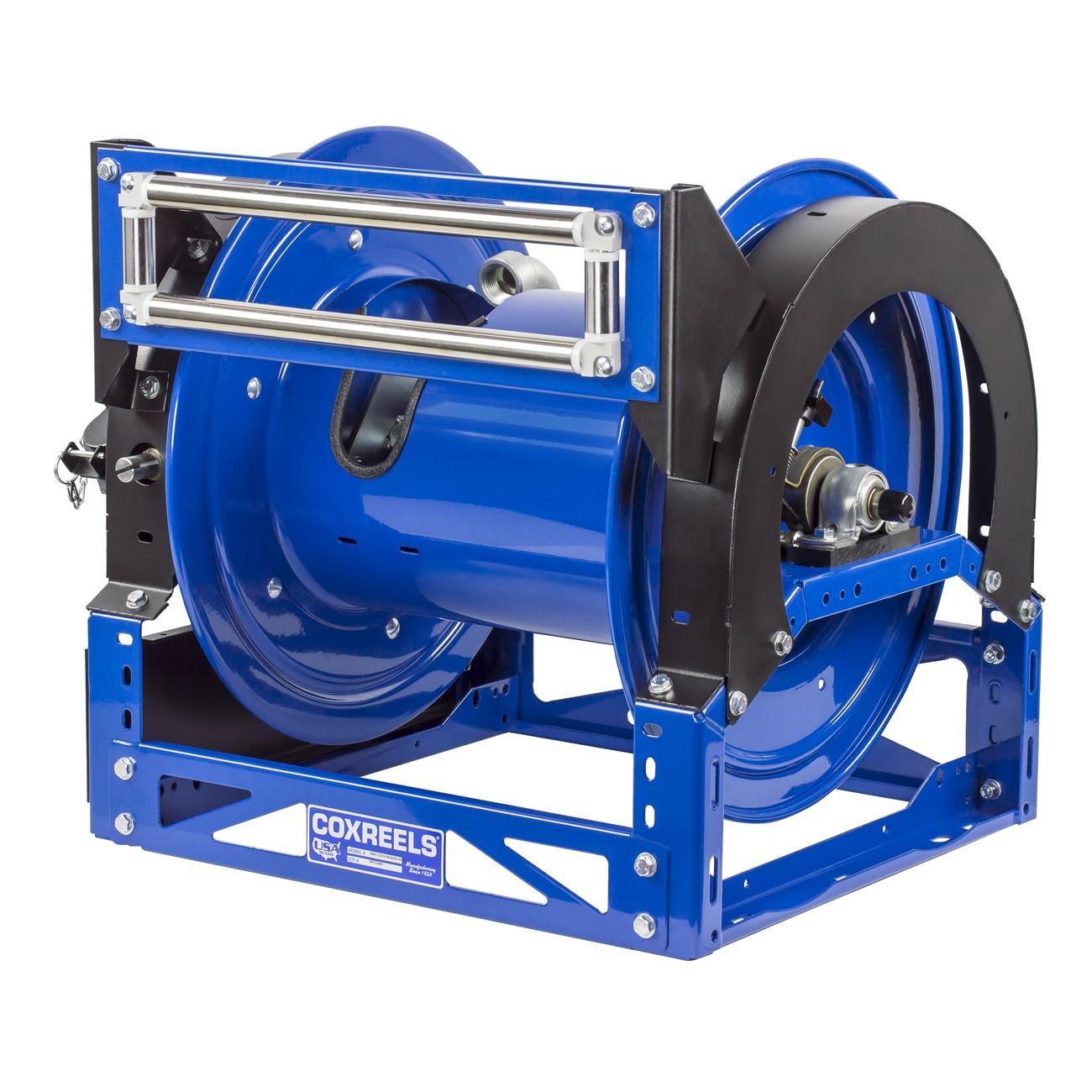

Coxreels 1680-1120 Hose Reel 1.5 Inch 35 Ft Hand Crank

Product Description

The COXREELS 1680-1120 is a heavy-duty hand crank hose reel from the 1600 Series, designed for industrial and commercial applications where reliable hose management under demanding conditions is required. Built on a hybrid A-frame platform, this reel features a 1.5-inch inner diameter inlet and accommodates up to 35 feet of hose. The one-piece CNC robotically welded 12-gauge steel frame provides a rigid, non-bolted structure for long-term durability. A nickel-plated steel inline NPT swivel allows seal maintenance and hose replacement without removing the reel from its mount. Installed by contractors, service technicians, and industrial maintenance professionals.

The 1680-1120 suits a wide range of fluid transfer and industrial service applications. The 1600 Series symmetric reel design supports flexible mounting configurations and nearly unlimited accessory combinations, making it adaptable for wash-down, lubrication, air, and other high-demand hose management scenarios. The adjustable tension brake prevents free-wheeling during hose deployment, and the direct hand crank provides controlled mechanical retraction. The open drum slot and low-profile outlet riser deliver a flat, non-crimping hose wrap for consistent hose integrity across the service life of the reel.

Key Features

• 1.5-inch ID inlet with nickel-plated steel inline NPT swivel for easy maintenance without dismounting
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• One-piece 12-gauge steel hybrid A-frame, fully CNC robotically welded, not bolted
• Permanently lubricated, self-aligning pillow block bearings for smooth, low-maintenance rotation
• Exclusive low-profile outlet riser and open drum slot for flat, non-crimping hose wrap
• CPC powder coat finish with zinc-plated steel plumbing for corrosion resistance

Compatibility

Designed as an OEM-style replacement and direct-fit option within the COXREELS 1600 Series platform, compatible with standard NPT hose and fittings sized for 1.5-inch ID service lines.

Installation Notes

Installation is typically performed by industrial maintenance technicians or licensed contractors familiar with high-capacity hose reel systems. Shut off all fluid supply and depressurize the line before connecting or servicing the swivel inlet. Mount to a structurally adequate surface using the vertical sides of the hybrid A-frame per the manufacturer mounting guidelines. Follow all applicable site safety and plumbing codes for the specific fluid service type.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Capacity: 35 feet
• Frame Material: 12-gauge steel, CNC robotically welded
• Retraction Method: Hand crank
• Swivel Material: Nickel-plated steel, inline NPT
• Finish: CPC powder coat with zinc-plated steel plumbing
• Weight: 65 pounds
• UPC: 674255857476

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1680-1120
