Coxreels 1680-1120-ED 1600 Series Hose Reel 12V Dc Motor

Product Description

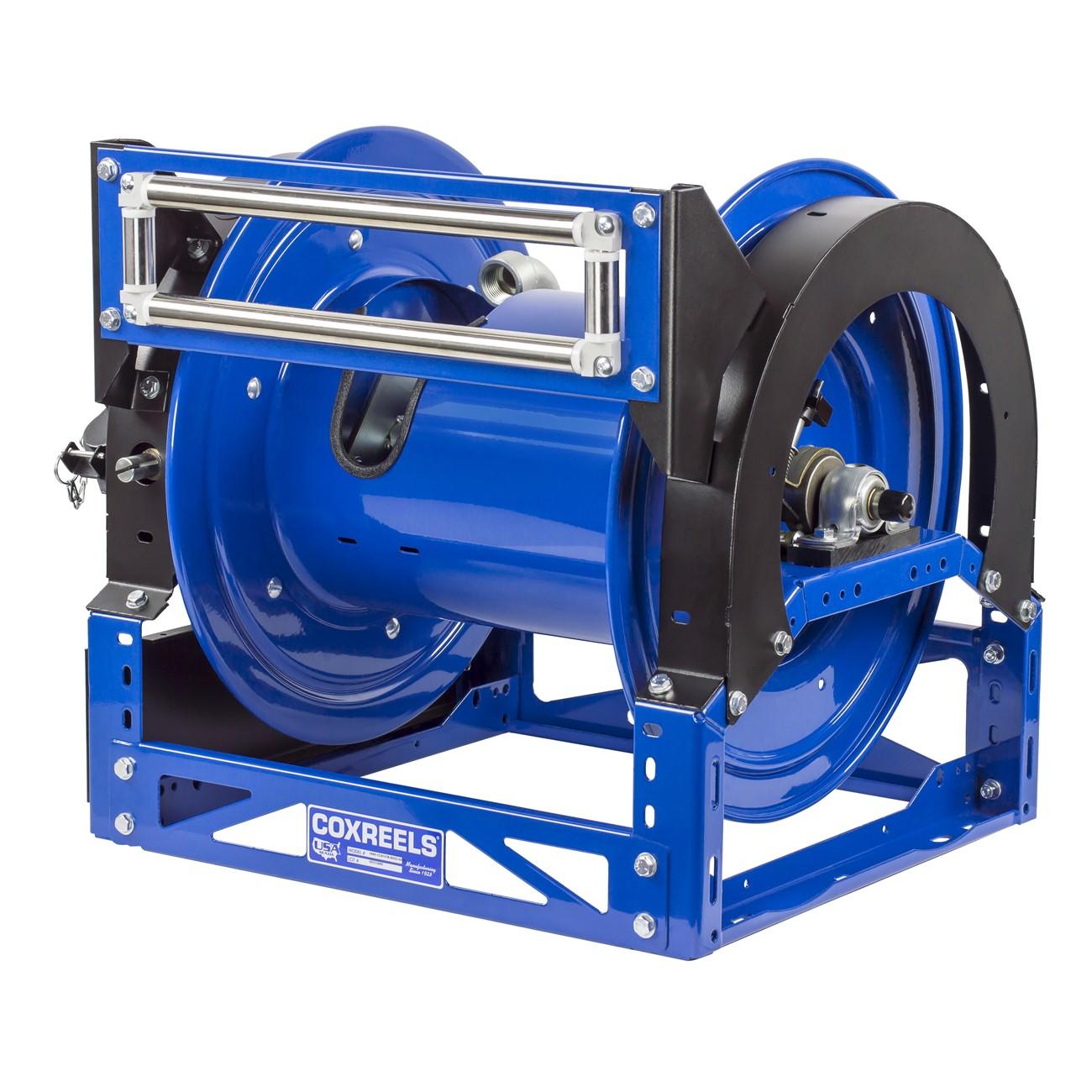

The COXREELS 1680-1120-ED is a heavy-duty, motor-driven hose reel from the 1600 Series, built for demanding industrial and commercial fluid transfer applications. It features a 1.5-inch inner diameter hose path with a 35-foot hose capacity, powered by a 12-volt DC, 0.5 HP explosion-proof reversible motor for controlled retrieval. The reel is constructed from 12-gauge CNC robotically welded steel and finished with a CPC powder coat for chip resistance and corrosion protection. Licensed trades and industrial maintenance crews install this reel where reliable, repeatable hose management under tough conditions is required.

The 1680-1120-ED is suited for industrial facilities, fleet maintenance shops, refineries, and similar environments where motor-assisted hose retrieval and explosion-proof electrical components are necessary. Its symmetric hybrid frame design accommodates a wide range of mounting orientations and optional accessories, making it adaptable to both new installations and retrofits. The open drum slot and low-profile outlet riser support flat, kink-free hose wrapping across the full 35-foot capacity, reducing wear and extending hose service life.

Key Features

• 12-volt DC, 0.5 HP explosion-proof reversible motor for powered hose retrieval
• 1.5-inch ID hose path with 35-foot capacity and low-profile outlet riser for non-crimping, flat hose wrap
• One-piece 12-gauge CNC robotically welded steel hybrid A-frame base for superior structural rigidity
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Nickel-plated steel inline NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service intervals
• Adjustable tension brake prevents free-wheeling; CPC powder coat finish with zinc-plated steel plumbing

Compatibility

Designed as an OEM-style replacement or new-installation hose reel for industrial and commercial fluid transfer systems requiring a 1.5-inch ID, 35-foot capacity motorized reel with explosion-proof drive.

Installation Notes

Installation should be performed by a qualified industrial mechanic or licensed electrician, as the 12-volt DC motor circuit must be properly wired and protected per applicable NEC requirements. Shut off all fluid supply and disconnect electrical power before mounting or servicing the reel. Verify that the mounting surface and fasteners are rated to support the reel weight of 91 pounds plus the loaded hose assembly. Do not operate the motor drive with the hose kinked or the drum obstructed.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Capacity: 35 feet
• Motor Voltage: 12 volts DC
• Motor Output: 0.5 HP
• Motor Type: Explosion-proof reversible
• Frame Material: 12-gauge steel, CNC robotically welded
• Finish: CPC powder coat with zinc-plated steel plumbing
• Bearings: Permanently lubricated self-aligning pillow block
• Weight: 91 pounds
• Series: 1600

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1680-1120-ED
