Coxreels 1660-2028 Hose Reel 1 Inch Id 350 Ft Steel

Product Description

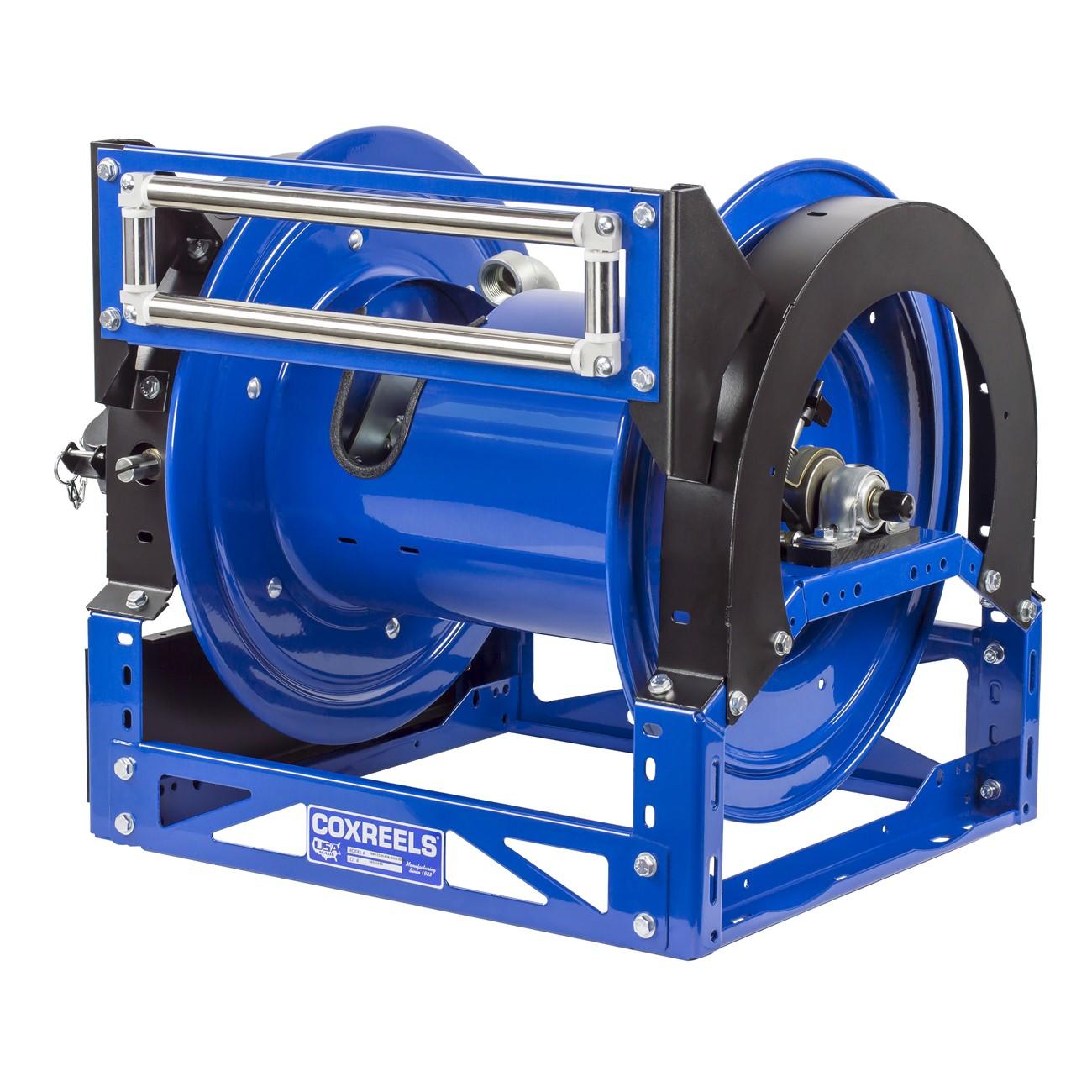

The COXREELS 1660-2028 is a heavy-duty hand crank hose reel from the 1600 Series, built for industrial and trade applications that demand reliable hose management across a wide range of service environments. The reel accepts 1-inch ID hose up to 350 feet in length and weighs 106 pounds, reflecting its robust steel construction. A CNC-robotically welded 12-gauge steel hybrid A-frame base provides structural rigidity without bolted joints. A nickel-plated steel NPT swivel enables full-flow performance and allows seal maintenance without removing the reel from its mount. Licensed contractors and industrial service technicians are the primary installers.

The 1660-2028 suits demanding applications in industrial facilities, fleet maintenance shops, contractor yards, and heavy commercial service environments where large hose capacities and durable mechanical retraction are required. The hand crank drive provides direct mechanical retraction, making it appropriate for locations where powered retraction is impractical or unnecessary. The symmetric reel design supports flexible mounting configurations, and the hybrid frame accommodates vertical side mounting as well as optional accessory upgrades for application-specific needs.

Key Features

• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping during wrap
• 12-gauge steel one-piece CNC-welded hybrid A-frame base for superior structural integrity
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• Adjustable tension brake prevents free-wheeling during payout
• CPC powder coat finish with zinc-plated steel plumbing for corrosion resistance

Compatibility

Designed to accommodate 1-inch ID hose up to 350 feet; part of the COXREELS 1600 Series platform, which supports a wide range of optional components and accessory configurations for varied industrial and trade applications.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial hose reel mounting practices. Depressurize and drain the hose and supply line completely before servicing or mounting the reel. Secure the reel to a structurally adequate surface using fasteners rated for the combined weight of the reel and fully loaded hose. Verify swivel connection torque and plumbing fittings are leak-free before returning the system to service.

Technical Specifications

• Hose ID: 1 inch
• Hose Capacity: 350 feet
• Frame Material: 12-gauge steel
• Retraction Type: Hand crank
Swivel Material: Nickel-plated steel
• Finish: CPC powder coat with zinc-plated steel plumbing
• Weight: 106 pounds
• Series: 1600

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1660-2028
