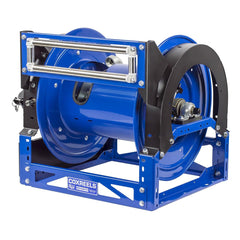

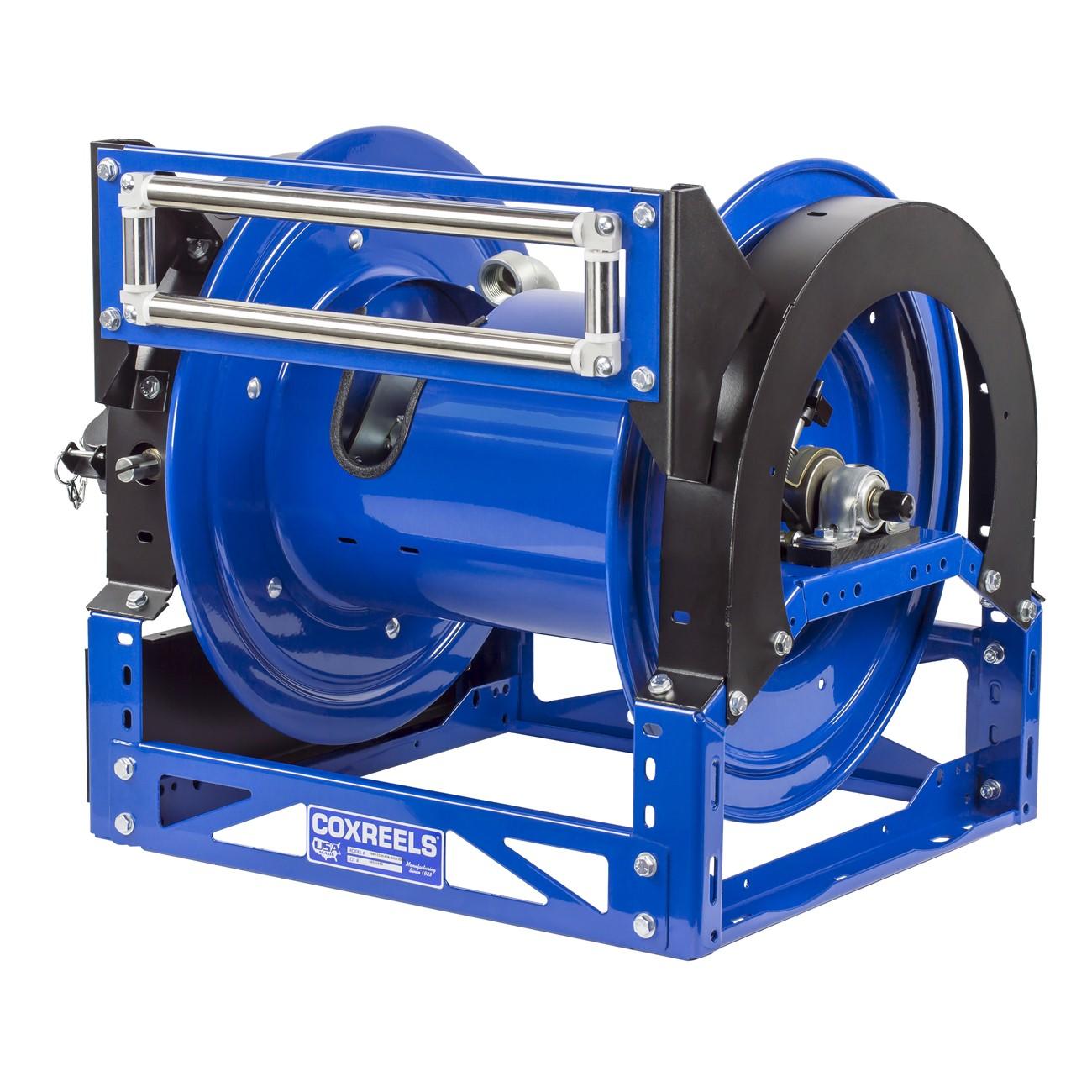

Coxreels 1660-2024 Hose Reel 1 in 200 Ft Steel

Product Description

The COXREELS 1660-2024 is a heavy-duty hand crank hose reel from the 1600 Series, built for industrial and trade applications where reliable fluid delivery and durable construction are non-negotiable. It accepts hose with a 1-inch inner diameter and is rated for up to 200 feet of hose capacity. The reel body is fabricated from 12-gauge steel using a one-piece CNC robotically welded hybrid A-frame base, combining structural rigidity with flexible mounting options. Nickel-plated steel NPT swivel fittings and permanently lubricated pillow block bearings round out the core mechanical assembly. Weighing 89 pounds, this reel is suited for fixed installation in demanding service environments.

The 1660-2024 fits a wide range of trade and industrial service scenarios including oil delivery, fluid transfer, pressure washing supply lines, and general maintenance operations. The symmetric reel design and adjustable tension brake make it appropriate for both high-cycle workshop use and lower-frequency field installations. The hand crank mechanism provides direct mechanical retraction without requiring power, making it a practical choice wherever electrical or air-driven retraction is unavailable or impractical. Installers working in automotive, industrial maintenance, agriculture, and similar trades will find the flexible frame mounting options accommodate wall, ceiling, and floor mounting configurations.

Key Features

• 1-inch ID hose inlet accommodates up to 200 feet of hose capacity
• One-piece CNC robotically welded 12-gauge steel hybrid A-frame base for superior structural rigidity
• Nickel-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• Adjustable tension brake prevents free-wheeling; direct hand crank enables easy mechanical retraction
• CPC powder coat finish provides chip resistance and rust inhibition; steel plumbing components are zinc-plated

Compatibility

Designed as an OEM-style replacement and direct-fit option within the COXREELS 1600 Series platform, compatible with 1-inch ID hose assemblies up to 200 feet in length across a wide range of fluid transfer and service reel applications.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial hose reel mounting practices. Shut off fluid supply and depressurize the line completely before connecting or disconnecting hose assemblies. Ensure the mounting surface and fastener hardware are rated for the combined weight of the reel and a fully loaded hose. Consult applicable facility and plumbing codes when integrating into a permanent fluid delivery system.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Capacity: 200 feet
• Frame Material: 12-gauge steel
• Retraction Type: Hand crank
• Swivel Material: Nickel-plated steel
• Finish: CPC powder coat with zinc-plated steel plumbing
• Weight: 89 pounds
• UPC: 674255856288

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1660-2024
