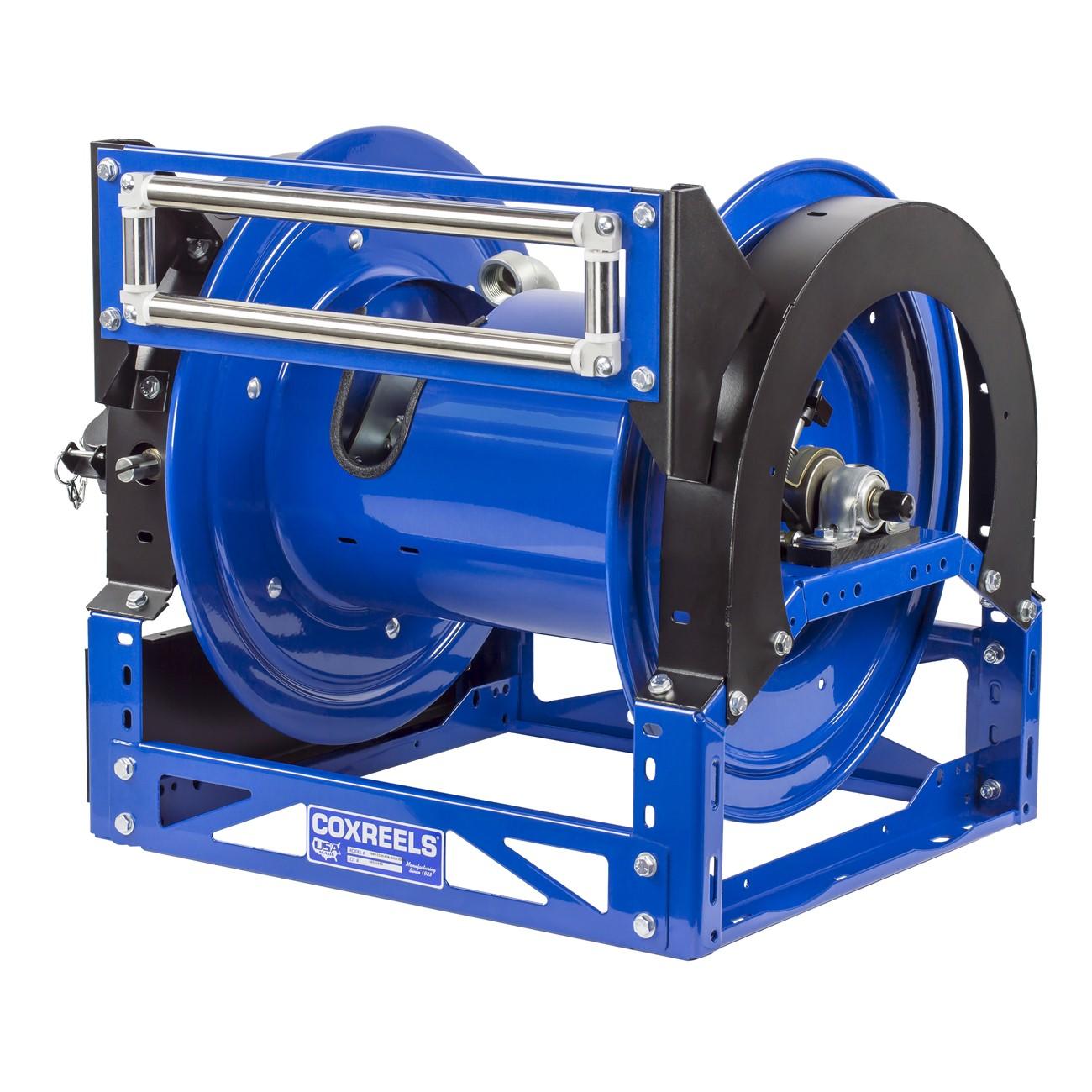

Coxreels 1660-2024-ED 1600 Series Hose Reel 12V Dc Motor

Product Description

The COXREELS 1660-2024-ED is a motor-driven hose reel from the 1600 Series, designed for industrial and trade applications that demand reliable, high-cycle hose management. Built on a one-piece CNC robotically welded 12-gauge steel hybrid A-frame base, this reel accepts a 1-inch inner diameter hose up to 200 feet in length. It is powered by a 12-volt DC, 1/2 HP explosion-proof reversible motor, making it suited for environments where ignition hazards are a concern. A nickel-plated steel 90-degree full-flow NPT swivel, permanently lubricated self-aligning pillow block bearings, and a chip-resistant CPC powder coat finish round out its core construction. Licensed contractors, industrial maintenance techs, and fleet service professionals are the primary installers.

The 1660-2024-ED is built for demanding service environments where consistent hose retrieval, operator safety, and corrosion resistance are priorities. Its hybrid frame design supports vertical-side mounting and accommodates a wide range of optional accessories, giving installers flexibility across various bay layouts and service configurations. The adjustable tension brake prevents free-wheeling during payout, and the exclusive low-profile outlet riser with an open drum slot promotes a flat, non-crimping hose wrap. This reel is appropriate for fluid transfer, wash-down, lubrication, and similar trade-service applications in automotive, industrial, or heavy-equipment settings.

Key Features

• 12V DC, 1/2 HP explosion-proof reversible motor for powered hose retrieval in hazardous-rated environments
• 1-inch ID hose inlet with 200-foot hose capacity
• One-piece CNC robotically welded 12-gauge steel hybrid A-frame base for rigid, bolt-free structure
• Nickel-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC spun and ribbed discs with rolled edges for hose protection and operator safety
• Permanently lubricated, self-aligning pillow block bearings and adjustable tension brake for smooth, controlled operation
• CPC powder coat finish with zinc-plated steel plumbing for long-term corrosion resistance

Compatibility

Designed as an OEM-style replacement or new-installation reel for industrial and trade hose management systems requiring a 1-inch ID, 200-foot capacity motor-driven reel on a steel frame platform.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid transfer systems and low-voltage DC electrical wiring. Disconnect and lock out all power and fluid supply lines before mounting or servicing the reel. Secure the A-frame base to a structurally adequate surface using hardware rated for the combined weight of the reel and loaded hose. Electrical connections for the 12V DC motor should conform to applicable NEC requirements for the installation environment, particularly where explosion-proof ratings are required.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Capacity: 200 feet
• Motor Voltage: 12 volts DC
• Motor Output: 1/2 HP
• Motor Type: Explosion-proof reversible
• Frame Material: 12-gauge steel, CNC robotically welded
• Finish: CPC powder coat with zinc-plated steel plumbing
• Swivel: Nickel-plated steel, 90-degree full-flow NPT
• Weight: 115 pounds
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1660-2024-ED
