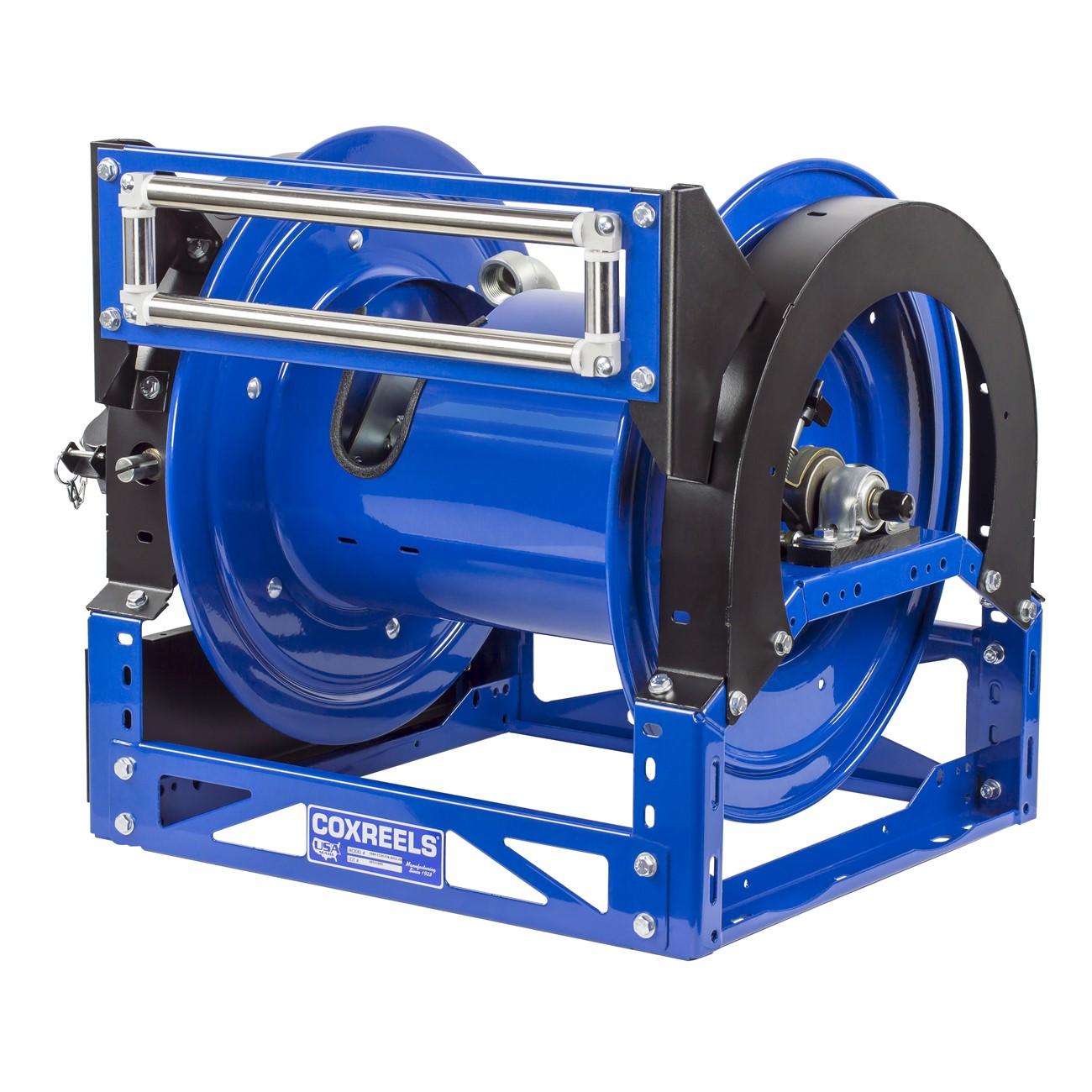

Coxreels 1660-1528 Hose Reel 1 in 250 Ft Steel Hand Crank

Product Description

The COXREELS 1660-1528 is a heavy-duty hand-crank hose reel from the 1600 Series, built for industrial and commercial applications that demand durability and flexible configuration. It accepts hose with a 1-inch inner diameter and holds up to 250 feet of hose. The reel weighs 96 pounds and is constructed with a steel frame. Retraction is handled manually via a direct hand crank. A nickel-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose connection without removing the reel from its mount. An adjustable tension brake prevents free-wheeling during payout.

The 1660-1528 is suited for contractors, service technicians, and facility maintenance professionals working in applications that require long hose runs with reliable retraction. The 1600 Series hybrid frame design accommodates a range of mounting orientations, making this reel appropriate for wall, ceiling, or floor installation in shops, service bays, and industrial facilities. The open drum slot and low-profile outlet riser support flat, non-crimping hose wrap across the full 250-foot capacity.

Key Features

• 1-inch ID hose inlet with nickel-plated steel 90-degree NPT full-flow swivel for maintenance access without dismounting
• CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Hybrid one-piece CNC robotically welded 12-gauge steel A-frame base provides rigid structure with vertical sides for versatile mounting
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• Low-profile outlet riser and open drum slot design prevents hose crimping and promotes flat, even wrap
• CPC powder coat finish with zinc-plated steel plumbing for corrosion and chip resistance
• Adjustable tension brake and direct hand crank for controlled mechanical retraction

Compatibility

Designed as an OEM-style replacement or direct-install reel for industrial and commercial hose management systems requiring a 1-inch ID inlet and up to 250 feet of hose capacity.

Installation Notes

Installation is typically performed by a qualified mechanical or industrial technician. Mount the reel to a structurally sound surface capable of supporting the reel weight plus the weight of the fully loaded hose. Shut off and depressurize the supply line before making any plumbing connections to the swivel inlet. Follow applicable OSHA and local safety codes for overhead or elevated reel mounting applications.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Capacity: 250 feet
• Frame Material: 12-gauge steel
• Retraction Type: Hand crank
• Swivel: Nickel-plated steel 90-degree full-flow NPT
• Finish: CPC powder coat with zinc-plated steel plumbing
• Weight: 96 pounds
• UPC: 674255857650

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1660-1528
