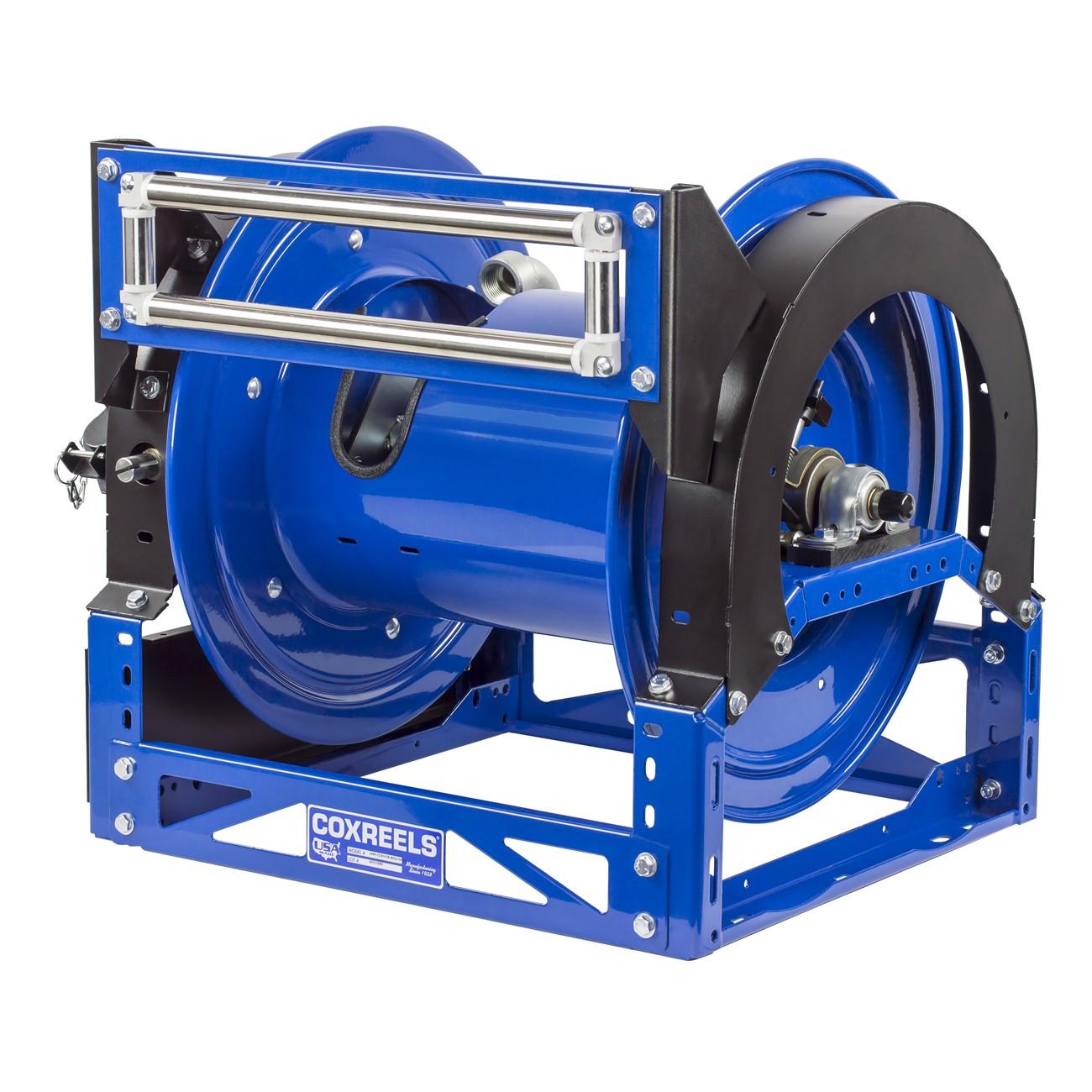

Coxreels 1660-1124-ED Hose Reel 1 in 100 Ft Steel 12V Dc Motor

Product Description

The COXREELS 1660-1124-ED is a heavy-duty motorized hose reel from the 1600 Series, designed for industrial and commercial fluid-transfer applications. It accepts 1-inch inside diameter hose up to 100 feet in length and is built on a CNC robotically welded 12-gauge steel hybrid A-frame base. Power comes from a 12-volt DC, 1/2 HP explosion-proof reversible motor, making this reel suited for mobile service units, wash bays, lube facilities, and other demanding environments. A nickel-plated steel NPT swivel and permanently lubricated pillow block bearings round out the core mechanical package. The unit weighs 99 pounds.

The 1660-1124-ED fits applications where a powered, self-retracting hose management solution is required. The explosion-proof motor classification makes it appropriate for environments where flammable vapors or dust may be present. Typical installations include fleet maintenance shops, fuel and oil dispensing stations, mobile lube trucks, and industrial service bays. The symmetric reel design and adjustable tension brake support both ceiling and wall mounting configurations, giving installers flexibility in tight or unconventional spaces.

Key Features

• 12V DC, 1/2 HP explosion-proof reversible motor for powered hose retrieval
• 1-inch ID hose inlet with capacity for up to 100 feet of hose
• CNC robotically welded 12-gauge steel hybrid A-frame base — one-piece construction, not bolted
• Nickel-plated steel 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Heavy-duty CNC spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth, low-maintenance rotation
• Adjustable tension brake prevents free-wheeling; CPC powder coat finish resists chips and rust

Compatibility

Designed as an OEM-style motorized hose reel for industrial and commercial fluid-delivery systems requiring 1-inch ID hose connections and 12V DC power supply.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial hose reel mounting practices. Before servicing or mounting, disconnect all electrical power and depressurize the hose and fluid supply line. Secure the frame to a structurally sound surface using hardware appropriate for the mounting orientation and load. Electrical connections to the 12V DC motor should comply with applicable NEC requirements and, where explosion-proof classification is required, follow the specific area-classification guidelines for the installation site.

Technical Specifications

• Hose Inside Diameter: 1 inch
• Hose Capacity: 100 feet
• Motor Voltage: 12 volts DC
• Motor Output: 1/2 HP
• Motor Type: Explosion-proof reversible
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Material: Nickel-plated steel
• Finish: CPC powder coat
• Weight: 99 pounds
• UPC: 674255856271

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1660-1124-ED
