Coxreels 1275WT-3-250-C Welding Hose Reel 3/8 in 250 Ft

Product Description

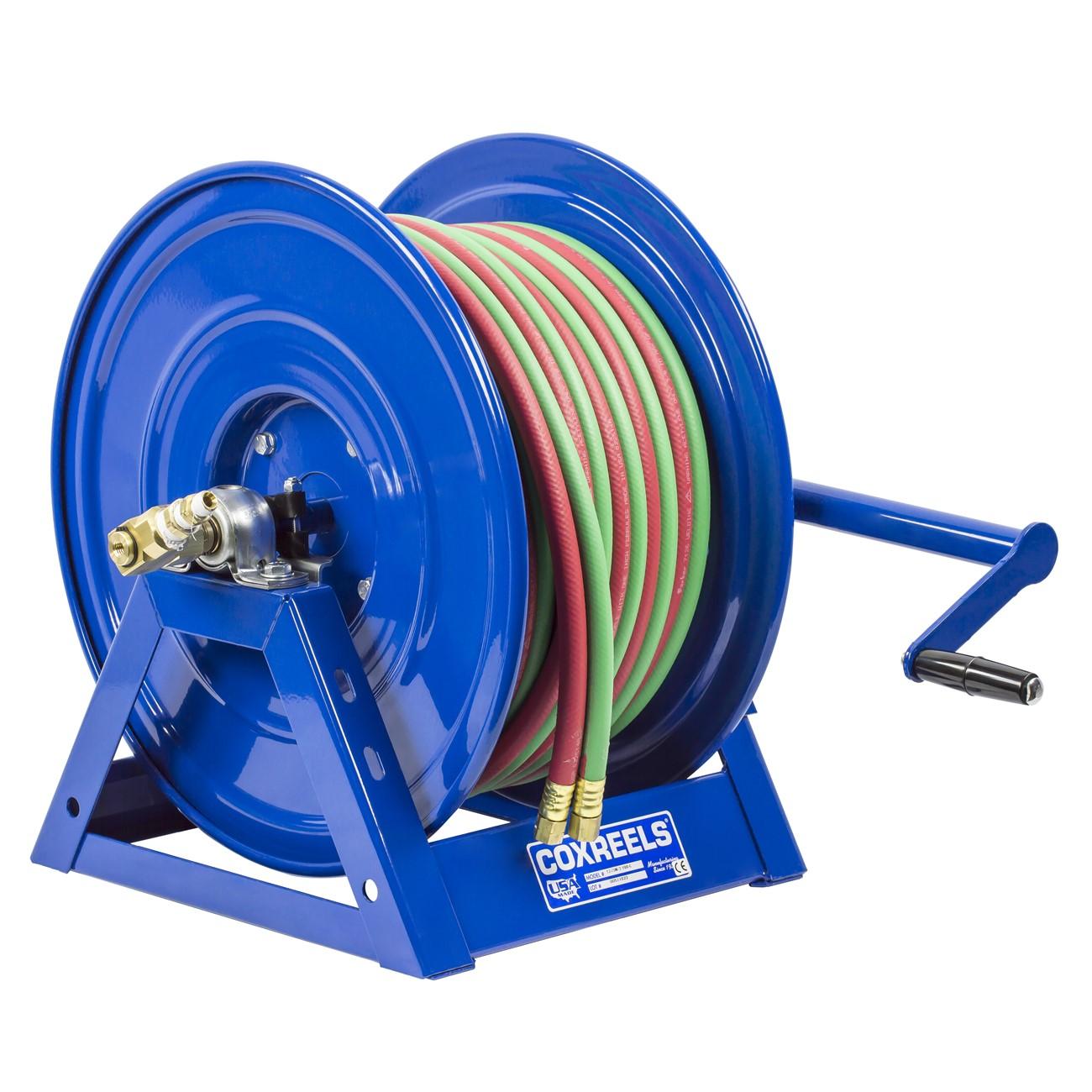

The COXREELS 1275WT-3-250-C is a heavy-duty welding hose reel from the 1275W Series, designed to manage long runs of twin-line welding hose in demanding shop and field environments. Built on a one-piece CNC robotically welded 12-gauge steel A-frame base, this reel features a direct bevel gear drive crank for mechanical retraction and a low-profile outlet riser with an open drum slot for a flat, non-crimping hose wrap. Dual brass swivel inlets — one on each side of the reel — deliver full-flow performance on both oxygen and fuel gas lines. Weighing 130 pounds and measuring 31 inches long by 21 inches wide by 21 inches tall, it is sized for fixed or semi-permanent mounting in welding bays or fabrication facilities. Licensed welding technicians and industrial maintenance professionals are the primary installers.

The 1275WT-3-250-C is built for industrial and commercial welding applications where twin-line hose lengths are substantial and reliable gas flow control is critical. The 3/8-inch ID capacity and 250-foot hose length rating make it well suited for large fabrication shops, shipyards, steel service centers, and similar high-demand environments where frequent reel use justifies a robust, gear-driven design. The adjustable tension brake prevents free-wheeling during payout, adding control in busy work areas.

Key Features

• Direct front bevel gear drive crank for controlled, easy mechanical hose retraction
• Dual 3/8-inch NPT 90-degree full-flow brass swivel inlets — one on each side — for simple seal maintenance and fast hose installation
• Low-profile outlet riser and open drum slot design prevents hose crimping and promotes flat, even wrap
• One-piece 12-gauge steel A-frame base, CNC robotically welded — not bolted — for superior structural rigidity
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish provides chip resistance and rust inhibition for extended reel life
• Adjustable tension brake controls free-wheeling during hose payout

Compatibility

Designed as an OEM-style replacement or direct-fit reel for industrial twin-line welding hose assemblies using 3/8-inch ID hose up to 250 feet in length; compatible with standard 3/8-inch NPT welding gas fittings.

Installation Notes

Installation is typically performed by qualified welding equipment technicians or industrial maintenance personnel. Shut off all gas supply valves and verify zero line pressure before mounting or connecting hose. The steel A-frame base includes a pre-drilled mounting pattern for secure attachment to floor, wall, or boom structures — follow applicable facility safety codes and manufacturer mounting guidelines. Do not exceed the rated hose length or operating pressure for the connected gas service.

Technical Specifications

• Hose ID: 3/8 inches
• Hose Capacity: 250 feet
• Inlet Connection: 3/8 inches NPT (dual brass swivel, one per side)
• Frame Material: 12-gauge steel, CNC robotically welded
• Finish: CPC powder coat
• Length: 31 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 130 pounds
• UPC: 674255830912

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275WT-3-250-C
