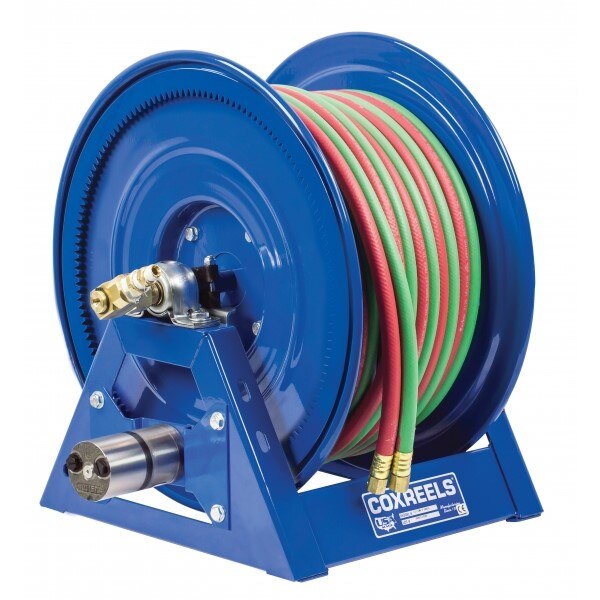

Coxreels 1275WL-3-350-A Welding Hose Reel 3/8 in 350 Ft

Product Description

The COXREELS 1275WL-3-350-A is a motorized welding hose reel from the 1275W Series, engineered to manage long runs of bulky twin-line welding hose. Built on a one-piece CNC robotically welded 12-gauge steel A-frame base, this reel features a direct bevel gear drive and a low-profile outlet riser with an open drum slot design that keeps hose wrap flat and kink-free. Dual brass swivel inlets — one on each side of the reel — provide full-flow, trouble-free performance and straightforward hose installation. An aluminum body 4-vane air motor drives the motorized rewind. At 72 pounds, the unit is a heavy-duty solution suited to professional welding and fabrication environments.

The 1275WL-3-350-A is sized for applications that require a 3/8-inch ID twin-line welding hose in lengths up to 350 feet. Its design serves industrial welding shops, mobile welding rigs, and fixed service bays where long hose runs are routine. The motorized configuration reduces operator fatigue in high-volume or high-frequency use settings. Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation across continuous daily use. The reel's mounting pattern is integrated into the steel base for straightforward installation and detachment.

Key Features

• Dual 3/8-inch NPT 90-degree full-flow brass swivel inlets — one on each side — simplify hose installation and allow Viton seal maintenance
• One-piece CNC robotically welded 12-gauge steel A-frame base provides superior structural rigidity without bolted joints
• Low-profile outlet riser and open drum slot design delivers a flat, non-crimping hose wrap over the full 350-foot capacity
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish resists chips and rust; aluminum body 4-vane air motor drives motorized rewind

Compatibility

Designed as an OEM-style replacement and direct-fit reel for twin-line welding hose applications requiring 3/8-inch ID hose connections and up to 350 feet of hose capacity.

Installation Notes

Installation should be performed by a qualified technician familiar with welding gas distribution systems and applicable safety codes. Shut off all gas supply and depressurize the hose assembly before mounting or connecting the reel. Secure the reel to a rigid surface using the integrated base mounting pattern, and verify all swivel inlet connections are leak-free before returning the system to service. Air motor supply lines should be connected and regulated per the motor manufacturer's requirements before operation.

Technical Specifications

• Hose ID: 3/8 inches
• Hose Capacity: 350 feet
• Inlet Connection: 3/8 inches NPT dual brass swivel (one per side)
• Drive Type: Motorized — aluminum body 4-vane air motor
• Frame Material: 12-gauge steel, CNC robotically welded A-frame
• Length: 37 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 72 pounds
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• UPC: 674255828452

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275WL-3-350-A
