Coxreels 1275WL-3-250-A Welding Hose Reel 3/8 in 250 Ft

Product Description

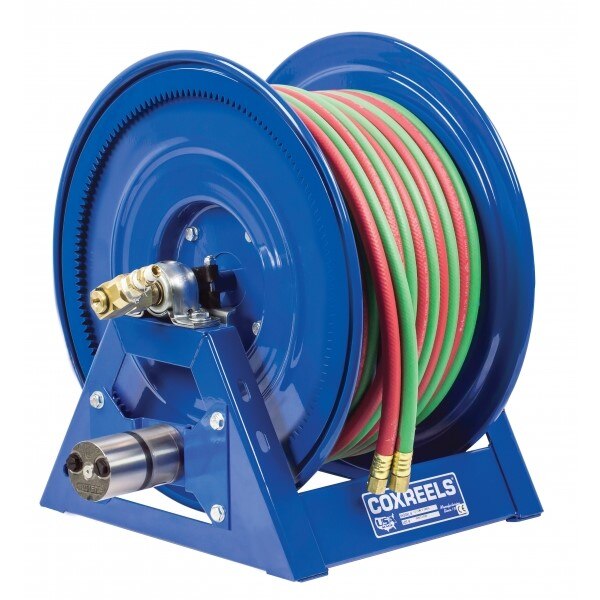

The COXREELS 1275WL-3-250-A is a motorized welding hose reel engineered to manage long runs of bulky twin-line welding hose in demanding shop and field environments. Built on the 1275W Series platform, it features a direct bevel gear drive, a low-profile outlet riser, and an open drum slot design that delivers a flat, non-crimping hose wrap. The reel accepts 3/8-inch ID twin-line welding hose up to 250 feet in length. Dual machined brass swivel inlets, one on each side of the reel, provide full-flow performance and straightforward hose installation. Weighing 134 pounds, this is a heavy-duty unit intended for permanent or semi-permanent installation by qualified welding or industrial service technicians.

The 1275WL-3-250-A is suited for industrial welding stations, fabrication shops, shipyards, and other facilities where long hose lengths and frequent retrieval cycles demand a robust, motorized solution. The aluminium-body, 4-vane air motor handles powered rewind, reducing operator fatigue on high-use installations. The open drum slot and low-profile riser make it practical in overhead, wall-mount, or floor-mount configurations where hose routing space is limited.

Key Features

• Direct bevel gear drive for smooth, reliable hose retrieval under load
• Dual 90-degree full-flow 3/8-inch NPT brass swivel inlets machined from solid brass with Viton seals for easy maintenance
• Low-profile outlet riser and open drum slot deliver a flat, non-crimping hose wrap over the full 250-foot capacity
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• One-piece all-welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy removal
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and extended service life
• CPC powder coat finish provides chip resistance and rust inhibition for long-term durability

Compatibility

Designed as an OEM-style replacement and direct-fit unit within the COXREELS 1275W Series, intended for twin-line welding hose applications requiring 3/8-inch ID connections and hose lengths up to 250 feet.

Installation Notes

Installation should be performed by a qualified technician familiar with welding gas distribution systems and applicable compressed gas safety codes. Shut off all gas supply valves and relieve hose pressure completely before mounting or connecting the reel. Ensure the mounting surface is rated to support the reel weight plus the weight of a fully loaded hose. Verify air motor supply pressure is within the manufacturer-specified range before operating the motorized rewind function.

Technical Specifications

• Hose ID: 3/8 inches
• Hose Capacity: 250 feet
• Inlet Connection: 3/8-inch NPT dual brass swivel (one per side)
• Drive Type: Air motor, aluminium body, 4-vane
• Frame Material: 12-gauge steel, CNC robotically welded A-frame
• Finish: CPC powder coat
• Length: 37 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 134 pounds
• UPC: 674255828445

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275WL-3-250-A
