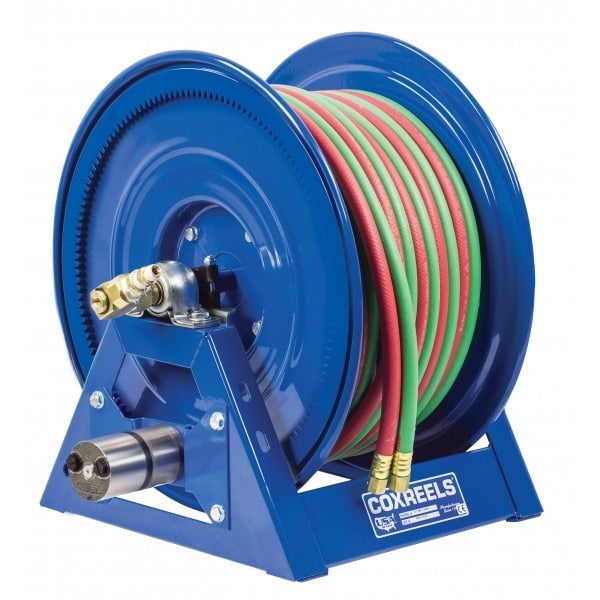

Coxreels 1275WL-3-100-A Welding Hose Reel 3/8 in 100 Ft

Product Description

The COXREELS 1275WL-3-100-A is a motorized welding hose reel from the 1275W Series, engineered to manage long runs of bulky twin line welding hose. It features a direct bevel gear drive, a low-profile outlet riser, and an open drum slot design that keeps hose wrap flat and kink-free. Dual 90-degree full-flow brass swivel inlets, one on each side of the reel, deliver consistent gas flow and allow straightforward hose installation. The reel is finished with a chip-resistant, rust-inhibiting CPC powder coat. An aluminum body 4-vane air motor drives the unit. Welding technicians and industrial maintenance crews are the primary installers.

The 1275WL-3-100-A is suited for welding and cutting applications that require managing extended lengths of twin line hose in shop, fabrication, or field service environments. The 3/8-inch ID hose capacity and 100-foot capacity make it a practical fit for large bays or production areas where hose storage and retrieval speed directly affect workflow. The low-profile riser and open drum slot minimize hose stress at the outlet, which is important when cycling heavy twin line hose repeatedly throughout a shift.

Key Features

• Dual machined solid brass 90-degree full-flow 3/8-inch NPT swivel inlets, one per side, with Viton seals for easy maintenance
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Low-profile outlet riser and open drum slot design eliminates kinking and ensures a flat, smooth hose wrap
• One-piece all-CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and removal
• Permanently lubricated, self-aligning pillow block bearings for smooth, low-maintenance rotation
• Aluminum body 4-vane air motor drive with CPC powder coat finish for long-term corrosion resistance

Compatibility

Designed as an OEM-style replacement or direct installation reel for applications requiring 3/8-inch ID twin line welding hose management with motorized retrieval in industrial or commercial welding environments.

Installation Notes

Installation should be performed by a qualified welding equipment technician or industrial maintenance professional. Shut off all gas supply lines and depressurize the hose system completely before connecting or disconnecting swivel inlets. Ensure the air motor supply line is isolated and de-energized before mounting or servicing the motor. Secure the reel to a structurally adequate surface using the mounting pattern in the steel base, following applicable facility and safety codes.

Technical Specifications

• Hose ID: 3/8 inches
• Hose Capacity: 100 feet
• Inlet Connection: 3/8 inches NPT dual brass swivel
• Drive Type: Air motor, aluminum body 4-vane
• Frame Material: 12-gauge steel, CNC welded A-frame
• Finish: CPC powder coat
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 53 pounds
• UPC: 674255828421

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275WL-3-100-A
