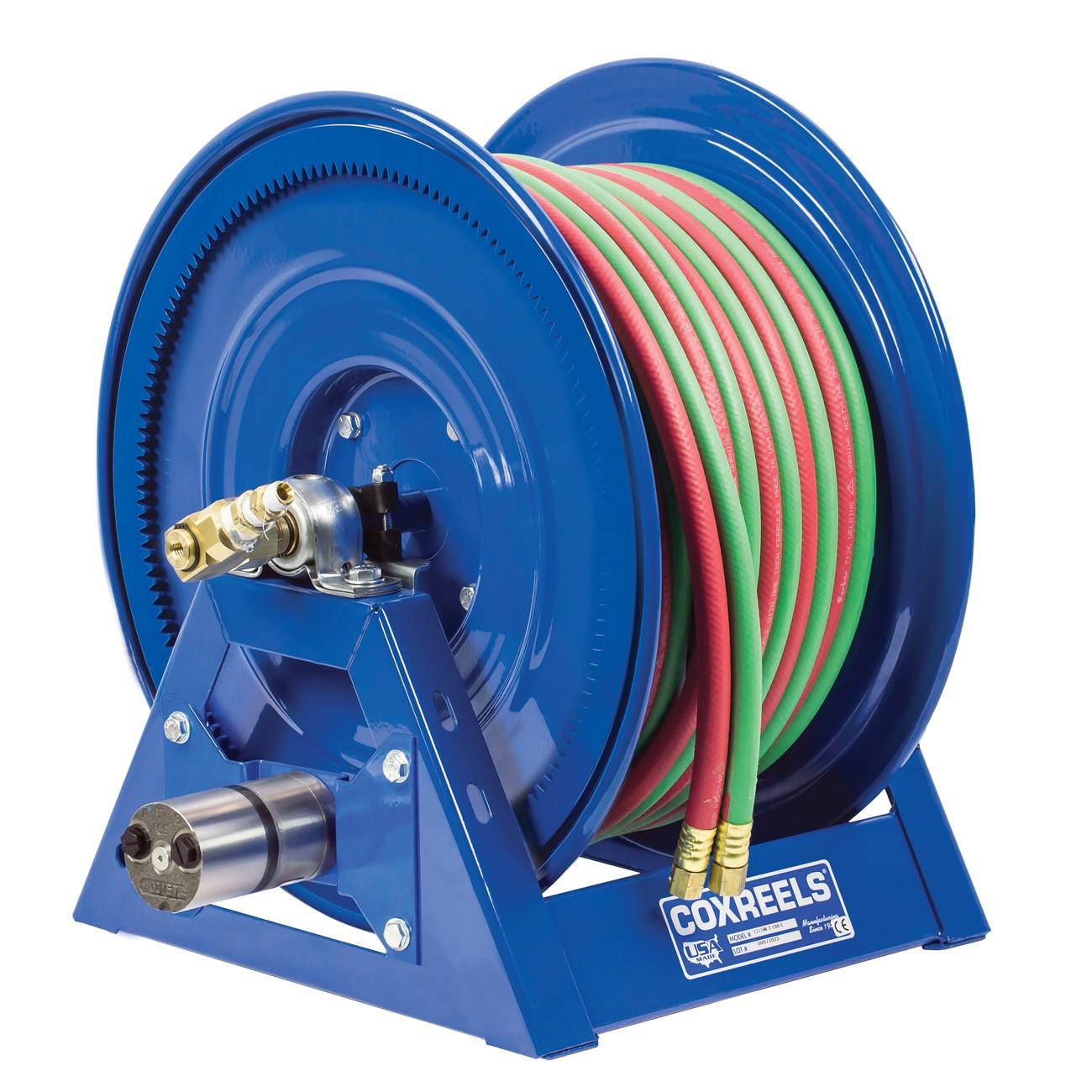

Coxreels 1275W-3-250-H Welding Hose Reel 3/8 in 250 Ft Motor

Product Description

The COXREELS 1275W-3-250-H is a heavy-duty motorized welding hose reel engineered to manage long runs of twin-line oxygen-acetylene hose. Built on a one-piece CNC robotically welded 12-gauge steel A-frame base, this reel uses a direct bevel gear drive to deliver smooth, consistent retrieval under demanding shop and field conditions. The drum measures 37 inches long by 21 inches wide by 21 inches tall and weighs 132 pounds fully assembled. Dual brass swivel inlets, permanently lubricated pillow block bearings, and a chip-resistant CPC powder coat finish make it a reliable long-service component for professional welding operations.

The 1275W-3-250-H is designed for applications requiring management of up to 250 feet of 3/8-inch ID twin-line welding hose. It is well suited to production welding shops, fabrication facilities, shipyards, and industrial maintenance environments where hose length and bulk make manual handling impractical. The hydraulic motor drive and low-profile outlet riser support high-cycle use in fixed or mobile mounting configurations. Installation contractors and maintenance mechanics working with oxygen-acetylene systems will find the open drum slot and A-frame base mounting pattern straightforward to work with.

Key Features

• Hydraulic motor drive with direct bevel gear for powered hose retrieval
• Dual 3/8-inch NPT machined brass 90-degree full-flow swivels, one on each side, with Viton seals for easy maintenance
• Low-profile outlet riser and open drum slot design prevents hose crimping and promotes flat, smooth wrap
• One-piece 12-gauge steel A-frame base, fully CNC robotically welded — not bolted — for superior structural rigidity
• Permanently lubricated self-aligning pillow block bearings for smooth rotation and long service life
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• CPC powder coat finish resists chips and rust for extended service in harsh environments

Compatibility

Designed for use with 3/8-inch ID twin-line oxygen-acetylene welding hose up to 250 feet in length. Intended as a direct OEM-configuration reel for professional welding gas distribution systems requiring motorized retrieval.

Installation Notes

Installation should be performed by a qualified mechanic or pipefitter familiar with welding gas systems and applicable codes. Shut off all gas supply valves and relieve line pressure before connecting or disconnecting hose swivel fittings. Secure the reel to a structurally adequate surface using the mounting pattern in the A-frame base, following applicable facility and OSHA requirements for compressed gas hose management. Do not operate the hydraulic motor without confirming that the hydraulic supply circuit is correctly rated and connected.

Technical Specifications

• Hose Inner Diameter: 3/8 inches
• Hose Capacity: 250 feet
• Inlet Connection: 3/8 inches NPT dual brass swivel
• Drive Type: Hydraulic motor with direct bevel gear
• Frame Material: 12-gauge steel, CNC robotically welded
• Length: 37 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 132 pounds
• Finish: CPC powder coat
• UPC: 674255849808

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275W-3-250-H
