Coxreels 1275W-3-250-C Welding Hose Reel 3/8 in 250 Ft

Product Description

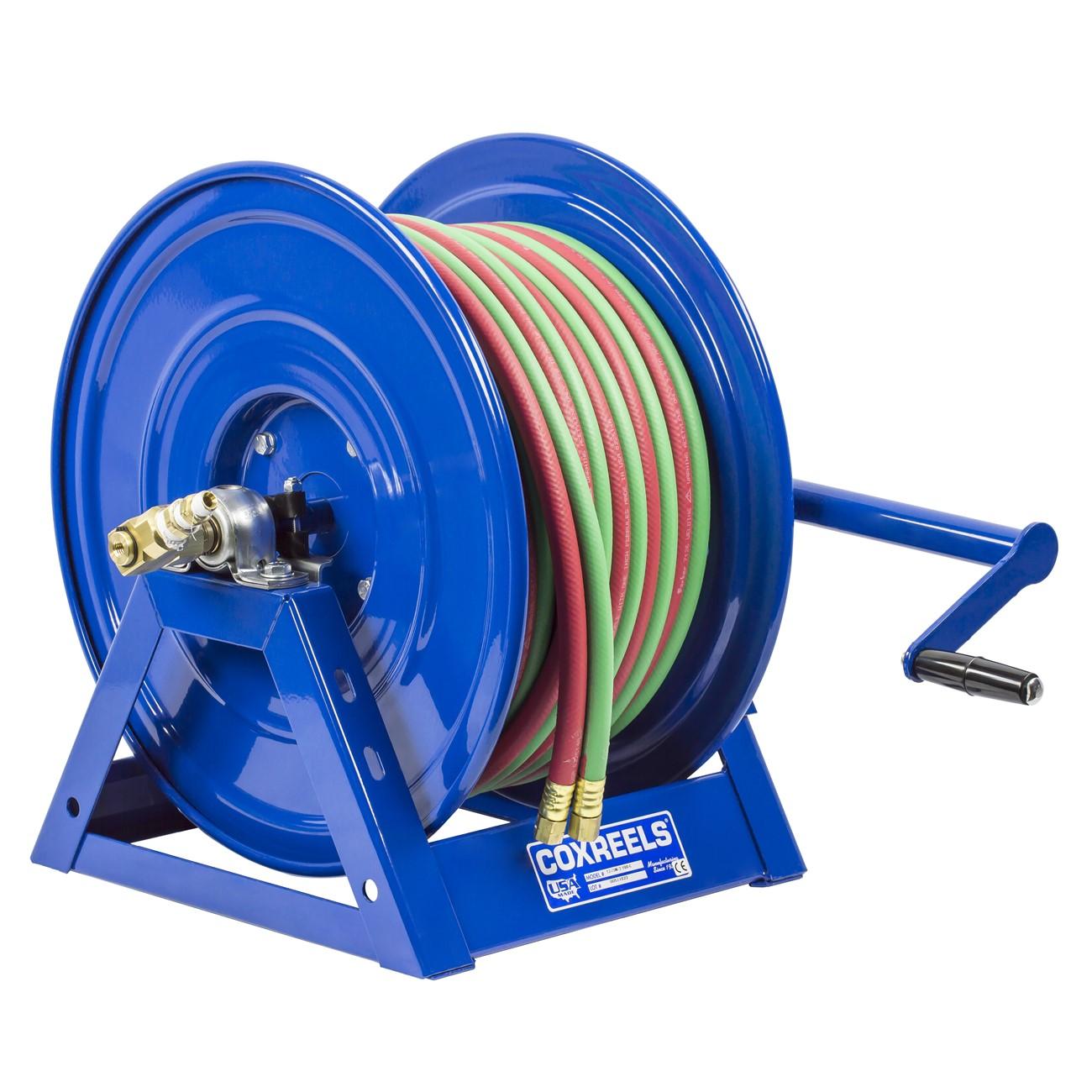

The COXREELS 1275W-3-250-C is a heavy-duty hand crank welding hose reel designed to manage long, bulky twin-line welding hose on the job. Built around a direct bevel gear drive and a low-profile outlet riser with an open drum slot, it delivers a non-crimping, flat hose wrap that extends hose life and reduces kinking. Dual machined brass swivel inlets — one on each side of the reel — provide full-flow, trouble-free performance with 3/8-inch NPT connections. At 126 pounds and measuring 31 inches long by 21 inches wide by 21 inches tall, this reel is sized for demanding shop or field welding stations where reliability and hose capacity matter.

The 1275W-3-250-C is suited for industrial and commercial welding environments where oxygen-acetylene or other twin-line welding gases are distributed via 3/8-inch ID hose up to 250 feet in length. It is a common choice for fabrication shops, maintenance facilities, and field welding operations that require organized, high-capacity hose management. The hand crank configuration with bevel gear drive provides smooth mechanical retraction without requiring a power source.

Key Features

• Dual 90-degree full-flow 3/8-inch NPT machined brass swivel inlets with Viton seals for easy maintenance and hose installation
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Low-profile outlet riser and open drum slot design prevents hose crimping and promotes flat, even wrapping
• One-piece CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy removal
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish provides chip resistance and rust inhibition; adjustable tension brake prevents free-wheeling

Compatibility

Designed for use with 3/8-inch ID twin-line oxygen-acetylene welding hose up to 250 feet in length as part of the COXREELS 1275W Series welding hose reel line.

Installation Notes

Installation is typically performed by a qualified technician or pipefitter familiar with compressed gas distribution systems. Shut off all gas supply valves and relieve line pressure before connecting or disconnecting hose fittings. Secure the A-frame base to a stable mounting surface using the integrated mounting pattern and appropriate fasteners. Follow applicable local codes and OSHA compressed gas handling requirements throughout installation and service.

Technical Specifications

• Hose Inner Diameter: 3/8 inches
• Hose Capacity: 250 ft
• Inlet Connection: 3/8 inches NPT dual brass swivel
• Retraction Method: Hand crank with front bevel gear drive
• Frame Material: 12-gauge steel, CNC robotically welded
• Finish: CPC powder coat
• Length: 31 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 126 pounds
• UPC: 674255825216

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275W-3-250-C
