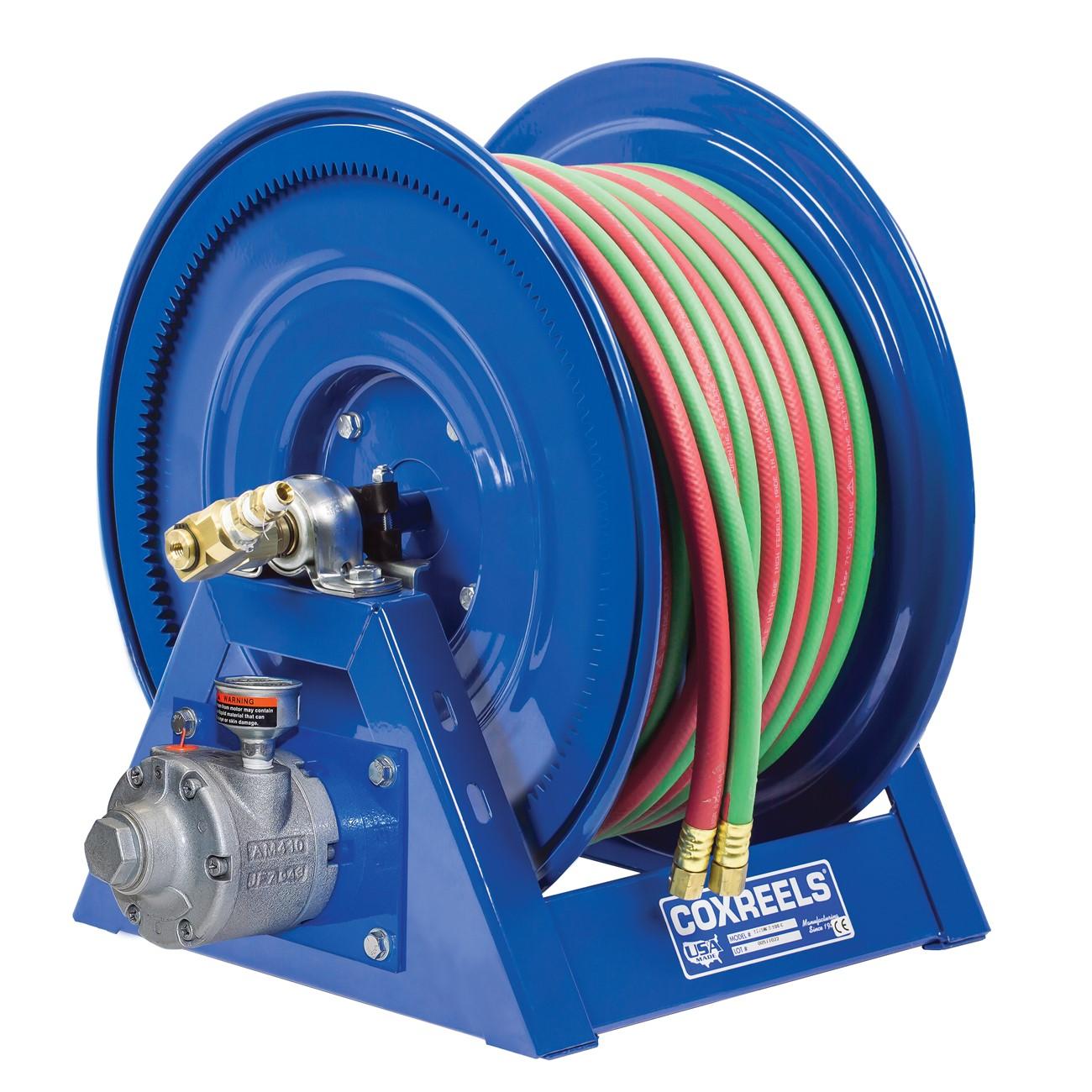

Coxreels 1275W-3-250-A Welding Hose Reel 3/8 in 250 Ft

Product Description

The COXREELS 1275W-3-250-A is a motorized welding hose reel designed to manage long runs of bulky twin-line welding hose in demanding shop and field environments. Built on a heavy-gauge steel A-frame base, it uses a direct bevel gear drive and a low-profile outlet riser with an open drum slot to deliver a flat, non-crimping hose wrap. Dual brass swivel inlets — one on each side of the reel — provide full-flow, trouble-free performance. The reel ships as a single unit weighing 134 pounds and measures 37 inches long by 21 inches wide by 21 inches tall. Licensed HVAC, welding, and industrial service technicians rely on this reel for high-cycle, high-volume hose management.

The 1275W-3-250-A is suited for oxygen-acetylene welding applications requiring 3/8 inch ID twin-line hose capacity up to 250 feet. It fits stationary shop installations, maintenance bays, and industrial service environments where repeated hose deployment and retraction under motor power is required. The motorized configuration — driven by a 4-vane aluminum body air motor — reduces operator fatigue during high-frequency use. The reel base includes a bolt-down mounting pattern for secure, permanent installation on floors, platforms, or fabricated stands.

Key Features

• Direct bevel gear drive delivers smooth, reliable hose retrieval under load
• Dual machined solid-brass 90-degree full-flow 3/8 inch NPT swivel inlets with Viton seals for easy maintenance and hose installation
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• One-piece CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern — no bolted joints
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish resists chipping and rust for extended service in harsh environments
• 4-vane aluminum body air motor for motorized hose retrieval

Compatibility

Designed as an OEM-style replacement or direct-fit reel for oxygen-acetylene and welding gas hose systems using 3/8 inch ID twin-line hose up to 250 feet in length.

Installation Notes

Installation should be performed by a qualified technician familiar with welding gas distribution systems and applicable safety codes. Shut off all gas supply and bleed hose pressure completely before mounting or connecting the reel. Secure the A-frame base to a rigid, level surface using the integrated mounting pattern and appropriately rated fasteners. Verify all swivel inlet connections are leak-free with an approved leak-detection solution before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Capacity: 250 feet
• Drive Type: Motorized — 4-vane aluminum body air motor
• Swivel Inlet Size: 3/8 inch NPT
• Swivel Material: Solid brass with Viton seals
• Frame Material: 12-gauge steel
• Finish: CPC powder coat
• Length: 37 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 134 pounds
• UOM: Each
• UPC: 674255828483

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275W-3-250-A
