Coxreels 1275W-3-100-H Welding Hose Reel 3/8 in 100 Ft Motor

Product Description

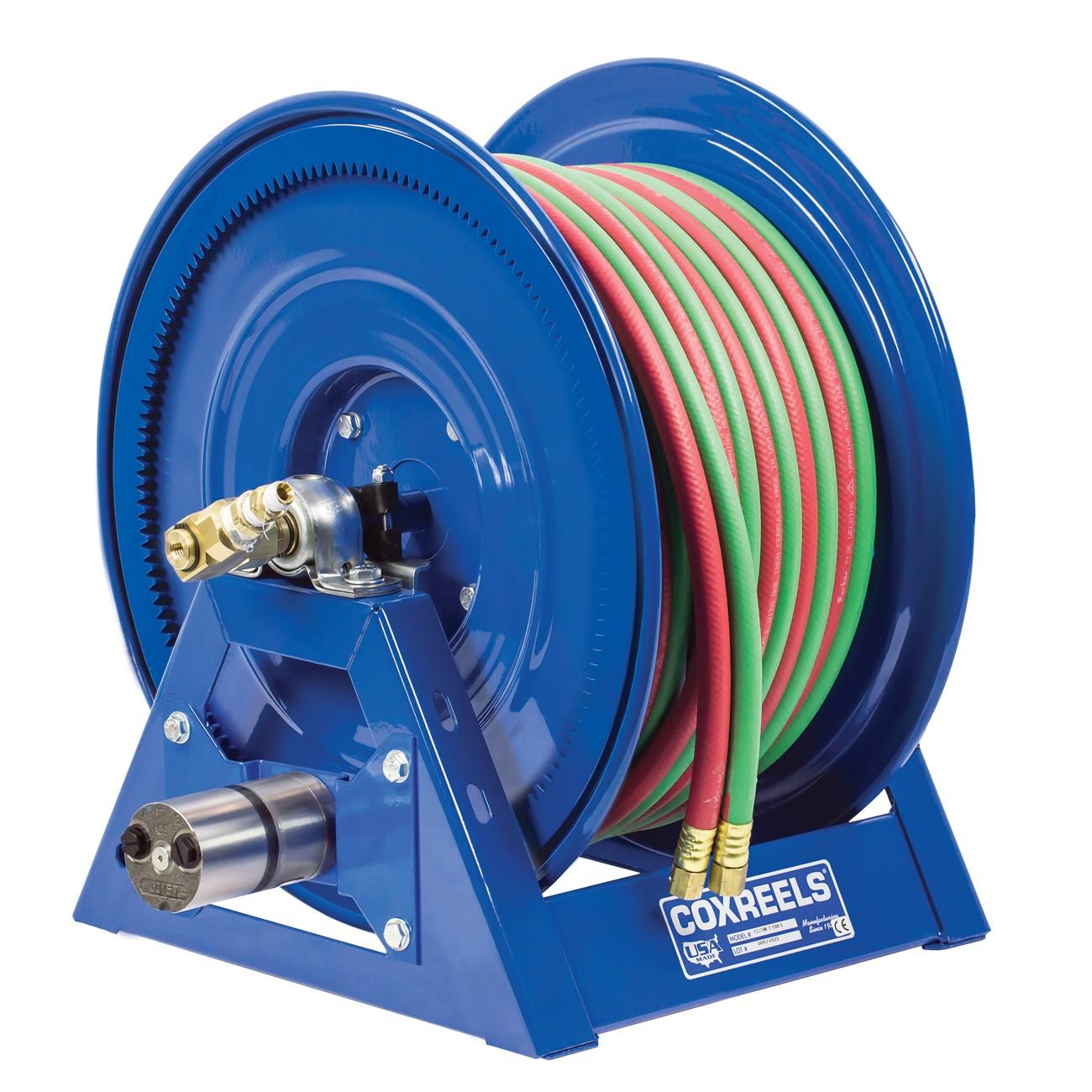

The COXREELS 1275W-3-100-H is a heavy-duty motorized welding hose reel designed to manage long runs of twin-line oxygen-acetylene welding hose. Built on a one-piece CNC robotically welded 12-gauge steel A-frame base, this reel features a direct bevel gear drive, low-profile outlet riser, and open drum slot design that delivers a flat, non-crimping hose wrap. Dual brass 90-degree full-flow 3/8-inch NPT swivel inlets — one on each side — provide unrestricted flow and straightforward maintenance. The unit ships at 79 pounds and measures 25.5 inches long by 22 inches wide by 22 inches tall. It is installed and serviced by welding equipment technicians and industrial maintenance professionals.

The 1275W-3-100-H is suited for shop floors, fabrication facilities, and industrial maintenance environments where 100 feet of 3/8-inch ID twin-line welding hose must be stored, dispensed, and retracted reliably. The hydraulic motor drive makes it appropriate for high-cycle applications where manual hand-cranking is impractical. The open drum slot and ribbed CNC-spun steel discs with rolled edges allow the hose to lay flat and protect it from abrasion during repeated use.

Key Features

• Dual machined solid-brass 90-degree full-flow 3/8-inch NPT swivel inlets, one on each side, with Viton seals for easy maintenance and fast hose installation
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and hose protection
• Exclusive low-profile outlet riser and open drum slot design for a non-crimping, flat smooth hose wrap
• One-piece CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy detachment
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish for chip resistance and rust inhibition in demanding shop environments

Compatibility

Designed for use with 3/8-inch ID twin-line oxygen-acetylene welding hose up to 100 feet in length. Part of the COXREELS 1275W Series of hand crank and motorized welding hose reels.

Installation Notes

Installation is typically performed by qualified welding equipment technicians or industrial maintenance personnel. Shut off all gas supply valves and depressurize the hose lines completely before connecting or disconnecting hose fittings. Secure the A-frame base to a stable mounting surface using the integrated mounting pattern prior to connecting the hydraulic motor supply lines. Verify all swivel connections are leak-free under working pressure before returning the system to service.

Technical Specifications

• Hose ID: 3/8 inch
• Hose Capacity: 100 feet
• Drive Type: Hydraulic motor
• Swivel Inlet: Dual 3/8-inch NPT brass, 90-degree full-flow with Viton seals
• Frame Material: 12-gauge steel, CNC robotically welded
• Finish: CPC powder coat
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 79 pounds
• UPC: 674255849860

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275W-3-100-H
