Coxreels 1275W-3-100-C Welding Hose Reel 3/8 in 100 Ft

Product Description

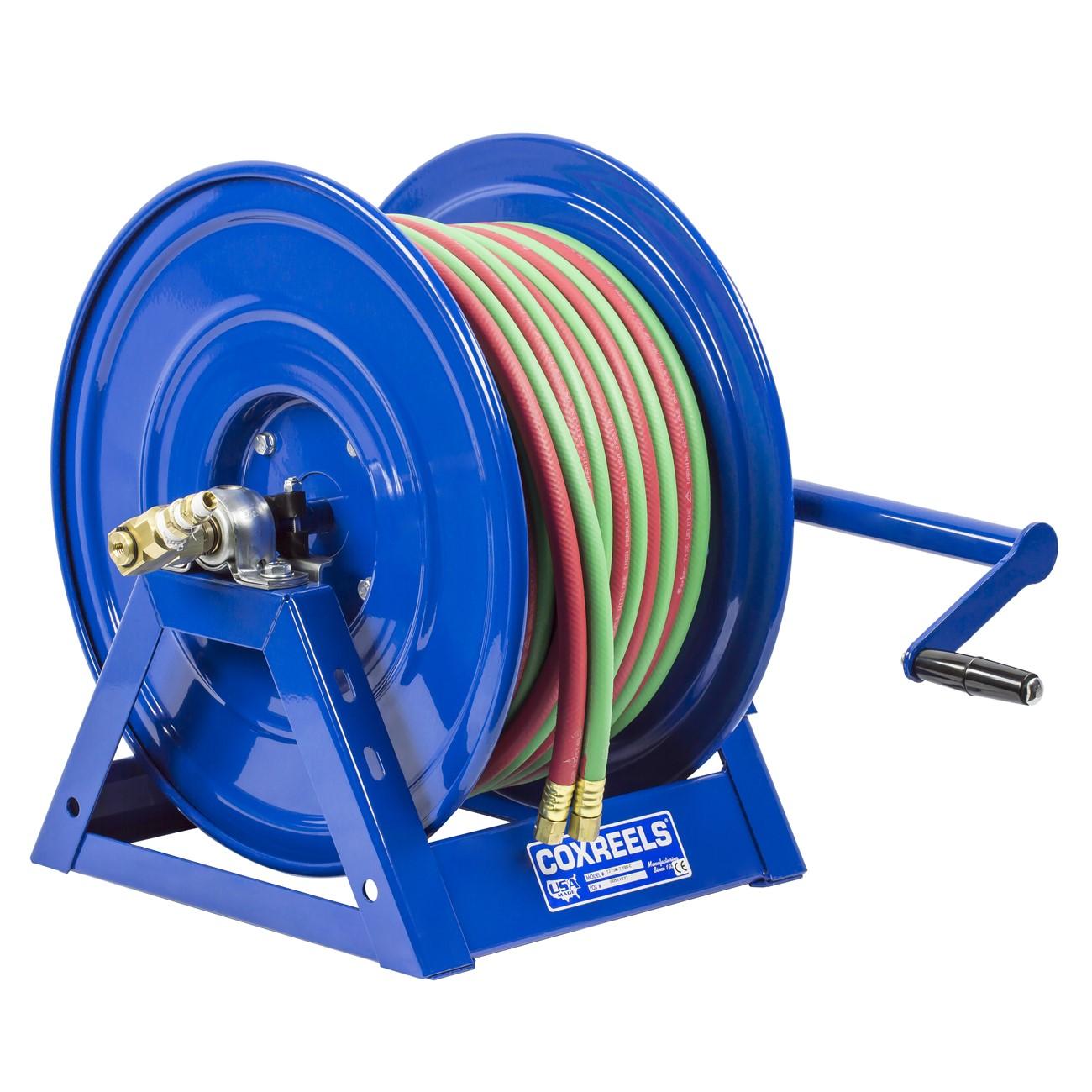

The COXREELS 1275W-3-100-C is a heavy-duty hand crank welding hose reel designed to manage long runs of twin-line welding hose in demanding shop and field environments. Built on the 1275W Series platform, it features a direct bevel gear drive crank mechanism for controlled, low-effort mechanical retraction. Dual brass swivel inlets — one on each side of the reel — provide full-flow, trouble-free performance at 3/8 inch NPT connections. The open drum slot and low-profile outlet riser keep hose wrap flat and crimp-free. At 73 pounds, this is a fixed-mount unit intended for permanent or semi-permanent installation by welding professionals and industrial maintenance technicians.

This reel is suited for oxygen-acetylene and similar twin-line welding gas applications in fabrication shops, maintenance bays, and industrial facilities. The 3/8 inch inner diameter capacity and 100-foot hose length rating make it appropriate for larger work areas where extended hose reach is required. Hand crank operation gives the user direct mechanical control over retrieval without relying on a power source. The 1275W Series is also available in motorized configurations for high-frequency retrieval environments.

Key Features

• Dual machined solid brass 90-degree full-flow 3/8 inch NPT swivel inlets with Viton seals for simple maintenance and fast hose installation
• CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• Low-profile outlet riser and open drum slot design eliminate hose crimping and promote flat, smooth hose wrap
• One-piece CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy removal
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish resists chips and rust; adjustable tension brake prevents free-wheeling during payout

Compatibility

Designed for use with oxygen-acetylene twin-line welding hose with a 3/8 inch inner diameter, up to 100 feet in length. Consult the 1275W Series specifications for hose weight and diameter limitations before mounting alternate hose assemblies.

Installation Notes

Installation is performed by qualified welding equipment technicians or industrial maintenance personnel. Shut off all gas supply valves and depressurize the hose assembly completely before connecting or disconnecting swivel inlets. Secure the A-frame base to a structurally sound surface using hardware appropriate for the mounting substrate, following all applicable facility and safety codes. Do not exceed the rated hose length or diameter for this reel model.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Maximum Hose Length: 100 feet
• Inlet Connection: 3/8 inch NPT dual brass swivel
• Swivel Seal Material: Viton
• Frame Material: 12-gauge steel, CNC robotically welded
• Drive Type: Front bevel gear hand crank
• Finish: CPC powder coat
• Length: 19.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 73 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275W-3-100-C
