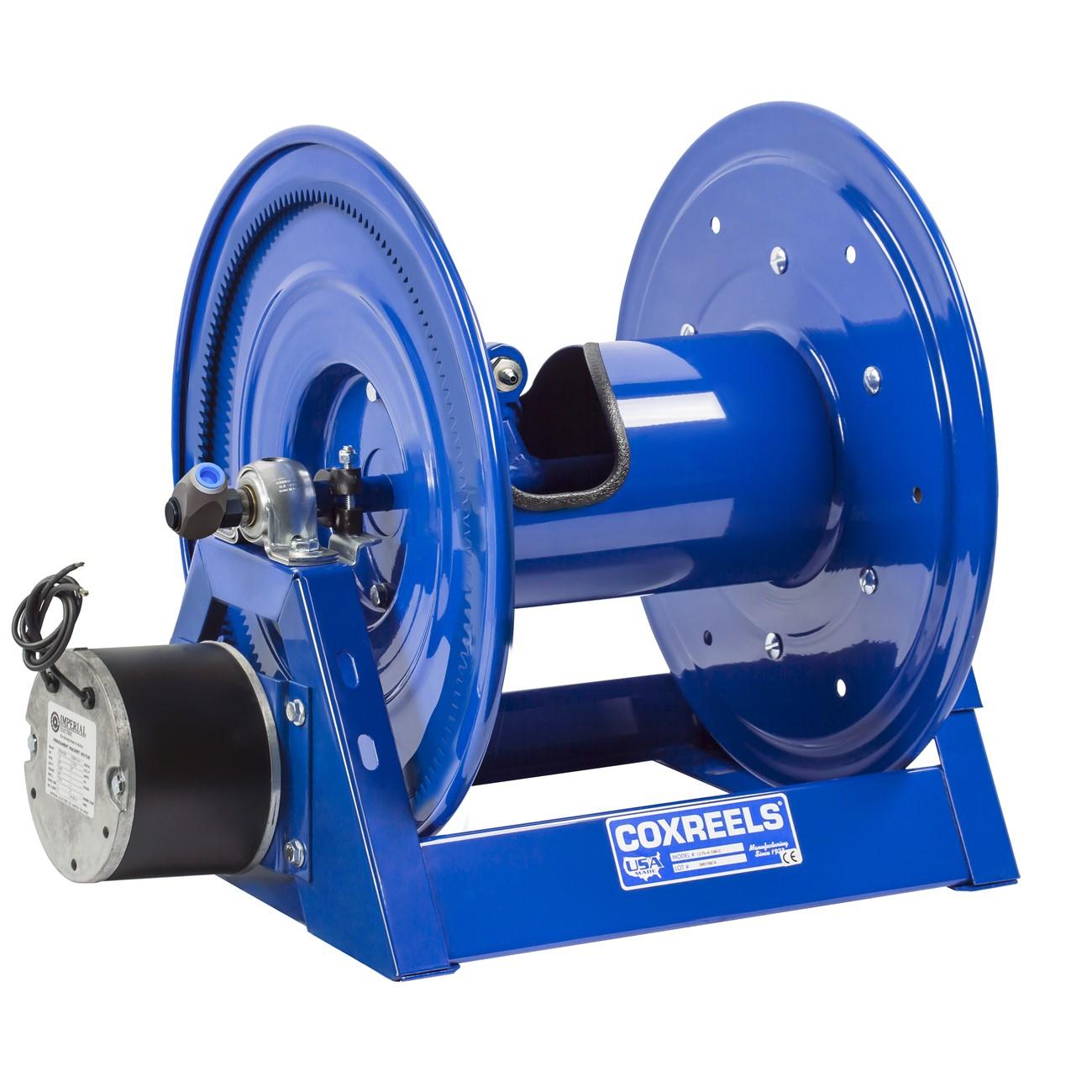

Coxreels 1275HPL-B-8-E Dual Hydraulic Hose Reel 135 Ft

Product Description

The COXREELS 1275HPL-B-8-E is a motorized dual hydraulic hose reel built for high-pressure hydraulic applications in demanding service environments. Rated for use with dual hydraulic lines, this reel features a 12V DC, 1/3 HP reversible electric motor and is designed to handle hose routing for hydraulic rescue tools and other high-pressure hydraulic equipment. The reel accepts 1/4 inch ID, 1/2 inch OD hose up to 135 feet in length. The frame is constructed from 12 gauge steel, CNC robotically welded in a one-piece A-frame configuration, and finished with a CPC powder coat for chip resistance and rust inhibition. Licensed HVAC and hydraulic service technicians as well as industrial maintenance crews are the primary installers.

This reel is suited for dual hydraulic system applications including emergency rescue operations and high-pressure hydraulic tool circuits. The low-profile outlet riser uses a -5 JIC male fitting with a 1/2 inch by 3/8 inch reducer, and the open drum slot design promotes a non-crimping, flat hose wrap. Two 90-degree full-flow melanized steel 1/4 inch swivel connections support the dual hydraulic configuration. The 1275HP Series is designed for installations where hose management, operator safety, and pressure integrity are all critical requirements.

Key Features

• 12V DC, 1/3 HP reversible electric motor for powered hose retraction
• Two 90-degree high-pressure full-flow melanized steel 1/4 inch swivel connections for dual hydraulic circuits
• One-piece CNC robotically welded 12 gauge steel A-frame base — no bolted joints — with integrated mounting pattern
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Low-profile -5 JIC male outlet riser with 1/2 inch by 3/8 inch reducer and open drum slot for non-crimping hose wrap
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation
• CPC powder coat finish resists chipping and rust

Compatibility

Designed as an OEM-style replacement or direct-fit reel for dual hydraulic tool and rescue system applications in the COXREELS 1275HP Series. Accepts 1/4 inch ID, 1/2 inch OD hydraulic hose up to 135 feet.

Installation Notes

Installation should be performed by qualified hydraulic or industrial service technicians familiar with high-pressure hose reel systems. Depressurize all hydraulic circuits completely before connecting or disconnecting hose lines. Secure the A-frame base to a rigid mounting surface using the integrated base mounting pattern prior to routing hose. Verify that the 12V DC power supply is disconnected before wiring the electric motor drive.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 1/2 inch
• Hose Capacity: 135 feet
• Motor: 12V DC, 1/3 HP reversible electric
• Swivel Type: Two 90-degree full-flow melanized steel 1/4 inch high-pressure swivels
• Outlet Riser Fitting: -5 JIC male with 1/2 inch by 3/8 inch reducer
• Frame Material: 12 gauge CNC robotically welded steel
• Finish: CPC powder coat
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 68 pounds
• UPC: 674255850378

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275HPL-B-8-E
