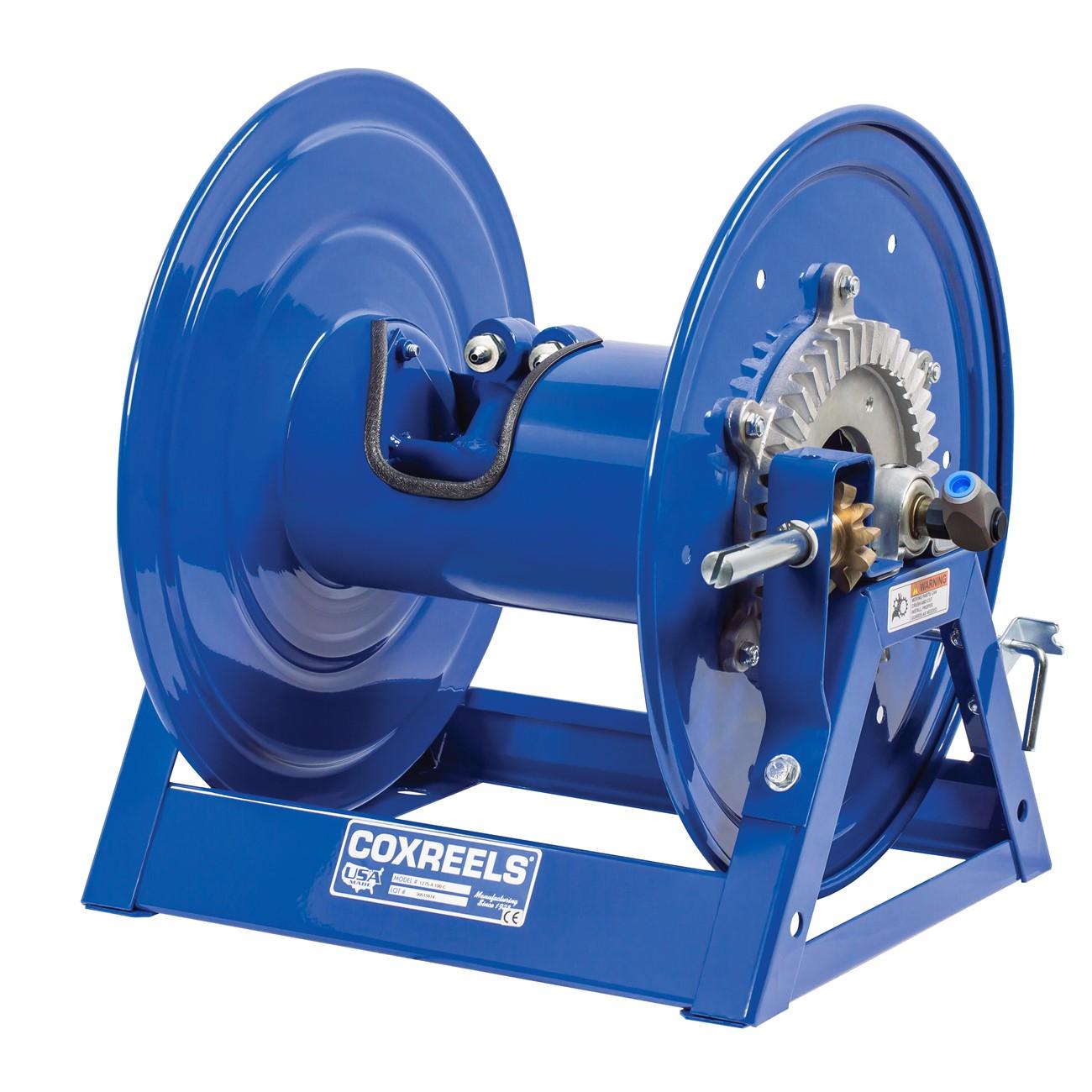

Coxreels 1275HPL-B-8 Dual Hydraulic Hose Reel 135 Ft

Product Description

The COXREELS 1275HPL-B-8 is a dual hydraulic hose reel built for high-pressure applications in industrial and emergency rescue service environments. Part of the 1275HP Series, this reel accepts 1/4-inch ID, 1/2-inch OD hose up to 135 feet in length and is engineered to handle the demands of dual hydraulic tool systems. The unit weighs 37 pounds and measures 19.5 inches long by 18 inches wide by 20 inches tall. Its CNC robotically welded 12-gauge steel A-frame base and permanently lubricated pillow block bearings deliver the structural integrity and rotation smoothness that sustained field use requires. Licensed HVAC technicians, hydraulic equipment specialists, and industrial service crews are the primary installers.

This hose reel is designed for dual hydraulic applications including emergency rescue systems and high-pressure hydraulic tool setups. The 1275HP Series covers a range of drive configurations, with spring-driven retraction rated to 3,000 psi up to 50 feet, and hand-crank or motorized models rated to 10,000 psi up to 200 feet. The 1275HPL-B-8 fits installations where a compact, floor- or surface-mounted reel is needed for continuous-duty dual-line hydraulic service.

Key Features

• Two high-pressure 90-degree full-flow melanized steel 1/4-inch swivels sized for dual hydraulic emergency rescue and high-pressure tool applications
• CNC robotically spun and ribbed discs with rolled edges for increased strength, durability, and hose protection
• Two low-profile -5 JIC male outlet risers with 1/2-inch by 3/8-inch reducers and open drum slot design for a non-crimping, flat hose wrap
• One-piece CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy detachment
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and low-maintenance operation
• CPC powder coat finish provides chip resistance and rust inhibition; locking pin secures reel position during reel and rim rewind

Compatibility

Designed for use with 1/4-inch ID, 1/2-inch OD dual hydraulic hose up to 135 feet; suited for dual hydraulic emergency rescue systems and other high-pressure hydraulic tool applications consistent with the 1275HP Series design.

Installation Notes

Installation is typically performed by hydraulic equipment technicians or qualified industrial service professionals. Before mounting or servicing, depressurize all connected hydraulic lines and verify the system is fully de-energized. The integrated base mounting pattern allows for direct surface mounting; ensure fasteners are rated for the load and environment. Follow applicable OSHA and equipment-manufacturer guidelines for high-pressure hydraulic hose assembly and connection.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 1/2 inch
• Maximum Hose Length: 135 feet
• Maximum Pressure (spring-driven): 3,000 psi
• Maximum Pressure (hand crank or motorized): 10,000 psi
• Frame Material: 12-gauge steel, CNC robotically welded
• Finish: CPC powder coat
• Length: 19.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 37 pounds
• UPC: 674255851030

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275HPL-B-8
