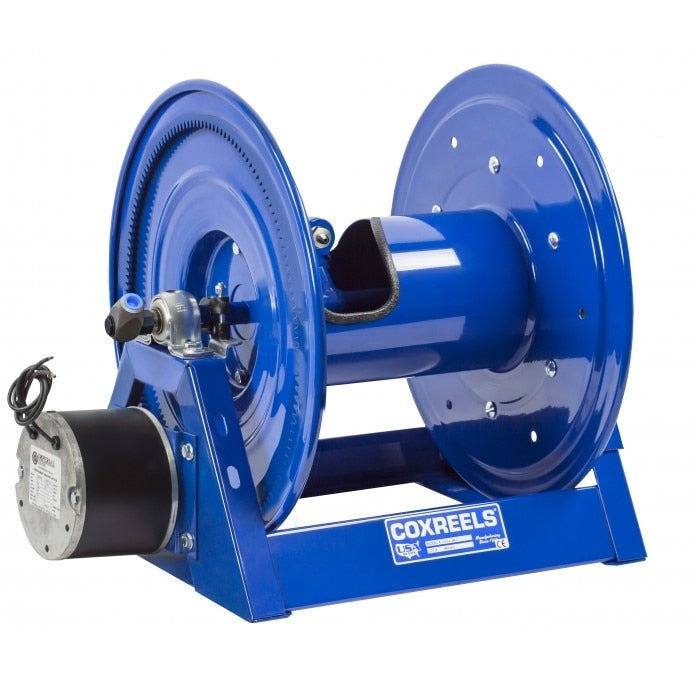

Coxreels 1275HPL-B-12-A Dual Hydraulic Hose Reel

Product Description

The COXREELS 1275HPL-B-12-A is a heavy-duty dual hydraulic hose reel engineered for high-pressure hydraulic tool and emergency rescue system applications. Built around a hand crank or motorized drive configuration, it handles pressures up to 10,000 psi and accommodates hose lengths up to 200 feet with a 1/4 inch ID and 1/2 inch OD. The all-steel, CNC robotically welded A-frame structure and CNC spun ribbed discs deliver the structural integrity required in demanding field and shop environments. Licensed HVAC techs, hydraulic service technicians, and industrial mechanics working with high-pressure dual-circuit hydraulic equipment are the primary installers and users of this reel.

The 1275HPL-B-12-A is designed for dual hydraulic applications requiring high-pressure performance, including emergency rescue tool systems and industrial hydraulic equipment setups. The reel accepts hose configurations suited to circuits demanding sustained high pressure. Its motorized or hand crank drive makes it practical for both mobile service vehicles and fixed shop installations where powered retraction of long hose runs is needed. The low-profile outlet riser and open drum slot design support a flat, non-crimping hose wrap across the full drum width.

Key Features

• Rated to 10,000 psi for demanding dual hydraulic tool and rescue system applications
• Accommodates hose up to 200 feet with 1/4 inch ID and 1/2 inch OD
• Two high-pressure 90-degree full-flow melanized steel 1/4 inch swivels for dual circuit routing
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Two exclusive low-profile -5 JIC male outlet risers with 1/2 inch x 3/8 inch reducers and open drum slot for non-crimping hose wrap
• CPC powder coat finish for chip resistance and rust inhibition; permanently lubricated self-aligning pillow block bearings for smooth rotation

Compatibility

Designed as an OEM-style replacement or direct-fit unit within the COXREELS 1275HP Series dual hydraulic hose reel product line, compatible with dual-circuit high-pressure hydraulic hose configurations at up to 10,000 psi.

Installation Notes

Installation should be performed by a qualified hydraulic or mechanical technician familiar with high-pressure hydraulic systems. Depressurize and isolate the hydraulic circuit completely before disconnecting or connecting hose ends. Mounting fasteners should be anchored to a surface rated for the combined weight of the reel and a fully loaded hose; the mounting pattern is located in the steel base. Consult applicable industry and local codes for high-pressure hydraulic installation requirements in your jurisdiction.

Technical Specifications

• Maximum Working Pressure: 10,000 psi
• Hose Length Capacity: 200 feet
• Hose ID: 1/4 inch
• Hose OD: 1/2 inch
• Length: 25.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 52 pounds
• Frame Material: 12 gauge steel, CNC robotically welded
• Finish: CPC powder coat
• Swivel Type: 90-degree full-flow melanized steel 1/4 inch (dual)
• Outlet Riser: Low-profile -5 JIC male with 1/2 inch x 3/8 inch reducer
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275HPL-B-12-A
