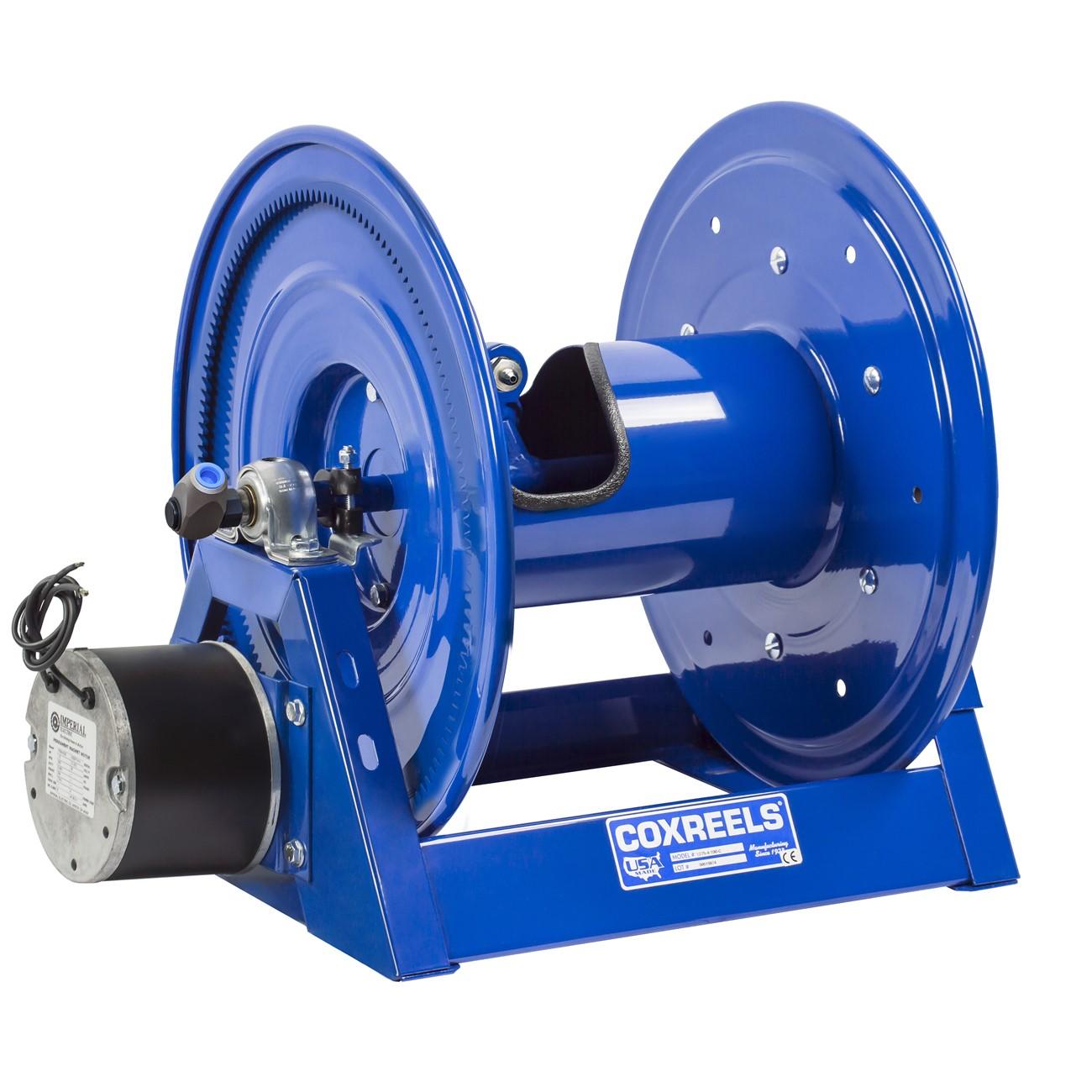

Coxreels 1275HPL-A-8-E Dual Hydraulic Hose Reel

Product Description

The COXREELS 1275HPL-A-8-E is a dual hydraulic hose reel from the 1275HP Series, engineered for high-pressure hydraulic applications in demanding field and shop environments. The reel features an electric 12V DC, 1/3 HP reversible motor for powered retrieval, and is rated for high-pressure dual hydraulic service. The drum and structural components are CNC robotically formed and welded from heavy-gauge steel, finished with a chip-resistant CPC powder coat for corrosion resistance. Licensed HVAC technicians, hydraulic service crews, and industrial maintenance professionals are the primary installers of this reel.

The 1275HPL-A-8-E is suited for dual hydraulic emergency rescue systems and high-pressure hydraulic tool applications. The motorized configuration supports extended hose lengths and high-cycle service demands. The reel accommodates hose with a 1/4 inch ID and 1/2 inch OD, with a rated length capacity of 135 feet. It is appropriate for both fixed shop installations and mobile service unit mounting where reliable hose management under high-pressure hydraulic loads is required.

Key Features

• Electric 12V DC, 1/3 HP reversible motor for powered hose retrieval
• Two high-pressure 90-degree full-flow melanized steel 1/4 inch swivels for dual hydraulic circuits
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Two low-profile -4 JIC male outlet risers with open drum slot design for non-crimping, flat smooth hose wrap
• One-piece all-welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy detachment
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and low maintenance
• CPC powder coat finish for chip resistance and rust inhibition

Compatibility

Designed as an OEM-style replacement and direct-fit reel for dual hydraulic hose management systems requiring 1/4 inch ID hose connections and high-pressure hydraulic service.

Installation Notes

Installation should be performed by qualified hydraulic or mechanical service technicians familiar with high-pressure hydraulic systems. Depressurize and isolate all hydraulic circuits before connecting or disconnecting hose fittings. Secure the reel to a structurally adequate mounting surface using the integrated base mounting pattern. Verify that the 12V DC power supply is correctly rated and that all electrical connections are made in accordance with applicable codes before energizing the motor.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 1/2 inch
• Hose Length Capacity: 135 feet
• Motor: 12V DC, 1/3 HP reversible electric
• Swivel Type: 90-degree full-flow melanized steel, 1/4 inch, dual
• Outlet Riser: -4 JIC male, dual low-profile
• Frame Construction: 12-gauge CNC welded steel A-frame
• Finish: CPC powder coat
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 68 pounds
• UPC: 674255836730

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275HPL-A-8-E
