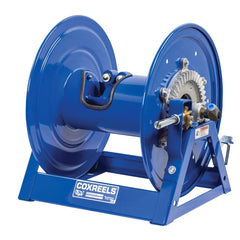

Coxreels 1275HPL-4-12-C Dual Hydraulic Hose Reel 200 Ft

Product Description

The COXREELS 1275HPL-4-12-C is a high-pressure dual hydraulic hose reel from the 1275HP Series, designed for demanding hydraulic tool and emergency rescue applications. Rated to 10,000 psi and capable of handling up to 200 feet of hose, this reel is built around a hand crank or motorized drive configuration. The one-piece CNC robotically welded 12-gauge steel A-frame base provides a rigid, non-bolted structure. Two high-pressure 90-degree full-flow melanized steel 1/4-inch swivels support dual hydraulic line routing. Licensed HVAC, plumbing, and industrial service technicians who run dual-line hydraulic systems will find this reel ready for heavy-duty field deployment.

The 1275HPL-4-12-C is suited for industrial and emergency service environments where dual hydraulic lines must be managed at sustained high pressure. Typical applications include hydraulic rescue tool systems, industrial presses, and high-pressure hydraulic power units. The hand crank or motorized drive makes this model appropriate for longer hose runs where spring retraction is not practical. The exclusive low-profile outlet riser and open drum slot design delivers a non-crimping, flat smooth hose wrap, protecting hose integrity over repeated use cycles.

Key Features

• Rated to 10,000 psi for demanding dual hydraulic applications up to 200 feet
• Two high-pressure 90-degree full-flow melanized steel 1/4-inch swivels for dual-line routing
• One-piece CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity
• Heavy-duty CNC spun and ribbed discs with rolled edges for hose protection and operator safety
• Low-profile outlet riser and open drum slot design prevents hose crimping and promotes flat wrap
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish resists chips and rust for lasting durability in field conditions

Compatibility

Designed as an OEM-style replacement and direct-fit option within the COXREELS 1275HP Series for dual hydraulic hose reel applications rated to 10,000 psi.

Installation Notes

Installation should be performed by a qualified technician familiar with high-pressure hydraulic systems. Depressurize and lock out all hydraulic circuits before mounting or connecting this reel. Secure the reel using the mounting pattern built into the steel base, and verify that all swivel fittings are fully seated and torque-free leak tested at system pressure before returning the circuit to service. Consult applicable OSHA and equipment-specific hydraulic safety standards during installation.

Technical Specifications

• Maximum Working Pressure: 10,000 psi
• Hose Capacity: 200 feet
• Hose ID: 1/4 inch
• Hose OD: 1/2 inch
• Swivel Type: Dual 90-degree full-flow melanized steel 1/4-inch high-pressure swivels
• Frame Material: 12-gauge CNC robotically welded steel
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 45 pounds
• UPC: 674255831179

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275HPL-4-12-C
