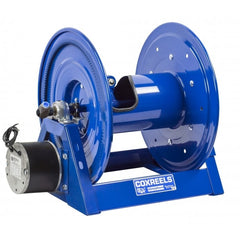

Coxreels 1275HPL-4-12-A Dual Hydraulic Hose Reel 200 Ft

Product Description

The COXREELS 1275HPL-4-12-A is a heavy-duty dual hydraulic hose reel from the 1275HP Series, engineered for high-pressure hydraulic applications up to 10,000 psi. It accommodates hose with a 1/4 inch ID and 1/2 inch OD at lengths up to 200 feet, making it well suited for demanding fieldwork and shop installations alike. The unit ships as a hand crank or motorized configuration, delivering the hose capacity and pressure rating required for hydraulic rescue tools and similar high-pressure equipment. Licensed hydraulic technicians and industrial service crews are the primary installers.

This reel is designed for dual hydraulic service lines, including emergency rescue system applications and high-pressure hydraulic tool setups. The 1275HP Series sits within a product family that also includes the MPD and TDMP Series, all of which share redesigned internals to manage the thermal and mechanical demands of dual hydraulic circuits. At 10,000 psi working pressure and 200 feet of hose capacity, it covers a broad range of mobile and stationary service scenarios in industrial, municipal, and emergency-response environments.

Key Features

• Rated to 10,000 psi working pressure with up to 200 feet of hose capacity
• Two high-pressure 90-degree full-flow melanized steel 1/4 inch swivels for dual hydraulic circuits
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Dual low-profile outlet risers with open drum slot design provide a non-crimping, flat smooth hose wrap
• One-piece, fully CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy detachment
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish for chip resistance and rust inhibition

Compatibility

Designed for dual hydraulic hose applications requiring 1/4 inch ID hose at high-pressure ratings up to 10,000 psi; compatible with hand crank and motorized drive configurations within the 1275HP Series platform.

Installation Notes

Installation should be performed by a qualified hydraulic technician or industrial mechanic familiar with high-pressure fluid systems. Depressurize and isolate all hydraulic circuits completely before mounting or servicing the reel. Secure the A-frame base to a structurally adequate surface using the integrated mounting pattern. All connections and fittings must be rated for the system working pressure and comply with applicable industry standards before the system is returned to service.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 1/2 inch
• Hose Capacity: 200 feet
• Maximum Working Pressure: 10,000 psi
• Frame Material: 12-gauge steel, CNC robotically welded
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 52 pounds
• UPC: 674255831209

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275HPL-4-12-A
