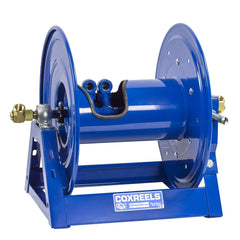

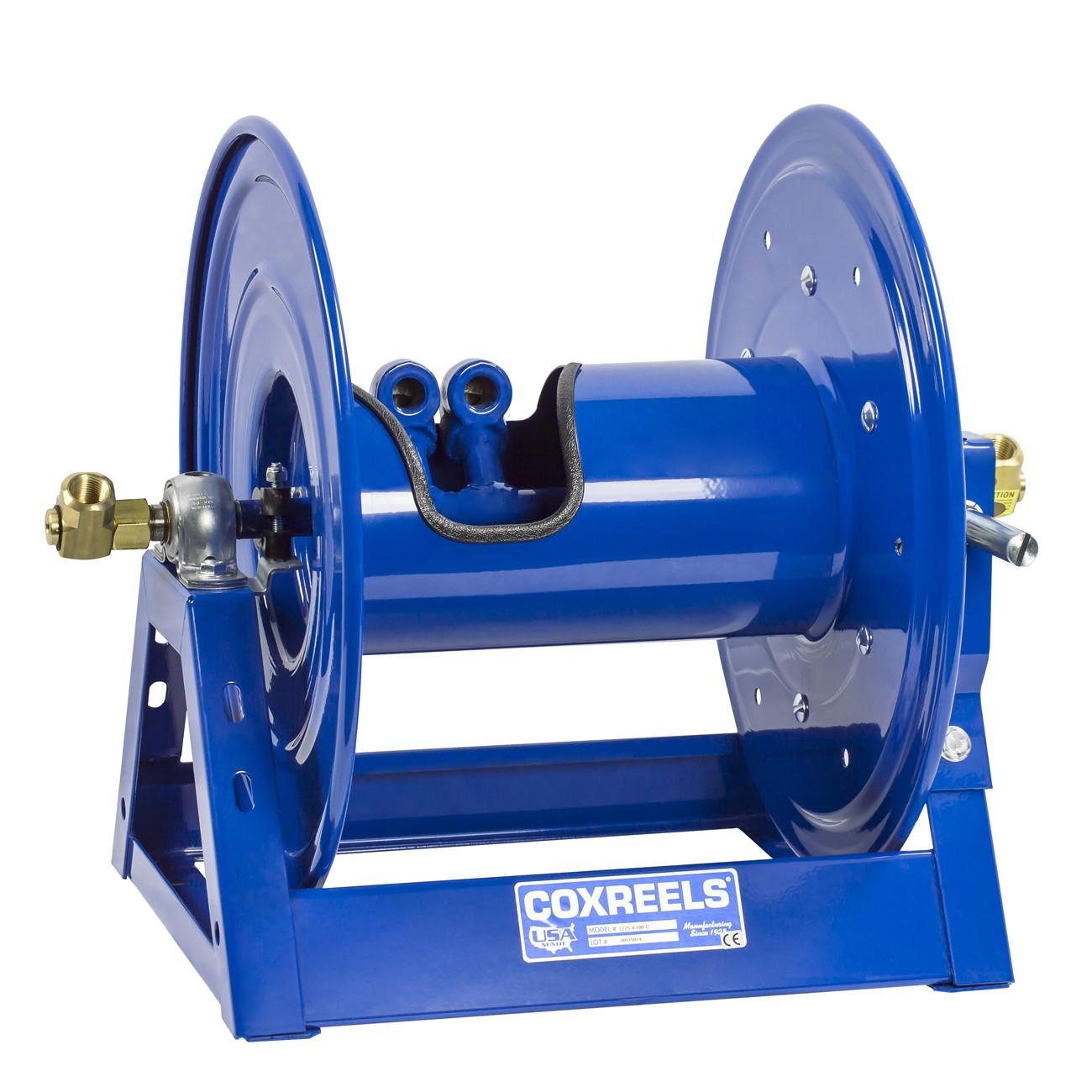

Coxreels 1275-6-75-C Dual Hose Reel 1 in Id 75 Ft

Product Description

The COXREELS 1275-6-75-C is a large-capacity dual hose reel from the 1275 Series, designed for demanding industrial and commercial fluid transfer applications. It accepts 1 inch inside diameter hose up to 75 feet in length and is available in hand crank or motorized configurations. The one-piece all-welded steel A-frame provides structural rigidity without bolted joints. Two machined brass 90-degree full-flow NPT swivel inlets and two low-profile outlet risers work with an open drum slot to produce a flat, non-crimping hose wrap. Licensed plumbers, industrial maintenance techs, and professional contractors are the primary installers of this unit.

The 1275-6-75-C is built for large-capacity applications where dual plumbing circuits are required. The open drum slot and dual low-profile outlet riser design accommodate high-volume fluid delivery while keeping hose lay consistent and kink-free. The reel suits fixed mounting in shop, fleet, agricultural, and industrial service environments where heavy hose management is a daily requirement. Both hand crank and motorized drive options make it adaptable to varied workflow demands.

Key Features

• Dual plumbing with two machined solid-brass 90-degree full-flow NPT swivels for fast hose installation and simple seal maintenance without removing the reel from its mount
• Two exclusive low-profile outlet risers with open drum slot design for a non-crimping, flat smooth hose wrap
• One-piece all CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity over bolted designs
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, hose protection, and operator safety
• Permanently lubricated self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish resists chips and rust; adjustable tension brake prevents freewheeling; front bevel-geared crank for easy mechanical retraction

Compatibility

Designed as an OEM-style large-capacity dual hose reel for fixed-mount industrial, commercial, and fleet service installations requiring 1 inch ID hose up to 75 feet.

Installation Notes

Installation is typically performed by a licensed plumber or qualified industrial maintenance technician. Shut off all fluid supply and depressurize the system completely before connecting or disconnecting hose or swivel fittings. Mount the reel to a structurally sound surface using the mounting pattern provided in the steel base. Verify that inlet and outlet connections conform to applicable plumbing codes before returning the system to service.

Technical Specifications

• Hose Inside Diameter: 1 inch
• Hose Length Capacity: 75 feet
• Hose Outside Diameter: 1 7/16 inches
• Drive Type: Hand crank or motorized
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Material: Machined solid brass
• Finish: CPC powder coat
• Length: 31 inches
• Width: 24 inches
• Height: 27 inches
• Weight: 68 pounds
• UPC: 674255839250

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275-6-75-C
