Coxreels 1275-6-50-E Dual Hose Reel 1 in Id 50 Ft 12V Dc

Product Description

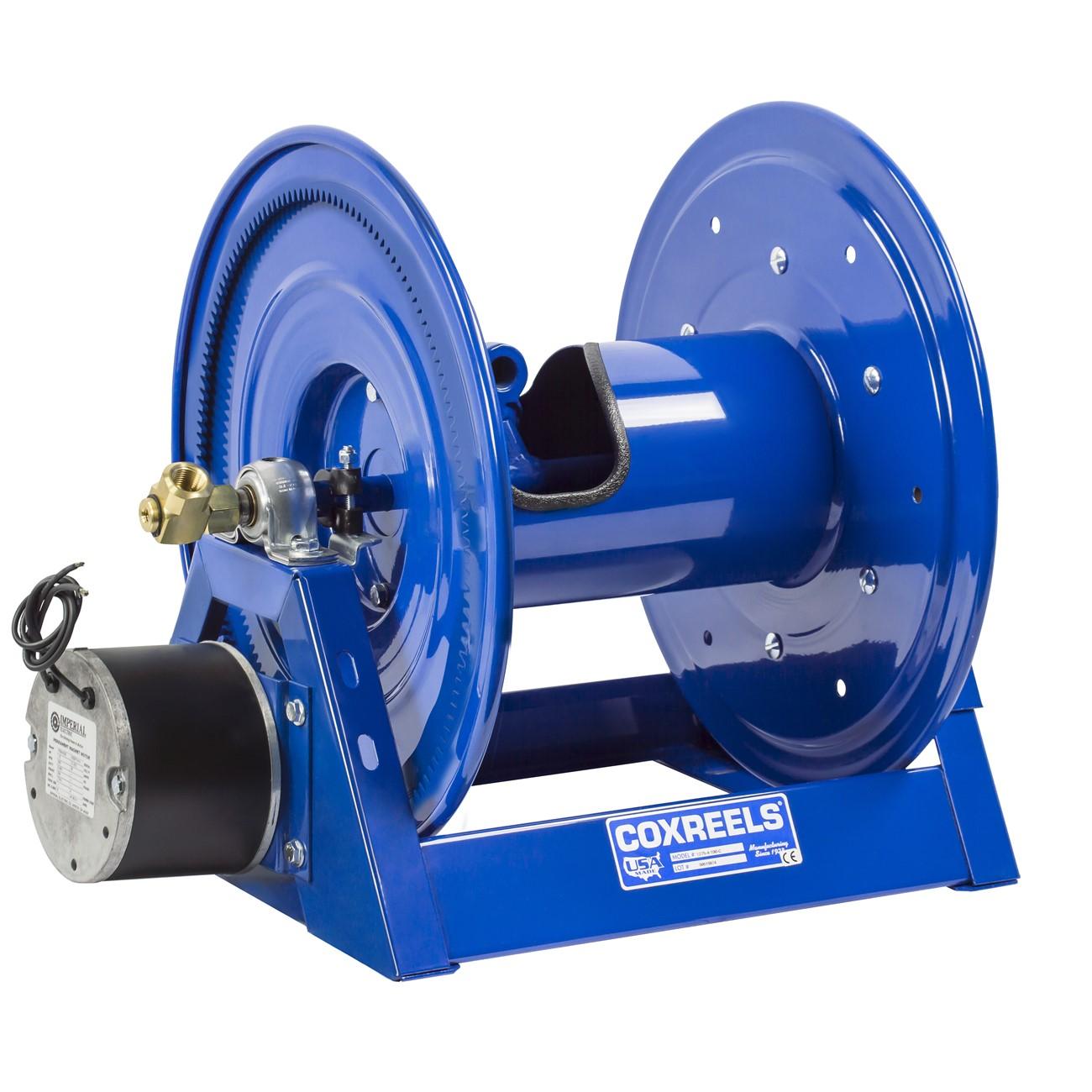

The COXREELS 1275-6-50-E is a heavy-duty dual hose reel from the 1275 Series, engineered for large-capacity fluid handling applications. It accepts hose with a 1-inch inner diameter and an outer diameter of 1-7/16 inches, with a 50-foot hose capacity. The reel ships with a 12V DC, 1/3 HP reversible electric motor for powered retrieval, though the design also accommodates hand-crank operation. Two machined brass NPT swivel inlets and two low-profile outlet risers work together to produce a flat, non-crimping hose wrap across the open drum. Licensed tradespeople working in industrial, contractor, or fleet service environments install this unit where high-volume hose management and reliable motorized rewind are required.

The 1275-6-50-E is suited for large-capacity applications in commercial, industrial, and contractor settings where dual-line plumbing is required. The open drum slot and dual low-profile outlet risers support flat hose layering across the full 50-foot capacity. Typical installations include service bays, fleet maintenance facilities, construction sites, and industrial process areas where consistent, high-volume fluid delivery and retraction are daily demands.

Key Features

• Dual plumbing with two machined solid brass 90-degree full-flow NPT swivels for simple seal maintenance without removing the reel from its mount
• Two low-profile outlet risers and open drum slot design prevent hose crimping and promote a flat, smooth wrap
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• One-piece all-CNC robotically welded 12-gauge steel A-frame base provides superior rigidity over bolted alternatives
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish resists chips and rust; powered by a 12V DC, 1/3 HP reversible motor

Compatibility

Designed as an OEM-style dual hose reel for large-capacity industrial and commercial hose management applications requiring 1-inch ID hose up to 50 feet in length.

Installation Notes

Installation is typically performed by licensed mechanics, fleet technicians, or industrial maintenance professionals. Disconnect and lock out all power and fluid supply lines before mounting or servicing the reel. The mounting pattern is located in the steel base; use hardware appropriate for the mounting surface load rating. When connecting the 12V DC motor, follow applicable electrical codes and ensure the power source is sized for continuous motor load.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1-7/16 inches
• Hose Capacity: 50 feet
• Motor: 12V DC, 1/3 HP reversible electric
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat
• Length: 31 inches
• Width: 20 inches
• Height: 23 inches
• Weight: 73 pounds
• UPC: 674255839069

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275-6-50-E
