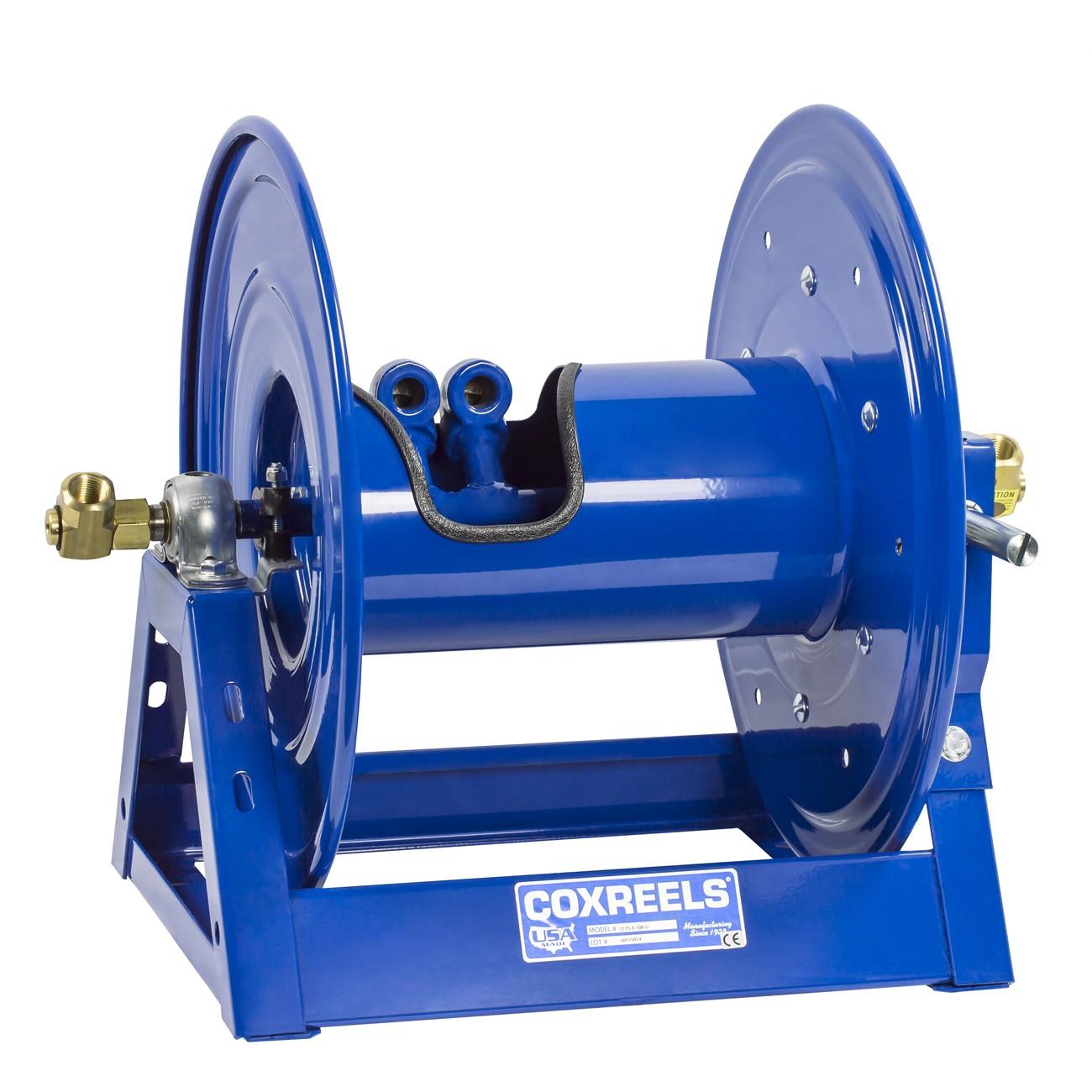

Coxreels 1275-6-50-C Dual Hose Reel 1 in Id 50 Ft

Product Description

The COXREELS 1275-6-50-C is a heavy-duty dual hose reel from the 1275 Series, built for large-capacity industrial and commercial fluid management applications. It accepts hose with a 1-inch ID and 1-7/16-inch OD, storing up to 50 feet of hose on a single reel. The unit ships with dual plumbing that includes two swivel inlets and two low-profile outlet risers, producing a non-crimping, flat smooth hose wrap. Available in hand crank or motorized configurations, this reel is installed by industrial maintenance crews, plumbers, and fluid-handling technicians who need reliable high-volume hose management in demanding environments.

The 1275-6-50-C is designed for large-capacity applications where dual-line fluid delivery is required. Its open drum slot and low-profile outlet risers make it well suited for use in manufacturing facilities, fleet service bays, industrial plants, and heavy-duty field service operations. The front bevel-geared crank and positive gear drive rewind mechanism allow consistent mechanical retraction in environments where hose is deployed and retrieved repeatedly throughout a shift. Both hand crank and motorized drive options are supported by the same base frame design.

Key Features

• Dual plumbing with two machined solid-brass 90-degree full-flow NPT swivels for simple seal maintenance and hose installation without removing the reel from its mount
• Two exclusive low-profile outlet risers with open drum slot design deliver a non-crimping, flat smooth hose wrap
• One-piece all CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity — no bolted joints
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish is chip-resistant and rust-inhibiting; adjustable tension brake prevents free-wheeling

Compatibility

Designed as an OEM-style large-capacity dual hose reel for industrial and commercial fluid delivery systems requiring 1-inch ID hose with up to 50 feet of hose capacity.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial hose reel mounting requirements. Shut off all fluid supply lines and relieve system pressure completely before mounting or servicing this reel. The mounting pattern is located in the steel base for straightforward installation and detachment. Verify that inlet and outlet connections are rated for the intended working pressure and fluid type before commissioning.

Technical Specifications

• Hose ID: 1 inch
• Hose OD: 1-7/16 inches
• Hose Capacity: 50 feet
• Drive Type: Hand crank or motorized
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Material: Machined solid brass
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 31 inches
• Width: 20 inches
• Height: 23 inches
• Weight: 63 pounds
• UPC: 674255839113

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275-6-50-C
