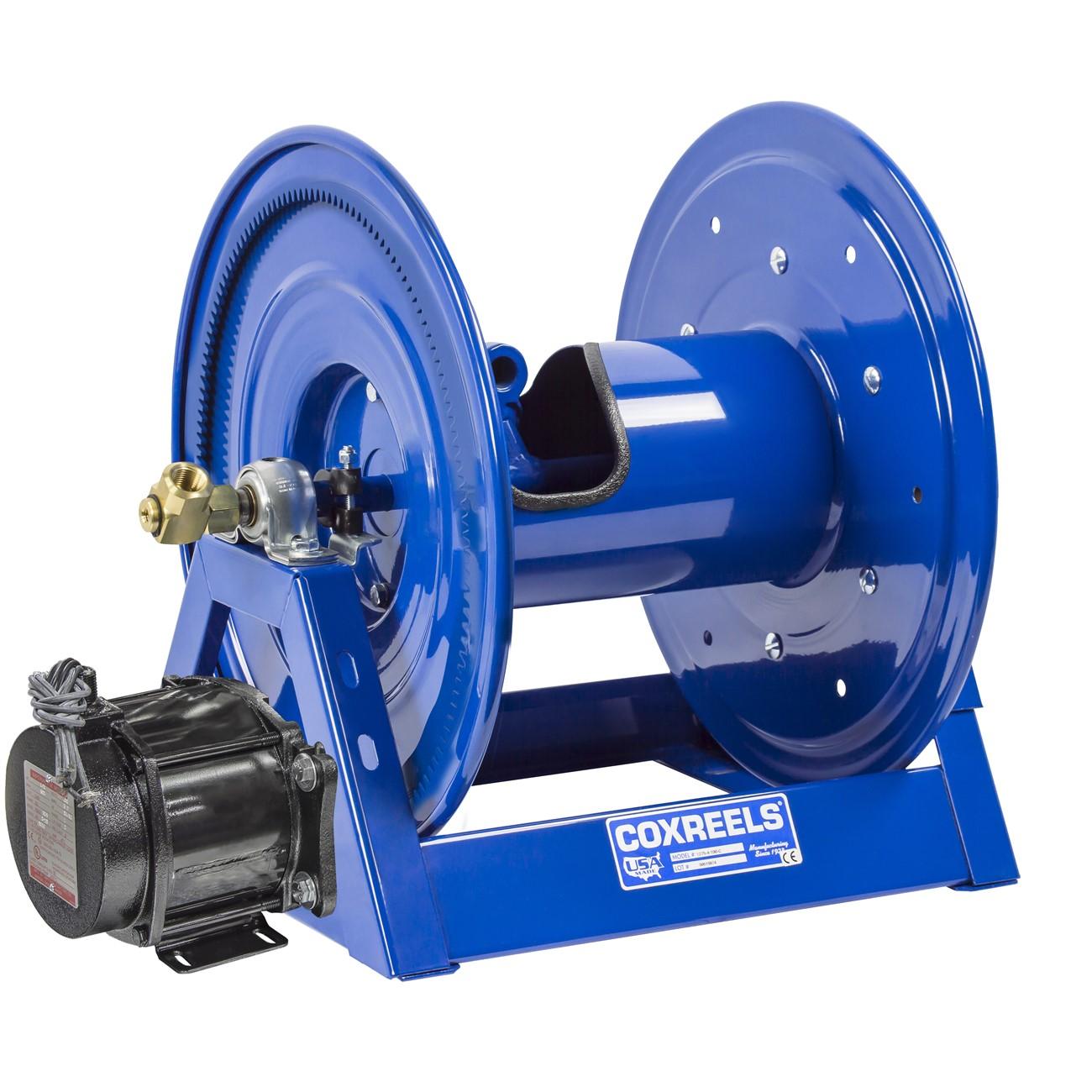

Coxreels 1275-6-150-ED Dual Hose Reel 1 in 150 Ft

Product Description

The COXREELS 1275-6-150-ED is a large-capacity dual hose reel from the 1275 Series, built for heavy-duty industrial and commercial applications requiring simultaneous dual-line fluid delivery. The reel accepts 1-inch ID hose with a 1-7/16-inch OD and holds 150 feet of hose. It is driven by a 12V DC, 1/2 HP explosion-proof reversible electric motor and features a positive gear drive rewind for consistent, trouble-free operation. The all-welded steel frame and CNC robotically spun discs make this reel suitable for demanding environments where durability and structural integrity are non-negotiable.

The 1275-6-150-ED is designed for large-capacity hose management in industrial facilities, fleet maintenance shops, petrochemical environments, and similar heavy-use settings. The dual plumbing configuration with two swivel inlets and two low-profile outlet risers supports applications where two separate hose lines must be deployed from a single reel. The explosion-proof motor rating makes it appropriate for use in classified hazardous locations where flammable vapors or gases may be present. This reel is typically installed by maintenance technicians or industrial service professionals.

Key Features

• 12V DC, 1/2 HP explosion-proof reversible electric motor for powered hose retrieval in hazardous locations
• Dual plumbing with two machined solid-brass 90-degree full-flow NPT swivels for simple seal maintenance without removing the reel from its mount
• Two exclusive low-profile outlet risers and open drum slot design deliver a non-crimping, flat smooth hose wrap
• One-piece all-CNC robotically welded 12-gauge steel A-frame base provides superior structural rigidity over bolted designs
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish resists chipping and rust for extended service in harsh environments

Compatibility

Designed for use with 1-inch ID hose up to 150 feet in length; part of the COXREELS 1275 Series dual hose reel platform intended for large-capacity industrial hose management applications.

Installation Notes

Installation should be performed by a qualified industrial or maintenance technician familiar with dual-line fluid systems and 12V DC motor wiring. Shut off all fluid supply lines and de-energize the 12V DC power source before mounting or servicing the reel. The mounting pattern is located in the steel base for straightforward installation and detachment. When installing in a classified hazardous location, verify the motor rating meets applicable NEC requirements for the area classification before energizing.

Technical Specifications

• Hose ID: 1 inch
• Hose OD: 1-7/16 inches
• Hose Capacity: 150 feet
• Motor: 12V DC, 1/2 HP explosion-proof reversible electric
• Frame Material: 12-gauge welded steel
• Length: 37 inches
• Width: 28 inches
• Height: 31 inches
• Weight: 111 pounds
• UPC: 674255839304

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275-6-150-ED
