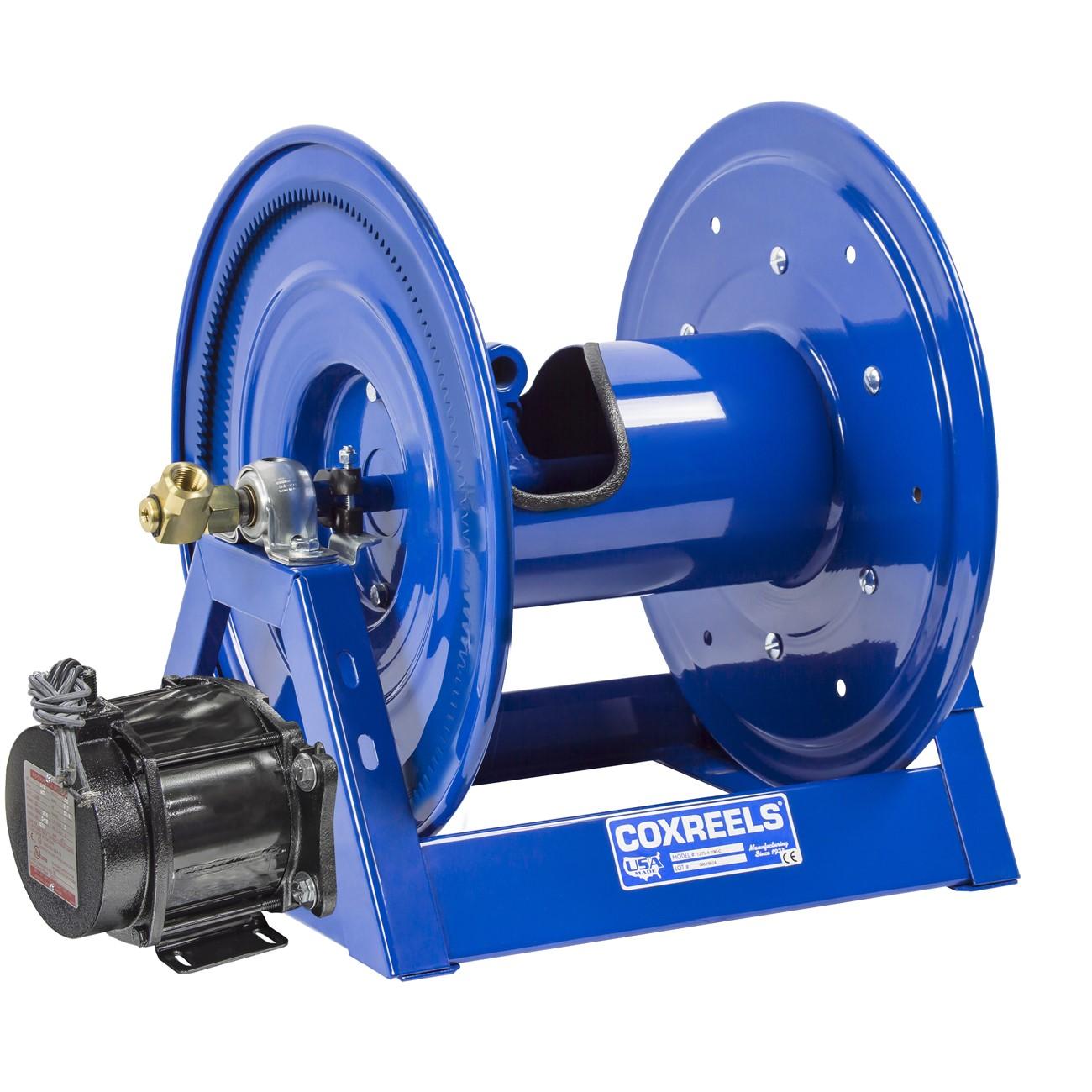

Coxreels 1275-6-150-EA Dual Hose Reel 150 Ft 1 Inch Id

Product Description

The COXREELS 1275-6-150-EA is a heavy-duty dual hose reel from the 1275 Series, engineered for large-capacity industrial and commercial applications. It accommodates hose with a 1-inch inner diameter and 1-7/16-inch outer diameter, with a 150-foot length capacity. The unit features dual plumbing with two swivel inlets and two low-profile outlet risers that work with an open drum slot to deliver a non-crimping, flat smooth hose wrap. Drive options include hand crank or a 115-volt AC, 1/2 HP reversible AC rectified motor. The one-piece all-welded steel A-frame provides structural rigidity without bolted joints. Installation is handled by qualified industrial maintenance technicians or mechanical contractors.

The 1275-6-150-EA is suited for large-capacity hose management in industrial facilities, fleet maintenance shops, manufacturing plants, and heavy commercial service environments. The dual-plumbing configuration makes it appropriate for applications requiring simultaneous or paired hose runs. The motorized drive option supports high-frequency retrieval in demanding production or service settings where manual rewind is impractical. No specific OEM system compatibility has been stated by the manufacturer for this unit.

Key Features

• Dual plumbing with two machined solid brass 90-degree full-flow NPT swivels for simple seal maintenance and hose installation without removing the reel from its mount
• Two exclusive low-profile outlet risers with open drum slot design for non-crimping, flat smooth hose wrap
• One-piece CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity over bolted designs
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, hose protection, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish for chip resistance and rust inhibition; optional 115-volt AC, 1/2 HP reversible motor available

Compatibility

Designed for large-capacity dual-hose reel applications using 1-inch ID hose up to 150 feet in length; verify swivel inlet thread size and outlet configuration against existing plumbing before installation.

Installation Notes

Installation should be performed by a qualified mechanical or industrial maintenance technician familiar with hose reel mounting requirements. Shut off and depressurize the fluid supply line completely before connecting or disconnecting any hose or swivel fittings. Secure the A-frame base to a structurally rated mounting surface using the integrated mounting pattern in the steel base. If installing the motorized version, electrical connections must comply with applicable NEC requirements and should be made by a licensed electrician.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1-7/16 inches
• Hose Capacity: 150 feet
• Motor: 115 volts AC, 1/2 HP reversible AC rectified
• Frame Material: 12-gauge steel, CNC robotically welded
• Length: 37 inches
• Width: 28 inches
• Height: 31 inches
• Weight: 111 pounds
• Finish: CPC powder coat, chip resistant and rust inhibiting
• UPC: 674255839281

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275-6-150-EA
