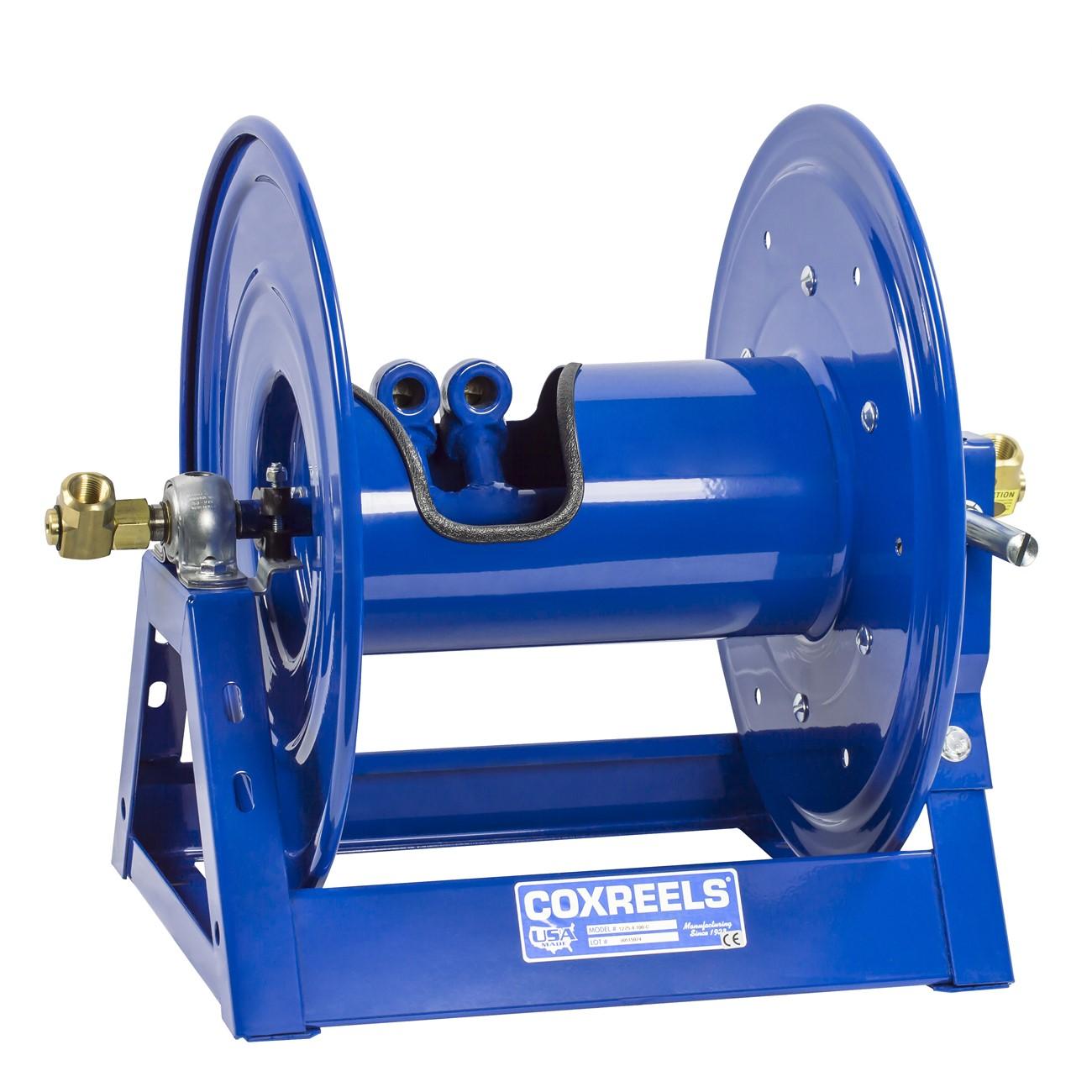

Coxreels 1275-6-150-C Dual Hose Reel 1 in Id 150 Ft

Product Description

The COXREELS 1275-6-150-C is a heavy-duty dual hose reel from the 1275 Series, built for large-capacity fluid handling applications in industrial and commercial environments. It accepts hose with a 1-inch inner diameter and accommodates up to 150 feet of hose. The reel supports both hand crank and motorized operation, giving installers flexibility depending on the application. Two machined brass 90-degree full-flow NPT swivels provide smooth flow-through performance, and the positive gear drive rewind ensures consistent, reliable retraction. The one-piece all-welded steel frame is constructed from 12-gauge steel for rigidity without bolted joints.

This reel is suited for demanding service environments where large hose volumes and reliable dual-line plumbing are required. The dual swivel inlet and dual low-profile outlet configuration supports a flat, smooth hose wrap that resists crimping. The open drum slot design aids hose lay during both payout and retrieval. Typical applications include industrial service bays, fleet maintenance facilities, manufacturing plants, and other settings where high-volume fluid delivery from a fixed or semi-permanent mount is needed. Licensed mechanics, industrial maintenance techs, and equipment service professionals are the primary installers.

Key Features

• Dual 90-degree machined brass NPT swivel inlets allow seal maintenance and hose installation without removing the reel from its mount
• Two exclusive low-profile outlet risers and open drum slot design provide a non-crimping, flat smooth hose wrap
• One-piece all-welded 12-gauge steel A-frame base for superior structural rigidity and easy mounting and detachment
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish resists chipping and rust; adjustable tension brake prevents free-wheeling during payout

Compatibility

Designed as a large-capacity dual hose reel for industrial and commercial fluid delivery systems requiring 1-inch ID hose up to 150 feet in length with dual plumbing configurations.

Installation Notes

Installation should be performed by qualified maintenance or service technicians familiar with industrial hose reel mounting and fluid system connections. Shut off and depressurize the fluid supply lines before making any hose or swivel connections. Secure the reel to a structurally sound surface using the mounting pattern located in the steel base. Verify all NPT swivel connections are properly sealed before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1 7/16 inches
• Hose Capacity: 150 feet
• Frame Material: 12-gauge steel, all-welded A-frame construction
• Swivel Material: Machined solid brass
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 37 inches
• Width: 28 inches
• Height: 31 inches
• Weight: 88 pounds
• UPC: 674255839328

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275-6-150-C
