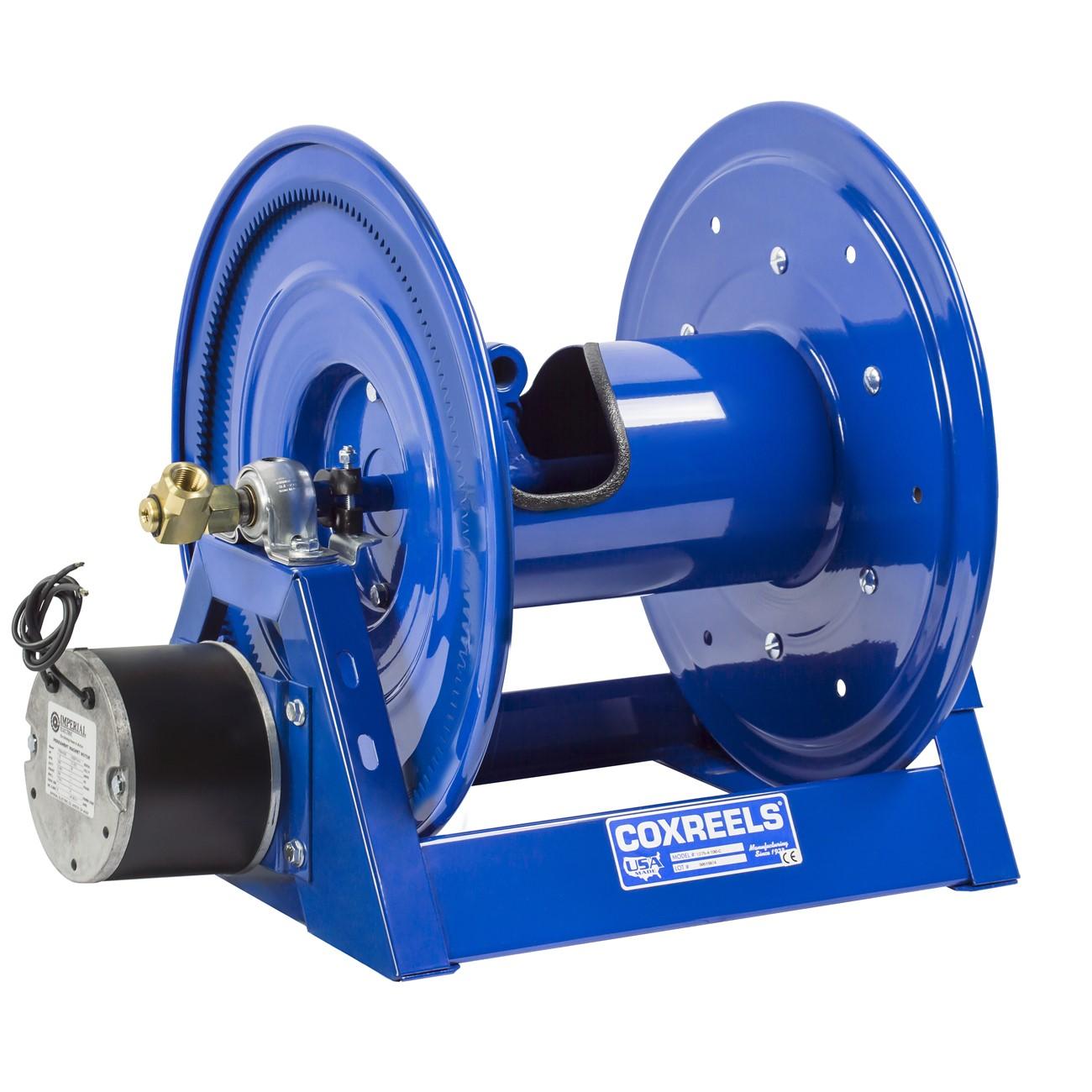

Coxreels 1275-6-100-E Dual Hose Reel 1 in 100 Ft 12V Dc

Product Description

The COXREELS 1275-6-100-E is a heavy-duty dual hose reel from the 1275 Series, engineered for large-capacity industrial and commercial applications. It accommodates hose with a 1-inch inner diameter and holds up to 100 feet of hose. The reel ships with a 12-volt DC, 1/3 HP reversible motor for powered retrieval, and can also be operated by hand crank. Two machined brass swivel inlets and two low-profile outlet risers work together with an open drum slot to deliver a non-crimping, flat smooth hose wrap. The one-piece all-welded steel frame provides structural rigidity without bolted joints, and permanently lubricated pillow block bearings ensure smooth, consistent rotation over long service life.

This reel is suited for facilities, service fleets, and industrial job sites where high-volume hose deployment is required. The dual plumbing configuration makes it appropriate for applications demanding two simultaneous fluid circuits. Typical installations include wash-down stations, lubrication systems, hydraulic service bays, and compressed air or fluid delivery setups where a large hose capacity and motorized retrieval are necessary. Licensed mechanics, industrial maintenance technicians, and plumbing professionals are the primary installers.

Key Features

• 12-volt DC, 1/3 HP reversible motor provides powered hose retrieval
• Dual plumbing with two machined solid-brass 90-degree full-flow NPT swivels for straightforward seal maintenance without removing the reel from its mount
• Two exclusive low-profile outlet risers with open drum slot design for non-crimping, flat smooth hose wrap
• One-piece CNC robotically welded 12-gauge steel A-frame base for superior structural integrity
• Heavy-duty CNC spun and ribbed discs with rolled edges for hose protection and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish is chip-resistant and rust-inhibiting for lasting durability in harsh environments

Compatibility

Designed for large-capacity dual-hose reel applications requiring 1-inch ID hose and up to 100 feet of hose capacity with motorized retrieval; verify swivel inlet thread type and mounting pattern against your installation requirements before ordering.

Installation Notes

Installation should be performed by a qualified industrial or plumbing technician familiar with fluid handling systems. Shut off and depressurize the fluid supply line completely before connecting or disconnecting swivel inlets. The 12-volt DC motor requires a properly rated DC power source and appropriate wiring per applicable electrical codes. Secure the reel to a structurally sound mounting surface using the base mounting pattern before applying any load.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Capacity: 100 feet
• Motor: 12V DC, 1/3 HP reversible
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Material: Solid brass, machined
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 37 inches
• Width: 24 inches
• Height: 27 inches
• Weight: 84 pounds
• UPC: 674255839137

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275-6-100-E
