Coxreels 1275-6-100-C Dual Hose Reel 1 in Id 100 Ft

Product Description

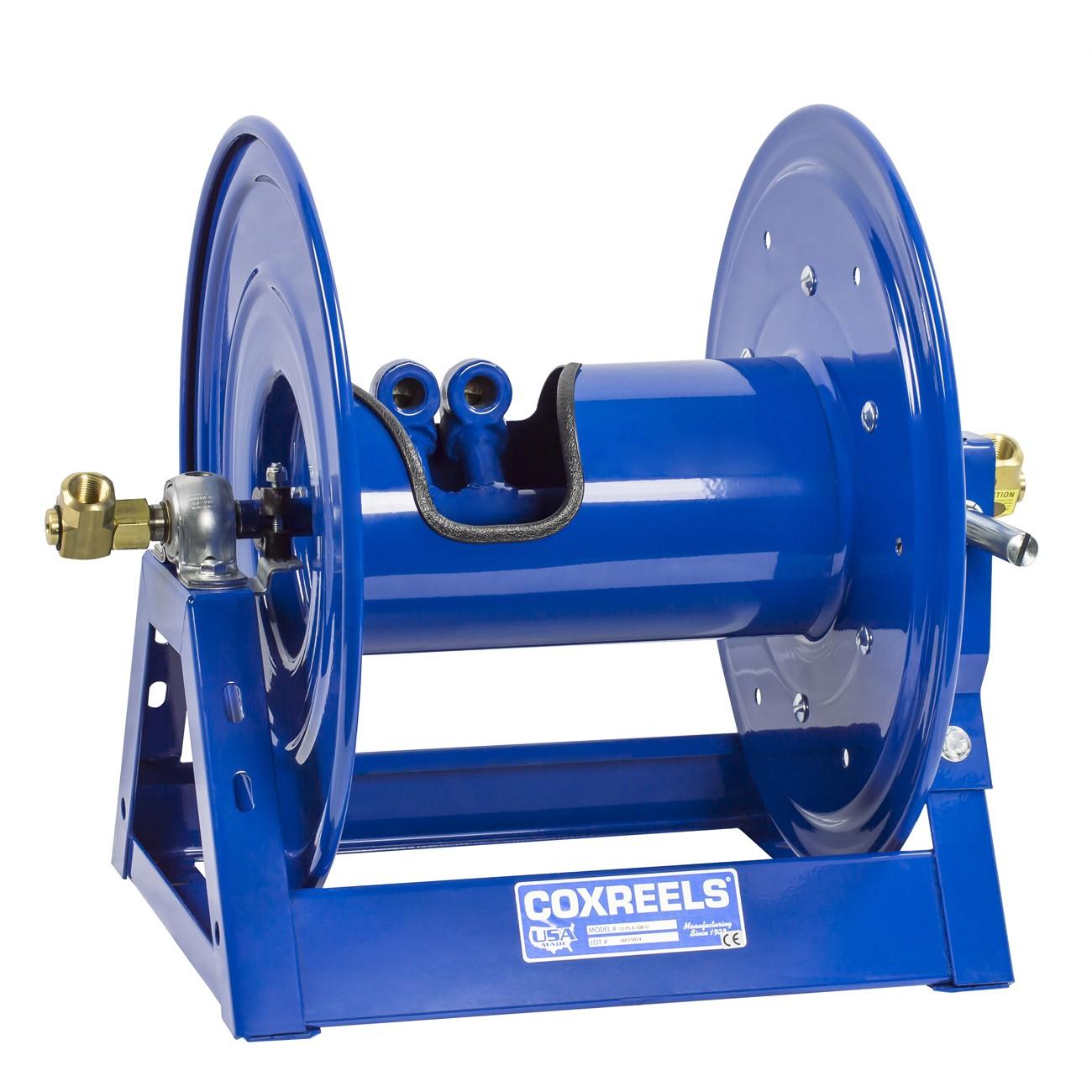

The COXREELS 1275-6-100-C is a heavy-duty dual hose reel built for large-capacity industrial and commercial applications. Part of the 1275 Series, it accepts hose with a 1-inch inner diameter and 1 7/16-inch outer diameter, handling up to 100 feet of hose. The reel ships as a hand-crank unit with motorized conversion capability. Two machined brass swivel inlets and two low-profile outlet risers work with an open drum slot design to deliver a non-crimping, flat hose wrap. The one-piece all-welded steel A-frame construction gives the unit the structural rigidity demanded in high-cycle service environments. Licensed plumbers, industrial maintenance techs, and fleet service professionals are the typical installers.

The 1275-6-100-C is suited for large-format hose management in industrial plants, fleet wash bays, construction sites, and commercial service facilities. The dual-plumbing configuration supports two-line fluid delivery or return circuits from a single reel. The open drum slot and low-profile outlet risers accommodate larger-diameter hose without bending or kinking, making this reel a practical fit for high-flow water, air, or compatible fluid service lines where hose length and controlled retrieval are critical.

Key Features

• Dual brass 90-degree full-flow NPT swivels machined from solid stock allow seal service and hose swaps without removing the reel from its mount
• Two exclusive low-profile outlet risers with open drum slot deliver a non-crimping, flat smooth hose wrap for 1 7/16-inch OD hose
• One-piece CNC robotically welded 12-gauge steel A-frame base provides superior structural rigidity over bolted designs
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges protect hose and improve operator safety
• Permanently lubricated, self-aligning pillow block bearings ensure smooth rotation and long service life
• Front bevel-geared hand crank with adjustable tension brake prevents free-wheeling during controlled payout; motorized drive option available
• CPC powder-coat finish resists chipping and corrosion for extended service in harsh environments

Compatibility

Designed to accept hose with a 1-inch inner diameter and 1 7/16-inch outer diameter up to 100 feet in length. Dual NPT swivel inlets are compatible with standard NPT fittings. Confirm fluid media and pressure ratings of the connected hose against application requirements before installation.

Installation Notes

Installation should be performed by a qualified industrial maintenance technician or licensed tradesperson familiar with fluid-handling systems. Shut off and depressurize all supply lines before mounting or connecting the reel. Secure the unit to a structurally adequate surface using the mounting pattern in the steel base. Verify all NPT swivel connections are leak-free under system pressure before returning the line to service.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1 7/16 inches
• Hose Capacity: 100 feet
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Material: Solid brass, NPT
• Finish: CPC powder coat
• Length: 37 inches
• Width: 24 inches
• Height: 27 inches
• Weight: 74 pounds
• UPC: 674255839182

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275-6-100-C
