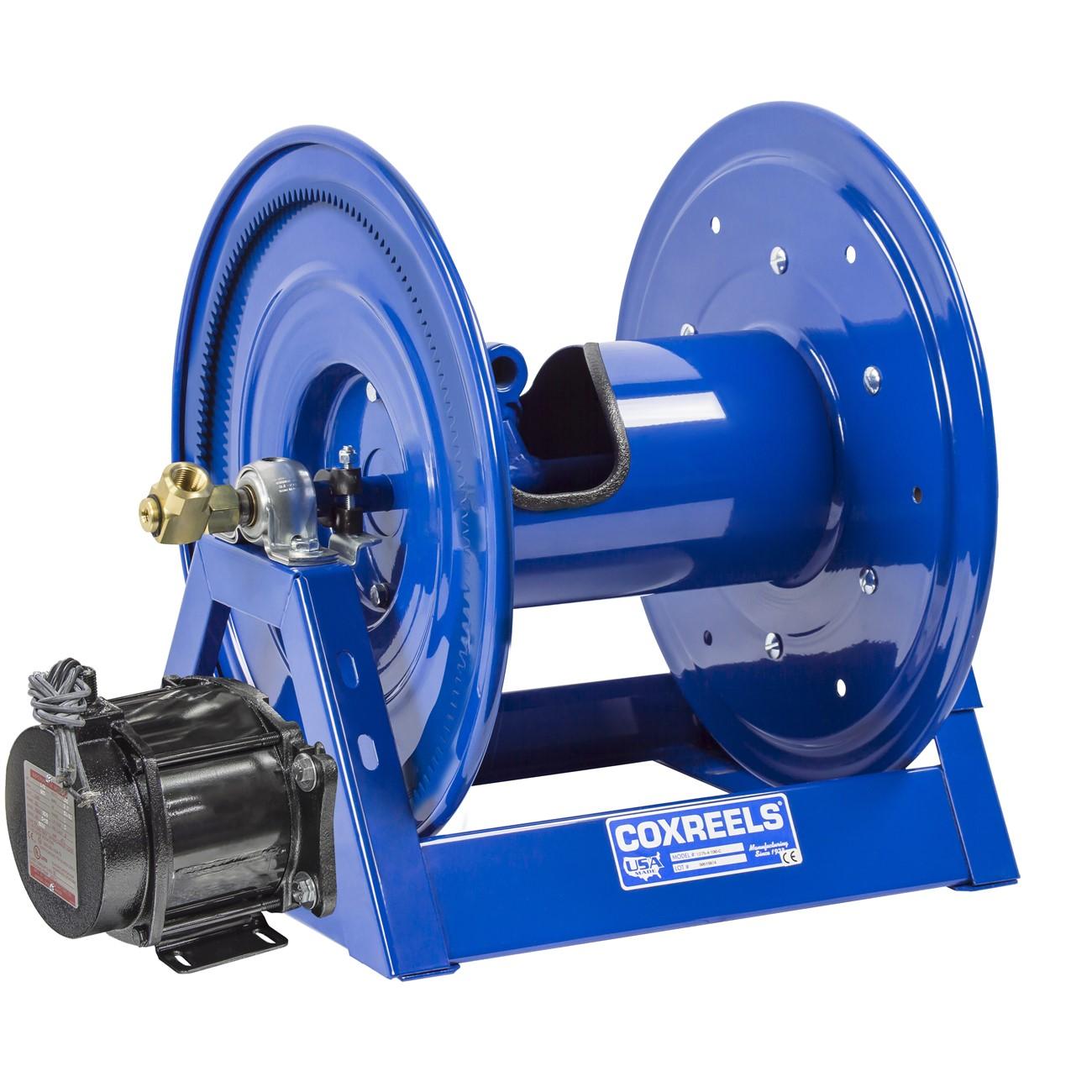

Coxreels 1275-4-50-EA Dual Hose Reel 1/2 in 50 Ft

Product Description

The COXREELS 1275-4-50-EA is a heavy-duty dual hose reel from the 1275 Series, built for large-capacity hose management in demanding industrial and trade applications. It accepts hose with a 1/2 inch inner diameter and 7/8 inch outer diameter, with a 50 ft hose capacity. The reel is driven by a 115-volt AC, 1/2 HP reversible AC rectified motor and is also configurable for hand crank operation. The one-piece all-welded steel frame and positive gear drive rewind system make this unit a reliable choice for contractors, industrial maintenance technicians, and fleet service professionals who need consistent, high-volume hose deployment and retrieval.

The 1275-4-50-EA is suited for large-capacity service applications including industrial fluid transfer, wash-down stations, and equipment service bays. Its dual plumbing configuration with two swivel inlets and two low-profile outlet risers accommodates workflows requiring simultaneous or high-flow hose connections. The open drum slot and flat hose wrap design reduce hose wear and prevent crimping during repeated use. This reel is installed by industrial maintenance crews, fleet technicians, and professional contractors in both permanent and semi-permanent mounting configurations.

Key Features

• Dual plumbing with two machined solid brass 90-degree full-flow NPT swivel inlets for simple seal maintenance and fast hose installation without removing the reel from its mount
• Two exclusive low-profile outlet risers with open drum slot design for non-crimping, flat smooth hose wrap
• One-piece all CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity without bolted joints
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection, durability, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• Chip-resistant, rust-inhibiting CPC powder coat finish; includes 115-volt AC, 1/2 HP reversible AC rectified motor

Compatibility

Designed as an OEM-style replacement or direct-install dual hose reel for large-capacity industrial and commercial hose management systems requiring 1/2 inch ID hose connections.

Installation Notes

Installation is typically performed by industrial maintenance technicians or licensed contractors familiar with fluid transfer and electrical wiring requirements. Before mounting or servicing the reel, shut off the fluid supply and disconnect or lock out electrical power to the motor per NFPA 70E lockout/tagout procedures. Secure the reel to a structurally adequate surface using the mounting pattern in the steel base. Confirm all NPT swivel connections are properly sealed and pressure-tested before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Hose Capacity: 50 ft
• Motor Voltage: 115 volts AC
• Motor Output: 1/2 HP reversible AC rectified
• Frame Material: 12-gauge steel, CNC robotically welded
• Finish: CPC powder coat
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 77 pounds
• UPC: 674255823662

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275-4-50-EA
