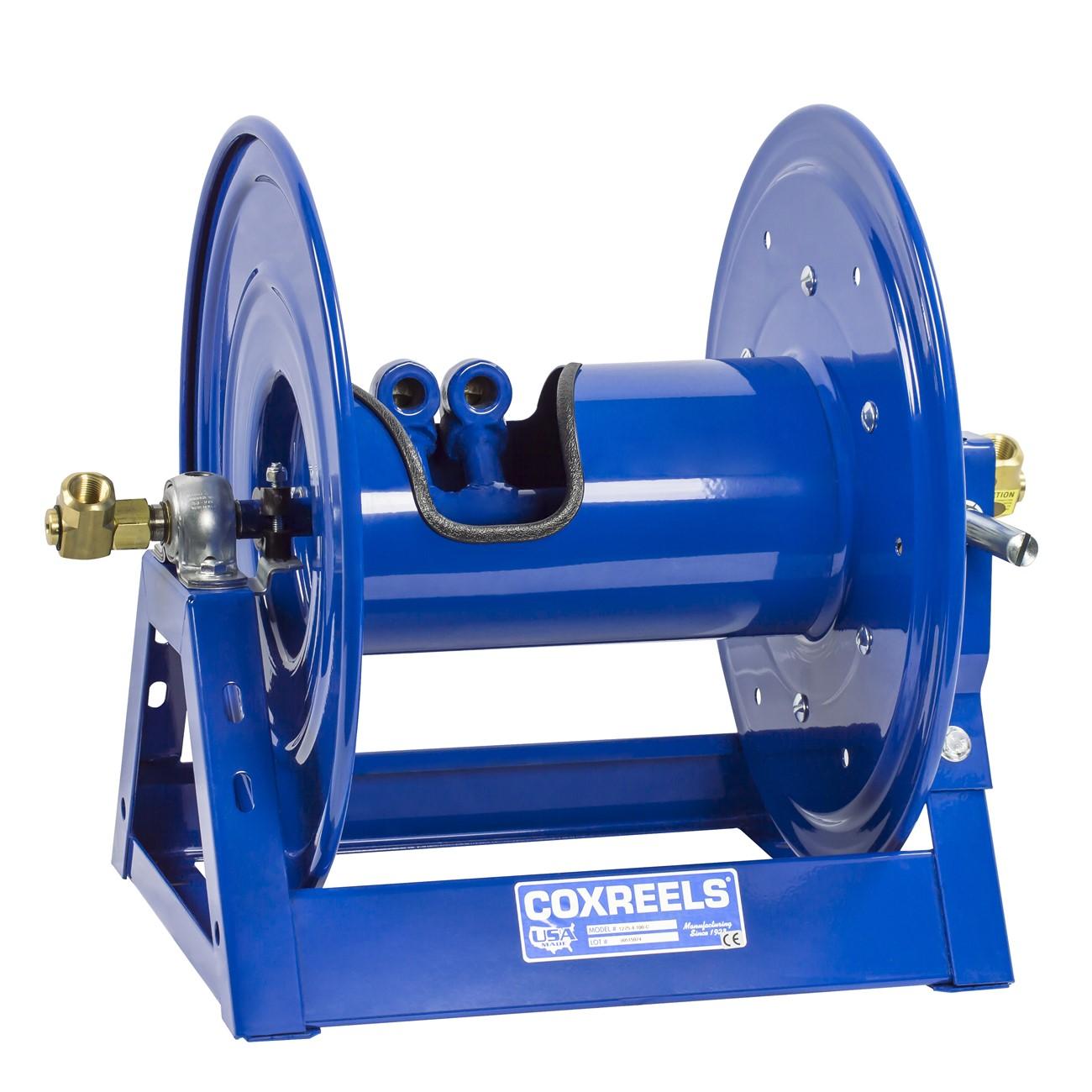

Coxreels 1275-4-50-C Dual Hose Reel 1/2 in 50 Ft

Product Description

The COXREELS 1275-4-50-C is a dual hose reel built for large-capacity industrial and commercial applications. Part of the COXREELS 1275 Series, it accepts hose with a 1/2-inch inner diameter and holds up to 50 feet of hose. The reel ships at 59 pounds and measures 19.5 inches long, 18 inches wide, and 20 inches tall. It can be configured for hand-crank or motorized operation. Dual plumbing runs through two brass swivel inlets and two low-profile outlet risers, producing a flat, non-crimping hose wrap. Licensed tradespeople in industrial, contractor, and facility maintenance roles are the primary installers.

The 1275-4-50-C suits large-capacity hose management tasks in industrial plants, contractor yards, service bays, and similar demanding environments. The open drum slot and dual low-profile outlet riser design keep hose lay flat and kink-free during both payout and retraction. The hand-crank or motorized options make this reel adaptable to fixed or mobile mounting situations where consistent, repeatable hose retrieval is required across long shifts and high cycle counts.

Key Features

• Dual plumbing with two machined solid-brass 90-degree full-flow NPT swivels for simple seal maintenance and hose installation without removing the reel from its mount
• Two exclusive low-profile outlet risers and open drum slot deliver a non-crimping, flat smooth hose wrap
• One-piece all-CNC robotically welded 12-gauge steel A-frame base provides rigid, bolted-free reel structure with an integrated mounting pattern
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, hose protection, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and extended service life
• CPC powder-coat finish resists chips and rust; adjustable tension brake prevents freewheeling; front bevel-geared crank enables easy mechanical retraction

Compatibility

Designed as an OEM-style replacement or direct application fit for large-capacity dual hose reel installations requiring 1/2-inch ID hose up to 50 feet in hand-crank or motorized configurations.

Installation Notes

Installation is typically performed by qualified industrial maintenance technicians or licensed contractors familiar with fluid transfer systems. Shut off all pressure to the supply line and depressurize the hose before mounting or connecting the reel. Secure the A-frame base to a structurally sound mounting surface using the integrated mounting pattern and fasteners rated for the reel weight and operating loads. Refer to applicable local codes and the manufacturer instructions for swivel torque and connection procedures.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Hose Capacity: 50 feet
• Operation Type: Hand crank or motorized
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Length: 19.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 59 pounds
• Finish: CPC powder coat
• UPC: 674255823358

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275-4-50-C
