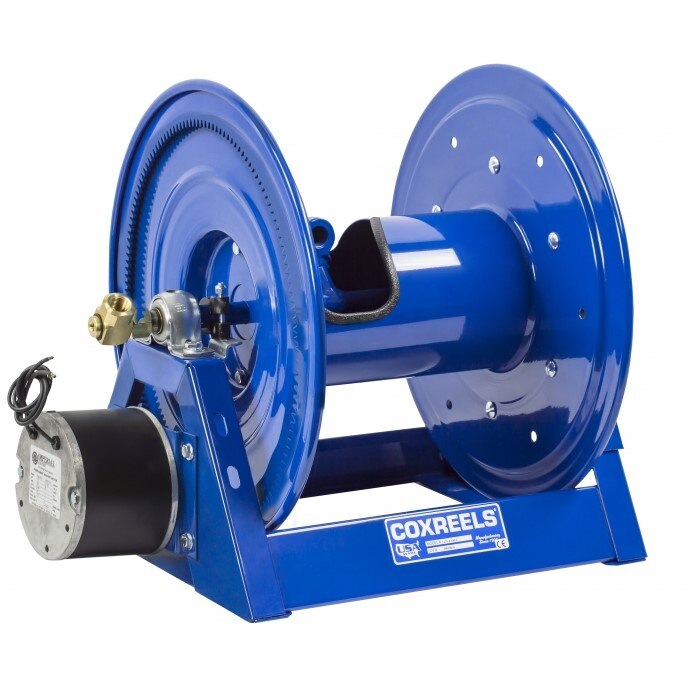

Coxreels 1275-4-200-H Dual Hose Reel 200 Ft Heavy Duty

Product Description

The COXREELS 1275-4-200-H is a heavy-duty dual hose reel from the 1275 Series, built for large-capacity industrial and commercial applications. It accommodates hose with a 1/2 inch inner diameter and 7/8 inch outer diameter up to 200 feet in length. The reel uses dual plumbing with two swivel inlets and two low-profile outlet risers, producing a flat, non-crimping hose wrap across an open drum slot. The one-piece all-welded steel frame provides structural rigidity without bolted joints, and the positive gear drive rewind delivers consistent, reliable retrieval. Licensed HVAC, plumbing, and industrial service technicians use this reel in high-demand fluid delivery setups.

The 1275-4-200-H is suited for industrial, commercial, and heavy-duty trade environments where large hose capacity and dual-circuit fluid delivery are required. The reel is available in hand crank or motorized configurations, making it adaptable to fixed service bays, fleet maintenance facilities, and permanent plumbing installations. Its mounting pattern is integrated into the steel base, allowing straightforward installation and detachment without special fixtures. The open drum slot design supports organized, tangle-free hose storage across long service runs.

Key Features

• Dual plumbing with two machined solid-brass 90-degree full-flow NPT swivels for simple seal maintenance and fast hose installation without removing the reel from its mount
• Two low-profile outlet risers and open drum slot design for a flat, non-crimping hose wrap
• One-piece CNC robotically welded 12-gauge steel frame construction for superior structural rigidity
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish resists chipping and rust for lasting durability in demanding environments

Compatibility

Designed for use with 1/2 inch inner diameter, 7/8 inch outer diameter hose up to 200 feet in length. Compatible with hand crank or hydraulic motor drive configurations within the COXREELS 1275 Series dual hose reel platform.

Installation Notes

Installation is typically performed by licensed plumbers or industrial maintenance technicians. Shut off all fluid supply and relieve system pressure before mounting or servicing the reel. Secure the reel to a structurally adequate surface using the integrated base mounting pattern and appropriate fasteners. Follow all applicable plumbing codes and manufacturer torque guidelines for NPT swivel connections to prevent leaks.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Hose Capacity: 200 feet
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Finish: CPC powder coat
• Length: 37 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 83 pounds
• UPC: 674255850873

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275-4-200-H
