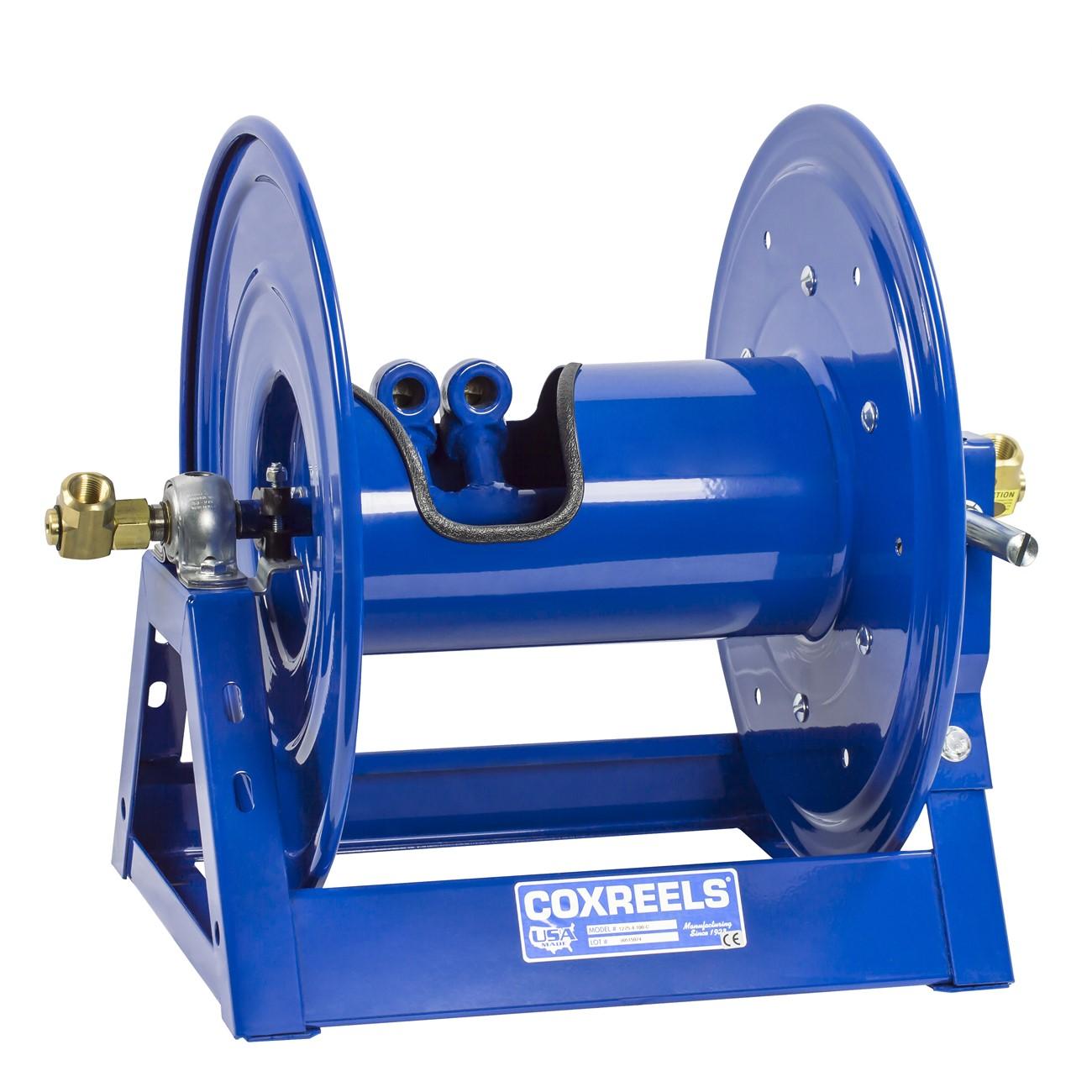

Coxreels 1275-4-200-C Dual Hose Reel 1/2 Inch 200 Ft

Product Description

The COXREELS 1275-4-200-C is a heavy-duty dual hose reel from the 1275 Series, built for large-capacity fluid transfer applications in industrial, commercial, and trade service environments. It accommodates hose with a 1/2 inch inner diameter and holds up to 200 feet of hose. The reel can be configured for hand crank or motorized operation. Dual plumbing runs through two brass swivel inlets and two low-profile outlet risers, paired with an open drum slot design that produces a non-crimping, flat smooth hose wrap. Licensed contractors and service professionals in plumbing, HVAC, and industrial maintenance are the primary installers and operators of this unit.

The 1275-4-200-C is suited for large-volume hose management in fixed or semi-permanent service bays, maintenance shops, and job-site installations where dual-line fluid delivery is required. The hand crank or motorized drive options make it adaptable to both manual and powered retraction setups. Its 37 inch length, 21 inch width, and 21 inch height footprint fits standard wall, ceiling, or floor mounting configurations. The 75-pound unit weight and one-piece welded steel frame construction are consistent with permanent or long-term installation use.

Key Features

• Dual plumbing with two machined solid-brass 90-degree full-flow NPT swivels for simple seal maintenance and fast hose installation without removing the reel from its mount
• Two exclusive low-profile outlet risers with open drum slot design prevent hose crimping and promote a flat, smooth hose wrap
• One-piece all-CNC robotically welded 12-gauge steel A-frame base provides superior rigidity and strength over bolted designs
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for increased strength, durability, hose protection, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long-term trouble-free performance
• CPC powder coat finish is chip resistant and rust inhibiting; adjustable tension brake prevents free-wheeling; front bevel gear crank enables easy mechanical retraction

Compatibility

Designed for large-capacity dual-hose reel applications accommodating 1/2 inch inner diameter hose up to 200 feet in length. Compatible with hand crank or motorized drive configurations as specified at time of order.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid transfer systems and mechanical hose reel mounting. Shut off all fluid supply lines and depressurize the system completely before connecting or servicing the reel. Secure the A-frame base to a structurally adequate wall, ceiling, or floor surface using the mounting pattern built into the steel base. Follow all applicable local and national codes for the fluid type and pressure rating of the connected system.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Hose Capacity: 200 feet
• Drive Type: Hand crank or motorized
• Frame Material: 12-gauge steel, one-piece CNC robotically welded
• Swivel Material: Solid brass, machined
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 37 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 75 pounds
• UPC: 674255823389

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275-4-200-C
