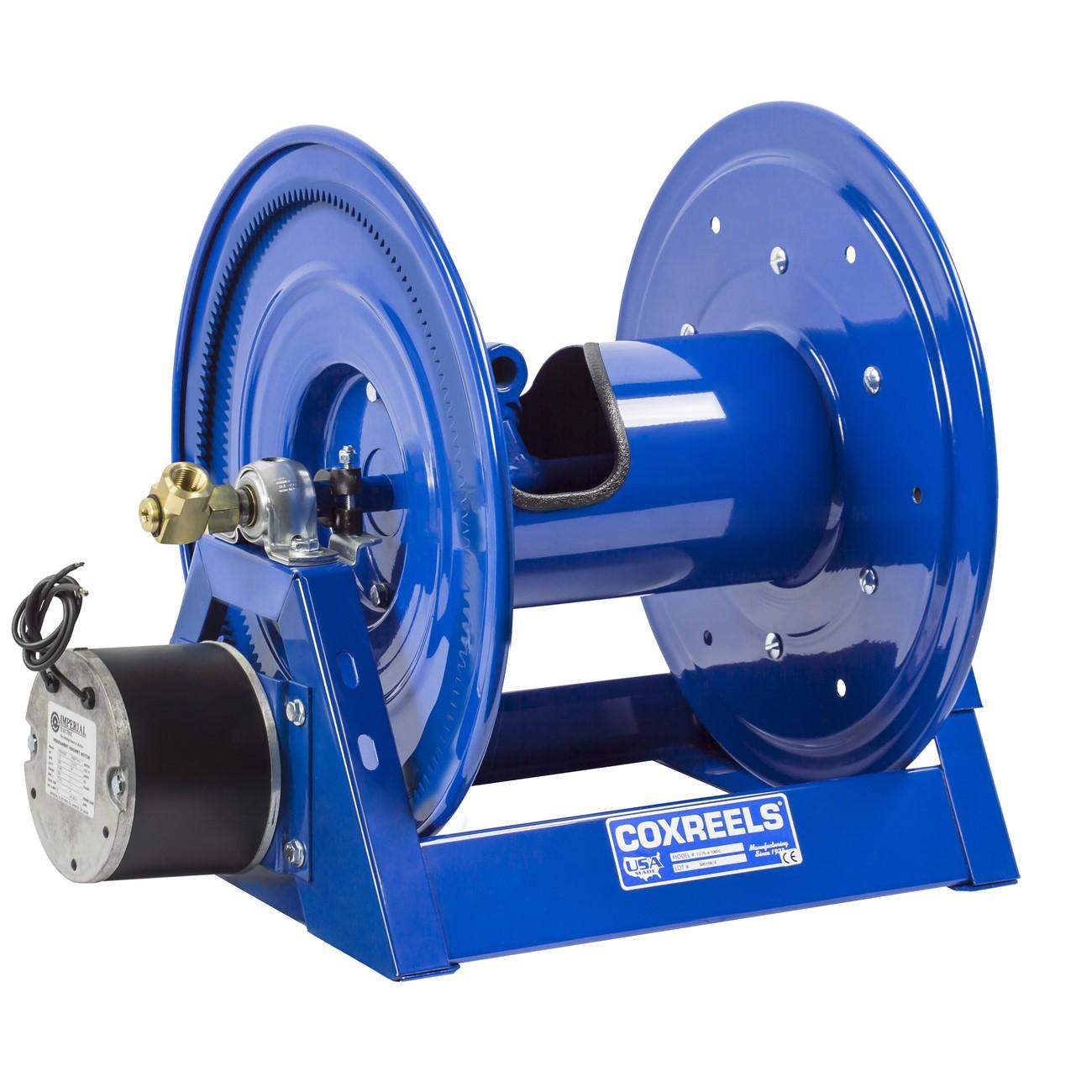

Coxreels 1275-4-150-EF Dual Hose Reel 1/2 in 150 Ft

Product Description

The COXREELS 1275-4-150-EF is a large-capacity dual hose reel from the 1275 Series, designed for demanding industrial and commercial applications. It accepts hose with a 1/2 inch inner diameter and 7/8 inch outer diameter, with a 150 ft hose capacity. The reel is available with hand crank or motorized operation and includes a 24-volt DC, 1/3 HP reversible motor. Two swivel inlets and two low-profile outlet risers work with an open drum slot to produce a non-crimping, flat smooth hose wrap. Licensed HVAC technicians, plumbers, and industrial service contractors typically install and use this reel in high-volume hose management setups.

The 1275-4-150-EF suits large-capacity hose management in commercial, industrial, and heavy trade service environments. The dual plumbing configuration handles applications where two hose lines must be deployed from a single reel mount. The open drum slot and low-profile outlet riser design reduces hose stress during winding and unwinding, making it appropriate for frequent daily use in shop, fleet service, or field installation scenarios.

Key Features

• Dual plumbing with two machined solid-brass 90-degree full-flow NPT swivel inlets for fast hose installation without removing the reel from its mount
• Two low-profile outlet risers and open drum slot deliver a non-crimping, flat smooth hose wrap
• One-piece all-CNC robotically welded 12-gauge steel A-frame base provides rigid, bolted-free structure with integrated mounting pattern
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, hose protection, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish resists chips, rust, and corrosion; 24-volt DC, 1/3 HP reversible motor included

Compatibility

Designed for use with 1/2 inch inner diameter, 7/8 inch outer diameter hose up to 150 ft in length. Intended for large-capacity dual-hose reel applications in commercial and industrial service installations.

Installation Notes

Installation is typically performed by qualified industrial or trade service technicians. Disconnect and de-energize all power sources and relieve line pressure before mounting or servicing the reel. The steel A-frame base mounting pattern should be secured to a structurally sound surface rated for the combined weight of the reel and fully loaded hose. Electrical connections for the 24-volt DC motor should comply with applicable NEC requirements and be made by a qualified electrician.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Hose Capacity: 150 ft
• Motor: 24 volts DC, 1/3 HP reversible
• Frame Material: 12-gauge steel, CNC robotically welded
• Finish: CPC powder coat
• Length: 37 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 55 pounds
• UPC: 674255852655

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275-4-150-EF
