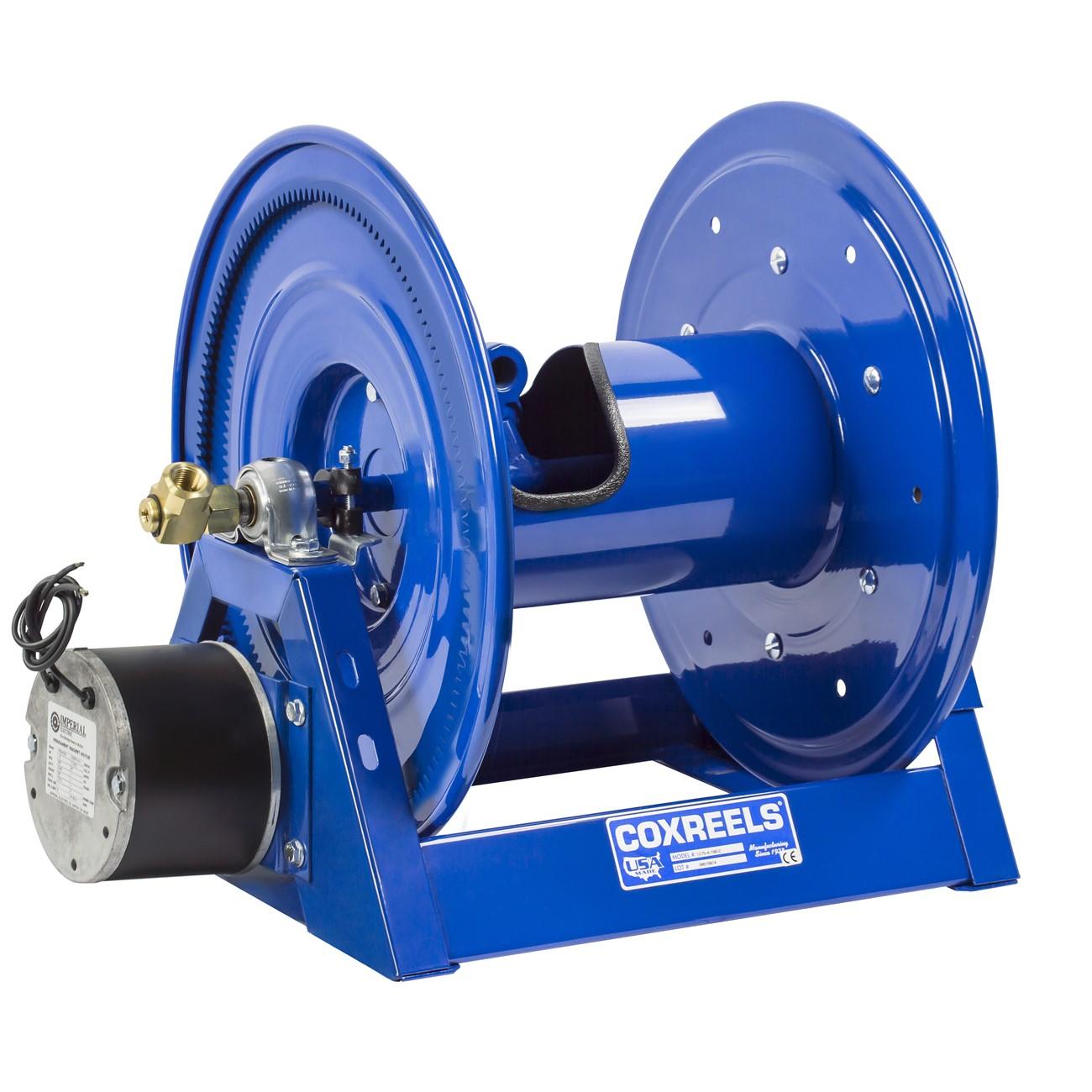

Coxreels 1275-4-150-E Dual Hose Reel 150 Ft Motorized

Product Description

The COXREELS 1275-4-150-E is a heavy-duty dual hose reel built for large-capacity industrial and trade applications. It accommodates hose with a 1/2 inch ID and 7/8 inch OD up to 150 feet in length. The reel is powered by a 12V DC, 1/3 HP reversible motor and can also be operated manually via hand crank. Dual plumbing with two swivel inlets and two low-profile outlet risers ensures a non-crimping, flat smooth hose wrap across the open drum slot. The one-piece all-welded steel A-frame construction provides superior structural rigidity. Licensed HVAC technicians, plumbers, and industrial service contractors are the primary installers and operators.

The 1275-4-150-E is suited for demanding service environments where large hose capacity and dual-circuit plumbing are required. The open drum slot design supports flat, even hose layering across the full 150 feet of capacity, reducing wear and preventing kinks during deployment and retrieval. The motorized rewind function is particularly useful in high-volume service bays, fleet maintenance facilities, and industrial plant settings where frequent hose cycling is expected. The reel ships as a single unit and is designed for permanent or semi-permanent mounting.

Key Features

• Dual plumbing with two machined solid-brass 90-degree full-flow NPT swivel inlets for simple seal maintenance without removing the reel from its mount
• Two exclusive low-profile outlet risers and open drum slot design for a non-crimping, flat smooth hose wrap
• 12V DC, 1/3 HP reversible motor with hand-crank option for flexible operation
• One-piece CNC robotically welded 12-gauge steel A-frame base for superior reel structure and easy mounting and detachment
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, hose protection, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish for chip resistance and rust inhibition

Compatibility

Designed for use with 1/2 inch ID, 7/8 inch OD hose up to 150 feet in length. Intended for large-capacity dual-circuit hose reel applications in industrial, fleet maintenance, and commercial service environments.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting and low-voltage DC wiring. Disconnect and lock out all power sources before making electrical connections to the 12V DC motor circuit. Secure the reel to a structurally sound surface using the mounting pattern located in the steel base. Verify all NPT swivel inlet connections are leak-free before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Hose Capacity: 150 feet
• Motor Voltage: 12V DC
• Motor Output: 1/3 HP
• Frame Material: 12-gauge steel, CNC robotically welded
• Finish: CPC powder coat
• Length: 37 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 84 pounds
• UPC: 674255823587

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275-4-150-E
