Coxreels 1275-4-150-C Dual Hose Reel 150 Ft 1/2 Inch Id

Product Description

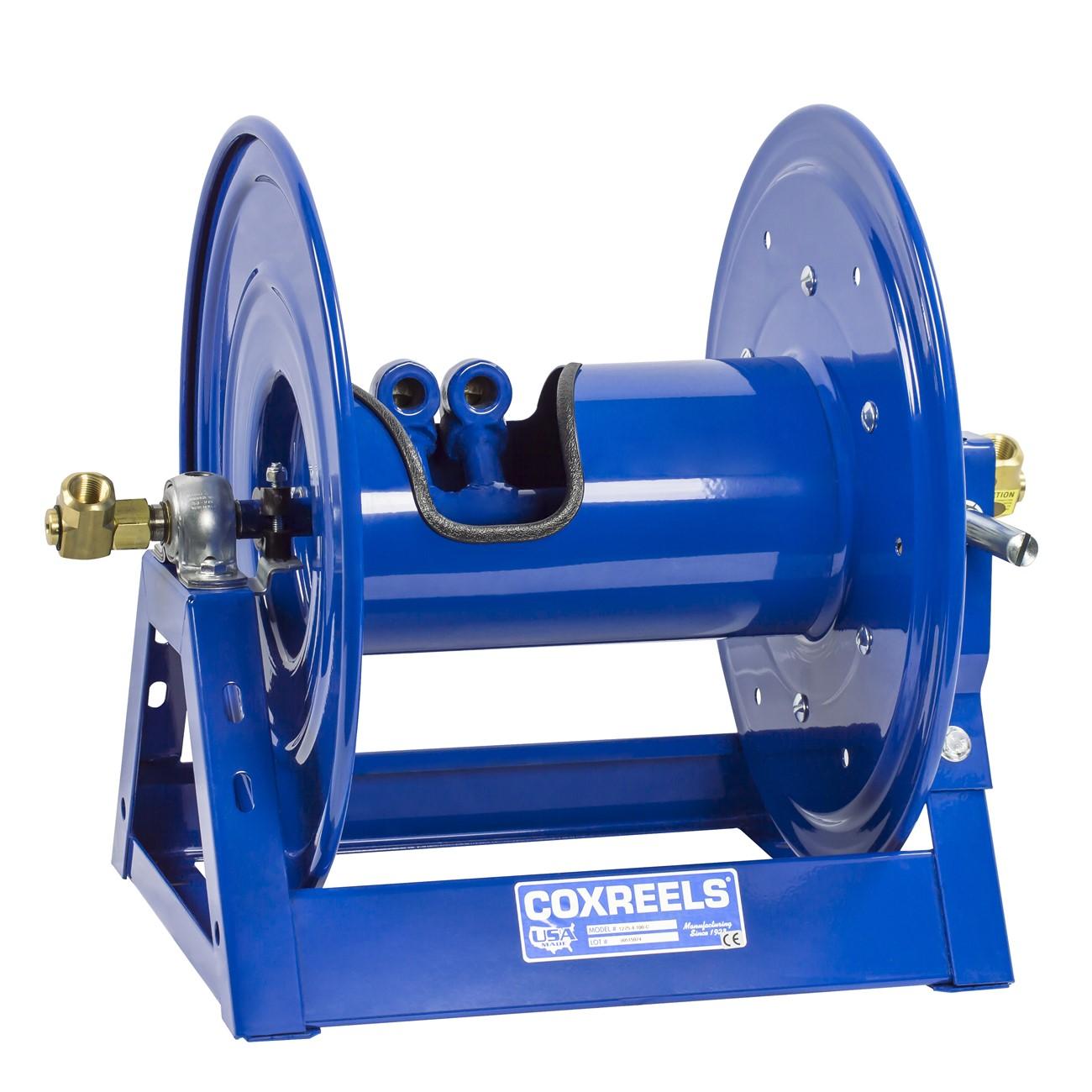

The COXREELS 1275-4-150-C is a heavy-duty dual hose reel from the 1275 Series, engineered for large-capacity fluid handling in demanding trade and industrial environments. It accommodates hose with a 1/2-inch inner diameter and 7/8-inch outer diameter at a 150-foot capacity. The reel uses dual plumbing with two swivel inlets and two low-profile outlet risers, producing a non-crimping, flat smooth hose wrap across the open drum slot. Available in hand crank or motorized configuration, this unit is built for plumbing, industrial maintenance, and fluid transfer applications where high-volume hose management is required. Licensed plumbers and industrial service technicians are the primary installers.

The 1275-4-150-C is suited for large-capacity residential, commercial, and industrial applications where dual-hose routing is needed. The open drum slot and low-profile outlet riser design make it a practical choice for service bays, mechanical rooms, and fixed installation points where consistent hose retrieval and protection from kinking are priorities. The reel supports both hand crank and motorized drive options, giving installers flexibility based on workflow demands and facility layout.

Key Features

• Dual plumbing with two machined solid-brass 90-degree full-flow NPT swivels for simple seal maintenance and hose installation without removing the reel from its mount
• Two exclusive low-profile outlet risers with open drum slot design deliver a non-crimping, flat smooth hose wrap for hose longevity
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, hose protection, and operator safety
• One-piece all-CNC robotically welded 12-gauge steel A-frame base provides superior reel rigidity without bolted joints; mounting pattern integrated into base for easy installation and detachment
• Permanently lubricated, self-aligning pillow block bearings ensure smooth drum rotation and long-term trouble-free operation
• CPC powder coat finish resists chipping and rust; adjustable tension brake prevents free-wheeling; front bevel-geared crank enables consistent mechanical retraction

Compatibility

Designed as an OEM-style large-capacity dual hose reel replacement or new installation unit for industrial and commercial fluid transfer systems requiring 1/2-inch ID hose at up to 150 feet of length.

Installation Notes

Installation is typically performed by licensed plumbers or qualified industrial maintenance technicians. Shut off all fluid supply and depressurize the connected lines completely before mounting or servicing this reel. Secure the A-frame base to a structurally adequate surface using the integrated mounting pattern, following applicable IPC or facility-specific anchor requirements. Verify NPT swivel connections are properly sealed with thread sealant rated for the fluid being conveyed before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Hose Capacity: 150 feet
• Drive Type: Hand crank or motorized
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Material: Solid brass, NPT
• Length: 31 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 66 pounds
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• UPC: 674255823372

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275-4-150-C
