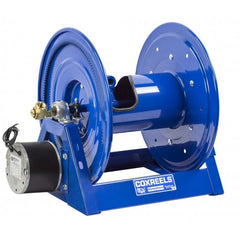

Coxreels 1275-4-150-A Dual Hose Reel 1/2 in 150 Ft

Product Description

The COXREELS 1275-4-150-A is a heavy-duty dual hose reel from the 1275 Series, built for large-capacity hose management in demanding trade and industrial environments. It accommodates hose with a 1/2 inch inner diameter and 7/8 inch outer diameter, with a 150 ft hose capacity. The reel operates via hand crank or optional motorized drive, giving installers flexibility depending on the application. The one-piece all-welded steel A-frame construction provides rigid, long-lasting support, and the positive gear drive rewind delivers consistent, controlled retraction. Licensed contractors and industrial service technicians are the primary installers of this equipment.

The 1275-4-150-A is suited for large-capacity fluid transfer applications in commercial, industrial, and heavy-service environments where dual hose routing is required. The dual plumbing configuration features two swivel inlets and two low-profile outlet risers paired with an open drum slot, which promotes a flat, non-crimping hose wrap across the full 150 ft capacity. This design is particularly useful in applications where two separate hose lines must be managed from a single centrally mounted reel, such as in service bays, wash-down stations, or fluid dispensing installations.

Key Features

• Dual plumbing with two machined solid brass 90-degree full-flow NPT swivel inlets for fast hose installation and simple seal maintenance without removing the reel from its mount
• Two exclusive low-profile outlet risers with open drum slot design provide a non-crimping, flat smooth hose wrap
• One-piece all CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity — no bolted joints
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish — chip resistant and rust inhibiting for extended service in harsh environments

Compatibility

Designed for use with 1/2 inch ID, 7/8 inch OD hose up to 150 ft in length. Suitable for large-capacity dual hose reel applications requiring NPT swivel connections. Consult COXREELS documentation to confirm hose and fitting compatibility for specific fluid types and pressures.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid transfer systems and mounting hardware requirements. Depressurize and drain all hose lines before servicing or mounting the reel. The mounting pattern is located in the steel base — ensure the mounting surface and fasteners are rated for the combined weight of the reel, hose, and fluid load. When installing the motorized drive option, follow applicable electrical codes and ensure the power source is de-energized before making connections.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 7/8 inch
• Hose Capacity: 150 ft
• Drive Type: Hand crank or motorized
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Material: Solid brass, machined
• Finish: CPC powder coat, chip resistant, rust inhibiting
• Length: 31 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 62 pounds
• UPC: 674255823570

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275-4-150-A
