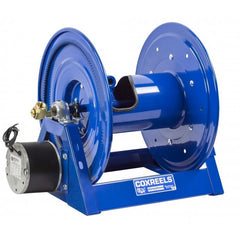

Coxreels 1275-4-100-H Dual Hose Reel 100 Ft Hydraulic

Product Description

The COXREELS 1275-4-100-H is a heavy-duty dual hose reel from the 1275 Series, built for large-capacity industrial and trade applications. It accommodates hose with a 1/2 inch ID and holds up to 100 feet of hose. The reel uses a dual plumbing configuration with two swivel inlets and two low-profile outlet risers, producing a flat, non-crimping hose wrap across an open drum slot. The one-piece all-welded steel A-frame provides rigid, bolted-free structure. A hydraulic motor drives retraction, and the positive gear drive rewind delivers consistent, repeatable performance. At 69 pounds, the unit is built for stationary or vehicle-mount service installations.

The 1275-4-100-H is suited for high-demand service environments where dual-line fluid delivery is required. The hydraulic motor drive makes it appropriate for mobile service vehicles, lube service bays, industrial facilities, and fleet maintenance operations. The open drum slot and low-profile outlet risers support smooth hose lay during high-volume dispensing operations. Installation and service are performed by experienced mechanics, industrial technicians, or fleet service professionals working with hydraulic or fluid transfer systems.

Key Features

• Dual plumbing with two machined solid-brass 90-degree full-flow NPT swivels for simple seal maintenance and hose installation without removing the reel from its mount
• Two exclusive low-profile outlet risers and open drum slot design for non-crimping, flat smooth hose wrap
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, hose protection, and operator safety
• One-piece all CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy detachment
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long-term trouble-free operation
• CPC powder coat finish resists chips, rust, and corrosion for extended service life

Compatibility

Designed as an OEM-style replacement or direct-fit reel for large-capacity dual-hose industrial and mobile service applications requiring 1/2 inch ID hose and hydraulic motor drive retraction.

Installation Notes

Installation is typically performed by qualified industrial mechanics or fleet service technicians familiar with hydraulic fluid systems. Shut down all hydraulic pressure to the motor drive circuit and depressurize both hose lines before mounting or servicing the reel. Use the integrated steel base mounting pattern for secure anchoring to a fixed surface or vehicle mount. Consult applicable local safety and equipment codes before placing the reel into service.

Technical Specifications

• Hose ID: 1/2 inch
• Hose Capacity: 100 feet
• Drive Type: Hydraulic motor
• Frame Material: 12-gauge steel, all-welded A-frame
• Swivel Material: Solid brass, machined
• Finish: CPC powder coat
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 69 pounds
• UPC: 674255851733

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275-4-100-H
