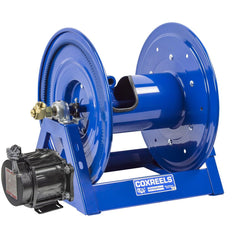

Coxreels 1275-4-100-ED Dual Hose Reel 100 Ft Electric

Product Description

The COXREELS 1275-4-100-ED is a heavy-duty dual hose reel from the 1275 Series, designed for large-capacity industrial and commercial applications. It features dual plumbing with two swivel inlets and two low-profile outlets, producing a non-crimping, flat smooth hose wrap across the open drum slot. The reel is driven by a 12-volt DC, 1/2 HP explosion-proof reversible motor for powered retrieval. The one-piece all-welded steel A-frame construction adds rigidity without bolted joints, and permanently lubricated self-aligning pillow block bearings ensure smooth, consistent rotation. Licensed trades handling high-demand fluid transfer applications rely on this reel for continuous-duty performance.

The 1275-4-100-ED is suited for large-capacity fluid transfer in industrial facilities, service garages, manufacturing plants, and heavy equipment maintenance environments. It accommodates 1/2 inch ID hose up to 100 feet in length. The dual-outlet, open drum design handles larger hose diameters without kinking or bunching, making it appropriate for applications where hose condition and flow consistency are critical. The explosion-proof motor designation makes it applicable in environments with flammable vapor exposure, subject to applicable local codes and classifications.

Key Features

• Dual plumbing with two machined solid-brass 90-degree full-flow NPT swivels for simple seal maintenance and fast hose installation without removing the reel from its mount
• 12-volt DC, 1/2 HP explosion-proof reversible electric motor for powered hose retrieval
• One-piece CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity
• Two exclusive low-profile outlet risers and open drum slot design for a non-crimping, flat smooth hose wrap
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Long-lasting CPC powder coat finish rated for chip resistance and rust inhibition

Compatibility

Designed for use with 1/2 inch ID hose up to 100 feet in length. Part of the COXREELS 1275 Series dual hose reel platform intended for large-capacity fluid transfer systems requiring dual-circuit plumbing.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial hose reel mounting and low-voltage DC wiring. Shut off fluid supply and disconnect electrical power before mounting or servicing the reel. The mounting pattern is located in the steel base for direct attachment to a fixed structure. Electrical connections for the 12-volt DC motor must comply with applicable NEC requirements and, where the explosion-proof rating is relied upon, must follow the classification requirements of the installation site.

Technical Specifications

• Hose ID: 1/2 inch
• Hose Capacity: 100 feet
• Motor Voltage: 12 volts DC
• Motor Output: 1/2 HP
• Motor Type: Explosion-proof reversible electric
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Material: Solid brass, machined
• Finish: CPC powder coat
• Length: 31 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 79 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275-4-100-ED
