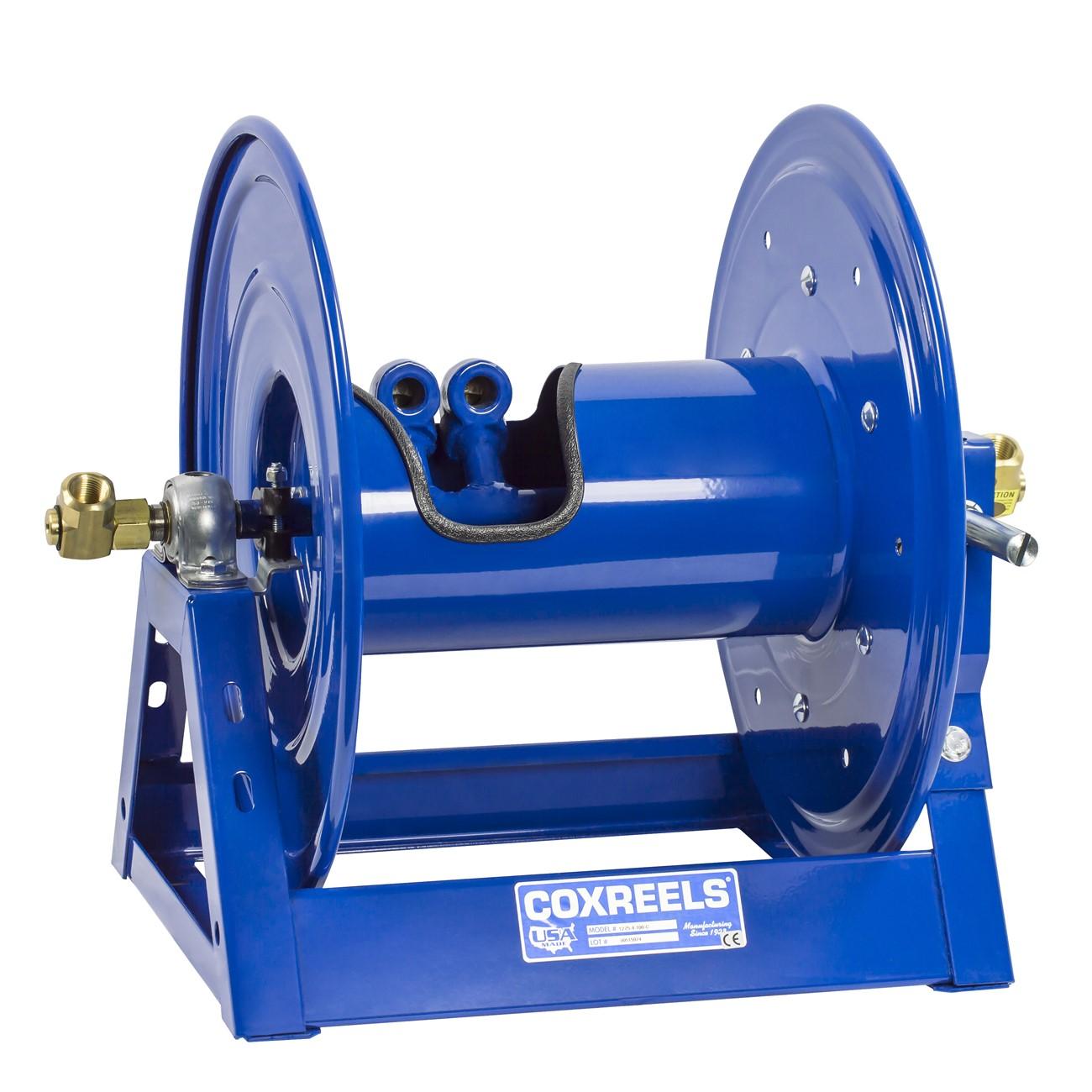

Coxreels 1275-4-100-C Dual Hose Reel 1/2 Inch 100 Ft

Product Description

The COXREELS 1275-4-100-C is a large-capacity dual hose reel from the 1275 Series, designed for demanding industrial and commercial applications. It features dual plumbing with two swivel inlets and two low-profile outlet risers that work with an open drum slot to deliver a non-crimping, flat smooth hose wrap. The reel accepts 1/2 inch ID, 7/8 inch OD hose up to 100 feet in length. Available in hand crank or motorized configurations, it is installed by maintenance technicians, industrial service crews, and professional contractors who require reliable, high-volume fluid delivery or retrieval in fixed or mobile setups.

The 1275-4-100-C is suited for large-capacity industrial, commercial, and heavy-duty service environments where dual hose routing is required. The open drum slot and low-profile outlet riser design support consistent hose layering across the full 100 foot capacity. Its welded steel A-frame construction makes it appropriate for permanent wall, floor, or ceiling mounting in facilities such as service bays, plants, and equipment yards. The positive gear drive rewind and adjustable tension brake support controlled retraction during active use.

Key Features

• Dual plumbing with two machined solid brass 90-degree full-flow NPT swivels for simple seal maintenance without removing the reel from its mount
• Two exclusive low-profile outlet risers and open drum slot design provide a non-crimping, flat smooth hose wrap
• One-piece all CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity — not bolted construction
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, hose protection, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish is chip-resistant and rust-inhibiting; front bevel gear crank with adjustable tension brake prevents free-wheeling

Compatibility

Designed for use with 1/2 inch ID, 7/8 inch OD hose up to 100 feet in length. Fits large-capacity dual-hose applications requiring NPT swivel connections in industrial or commercial service installations.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid handling systems and structural mounting practices. Shut off and depressurize all fluid supply lines before mounting or connecting the reel. Secure the A-frame base to a structurally sound surface using the integrated mounting pattern in the steel base. Verify all NPT swivel connections are properly sealed before returning the system to service.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 7/8 inch
• Hose Capacity: 100 feet
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Material: Solid brass, machined
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 25.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 61 pounds
• UPC: 674255823365

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1275-4-100-C
