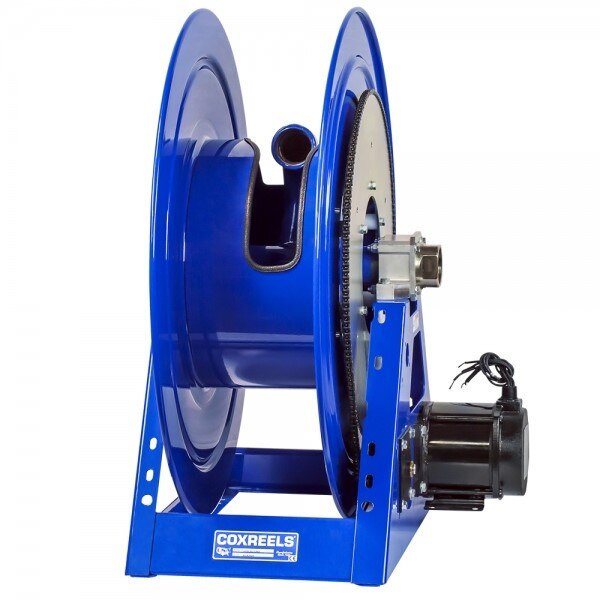

Coxreels 1195-932-H Hose Reel 2 Inch Id 50 Ft

Product Description

The COXREELS 1195-932-H is a heavy-duty hose reel from the 1195 Series, built to handle long lengths of large-diameter hose for high-volume fluid delivery. It features a 2 inch ID and accommodates up to 50 feet of hose. The reel ships with a hydraulic motor drive option alongside hand-crank capability. An all-welded CNC steel A-frame base provides the structural rigidity needed to support the extra load, including mobile and demanding fixed-mount applications. The electroless nickel-plated full-flow NPT swivel allows inline seal maintenance without removing the reel from its mount.

This reel is suited for industrial, mobile, and stationary applications where large-diameter hose management is required. Typical installations include hydraulic service, heavy fluid transfer, and high-volume wash-down setups. The open drum and low-profile outlet riser design ensures a flat, non-crimping hose wrap that protects hose integrity over repeated use cycles. Licensed technicians and service professionals working in industrial maintenance, mobile lube, or hydraulic service environments are the primary installers.

Key Features

• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose changes without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design delivers a flat, non-crimping hose wrap
• One-piece all-welded 12-gauge steel A-frame base — no bolted joints — for superior structural integrity
• Permanently lubricated horizontal surface-mount bearings for smooth rotation under load
• CPC powder coat finish resists chipping and rust for long service life
• Hydraulic motor drive included

Compatibility

Designed as an OEM-style replacement or direct fitment reel for industrial and mobile applications requiring a 2 inch ID hose connection with large-diameter, high-volume delivery capability.

Installation Notes

Installation should be performed by a qualified technician familiar with hydraulic or fluid transfer systems. Shut down and depressurize the fluid system fully before mounting or connecting the reel. Secure the reel using the mounting pattern in the steel base, following applicable torque and fastener specifications for the mounting surface. Verify all swivel and hose connections are leak-free before returning the system to service.

Technical Specifications

• Hose ID: 2 inches
• Hose Length Capacity: 50 feet
• Frame Material: 12-gauge welded steel
• Drive Type: Hydraulic motor and hand crank
• Swivel Finish: Electroless nickel-plated steel
• Length: 27.5 inches
• Width: 36 inches
• Height: 36 inches
• Weight: 144 pounds
• UPC: 674255852402

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-932-H
