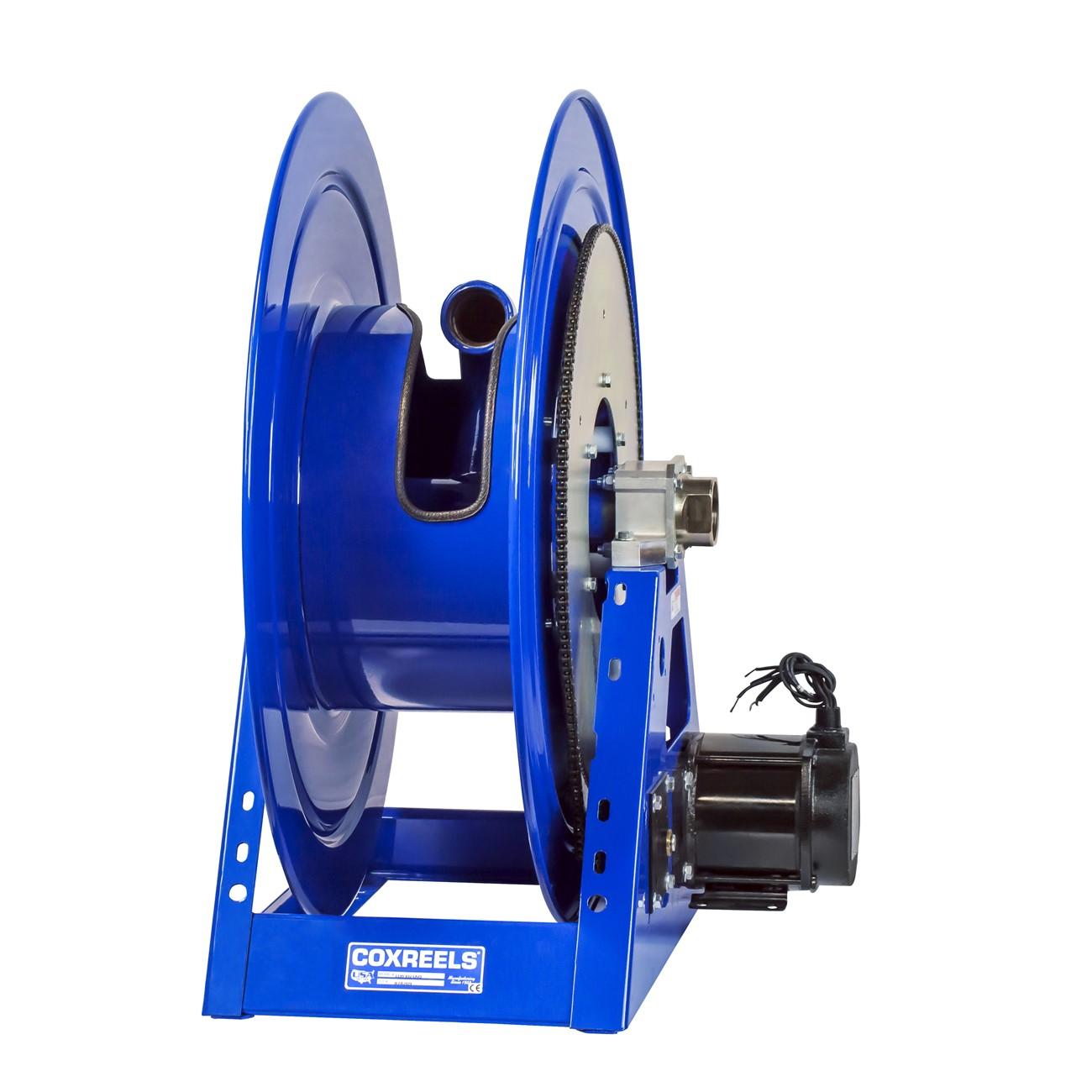

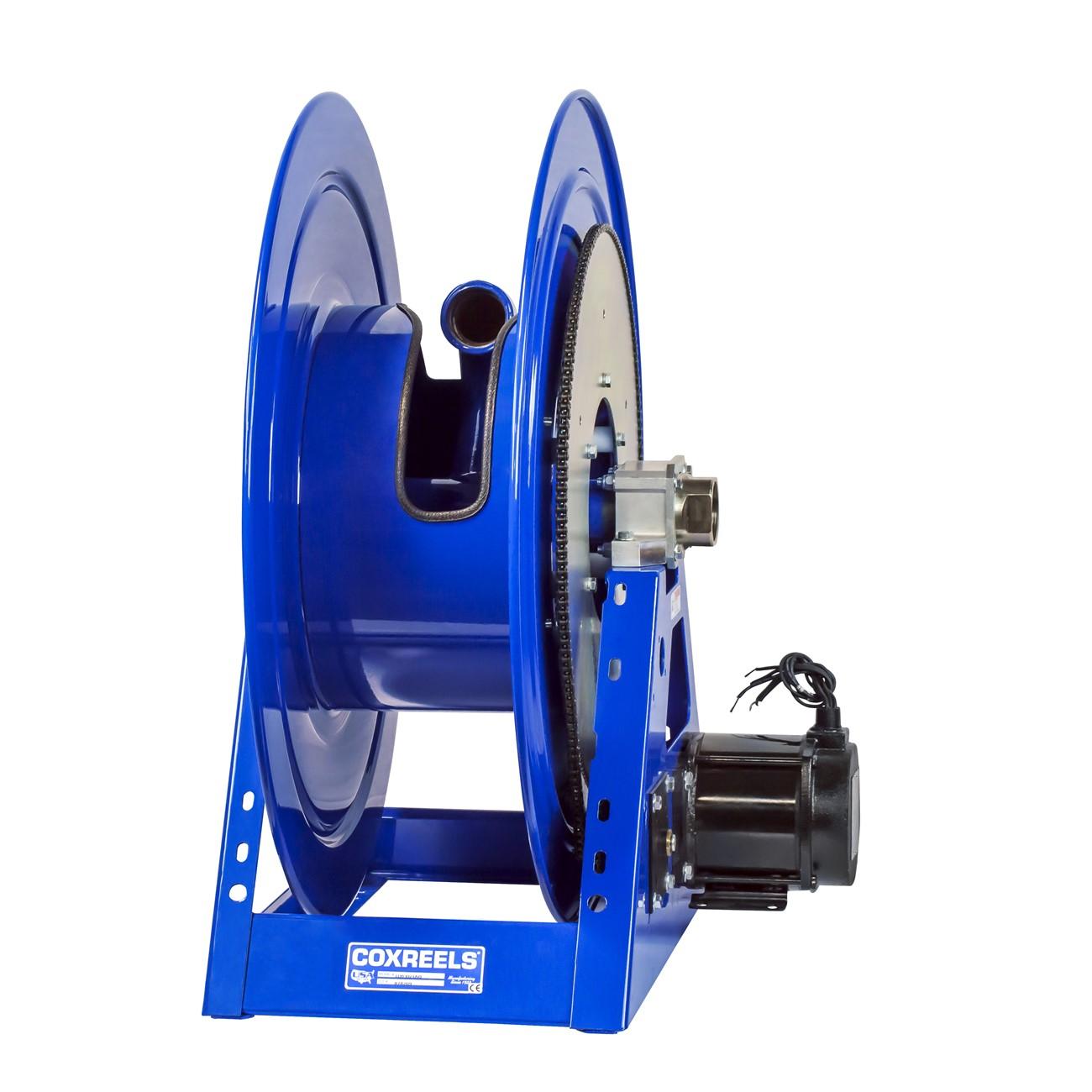

Coxreels 1195-932-EJV3 Motor Driven Hose Reel 2 in 50 Ft

Product Description

The COXREELS 1195-932-EJV3 is a heavy-duty motor-driven hose reel from the 1195 Series, built to handle long lengths of large-diameter hose for high-volume fluid delivery. It features a 2-inch ID inlet, accepts hose up to 2 9/16 inches OD, and is rated for 50 feet of hose. The reel is powered by a 12-volt DC, 1/2 HP explosion-proof reversible motor, making it suitable for both stationary and demanding mobile applications. Licensed HVAC, plumbing, and industrial service professionals install this reel where large hose runs and high flow rates are required. The unit weighs 141 pounds and ships as a single assembly.

The 1195-932-EJV3 is intended for applications requiring high-volume hose deployment across extended lengths of large-diameter hose. Its explosion-proof motor rating makes it appropriate for environments where flammable vapors or gases may be present. The open drum design and low-profile outlet riser allow hose to lay flat and smooth on the drum, reducing wear and preventing crimping during repeated use. Mobile service rigs, fleet maintenance bays, and fixed industrial stations are typical installation environments. This reel is designed for professional installation and service by qualified tradespeople.

Key Features

• 12V DC, 1/2 HP explosion-proof reversible motor for powered hose retrieval in hazardous-rated environments
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping and promotes flat, smooth hose wrap
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing reel from mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• One-piece all-CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy detachment
• CPC powder coat finish provides chip resistance and rust inhibition for long service life

Compatibility

Designed as an OEM-style replacement or new-installation hose reel for professional mobile and stationary large-diameter hose applications requiring a 2-inch ID connection and up to 50 feet of hose capacity.

Installation Notes

Installation should be performed by a qualified tradesperson familiar with large-format hose reel mounting and low-voltage DC electrical wiring. Disconnect and lock out all power sources before servicing the motor or electrical connections. Secure the A-frame base to a structurally adequate mounting surface using the integrated mounting pattern. Verify that the 12V DC power supply is correctly rated before energizing the motor.

Technical Specifications

• Hose ID: 2 inches
• Hose OD: 2 9/16 inches
• Hose Capacity: 50 feet
• Motor Voltage: 12 volts DC
• Motor Power: 1/2 HP
• Motor Type: Explosion-proof reversible
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat
• Swivel Material: Electroless nickel-plated steel
• Length: 27.5 inches
• Width: 36 inches
• Height: 36 inches
• Weight: 141 pounds
• UPC: 674255862074

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-932-EJV3
