Coxreels 1195-932-EAV3-BUXX Motorized Hose Reel 2 Inch Id

Product Description

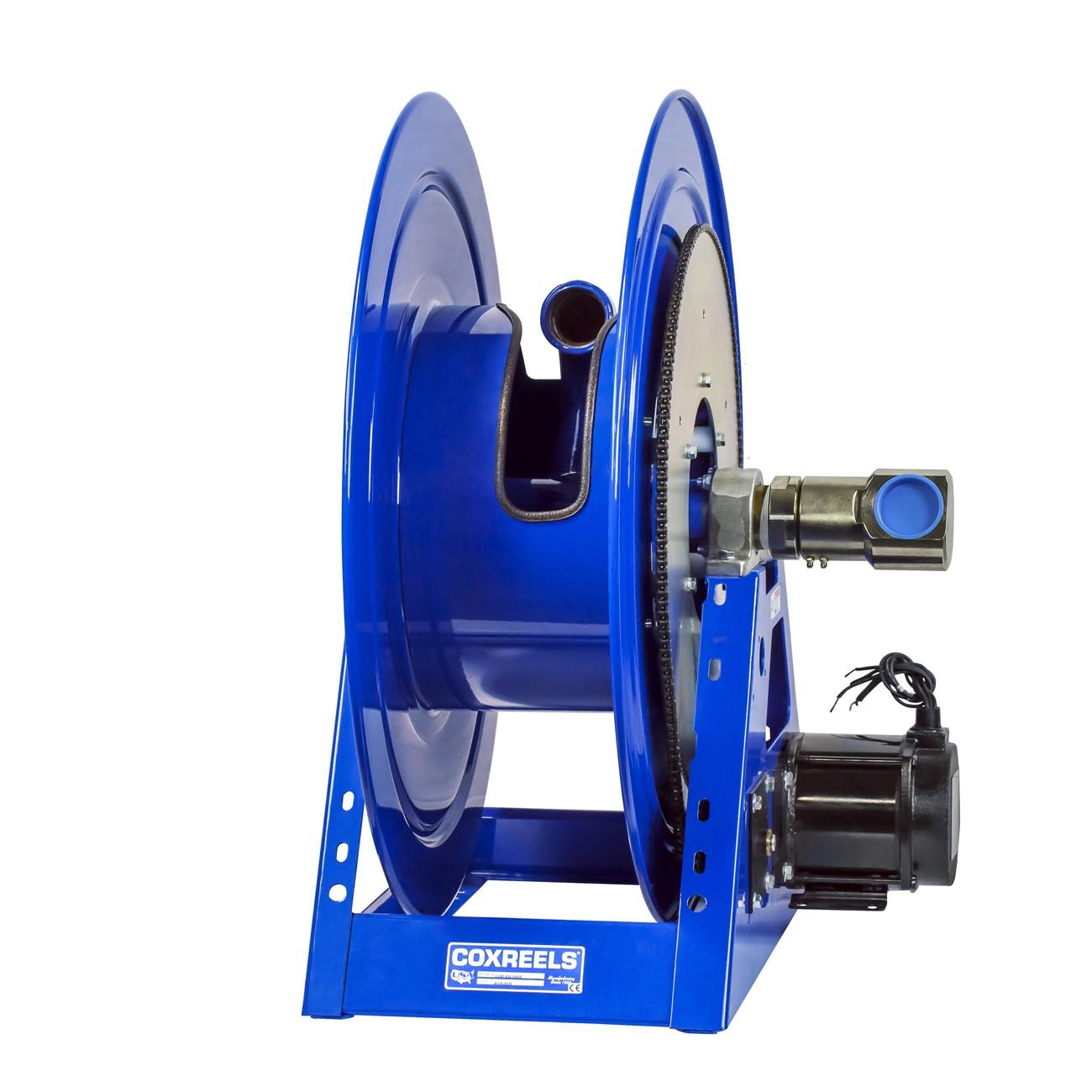

The COXREELS 1195-932-EAV3-BUXX is a heavy-duty motor-driven hose reel built for high-volume fluid delivery applications requiring long runs of large-diameter hose. Part of the 1195 Series, it features a 2-inch inner diameter inlet and a 2 9/16-inch outer diameter hose path. A 1/2 HP reversible AC rectified motor operating at 115 volts handles both pay-out and rewind. The all-welded steel A-frame base and CNC robotically spun discs give this reel the structural integrity to perform under the added weight of large-bore hose. Weighing 154 pounds, it is built for permanent or mobile industrial installations where durability and consistent high-flow performance are required.

This reel is suited for industrial, municipal, agricultural, and mobile service applications that demand extended hose lengths and high flow rates. The open drum design and exclusive low-profile outlet riser keep hose wrap flat and non-crimping, which is critical when handling 2-inch ID hose at volume. Typical install environments include service trucks, bulk fluid transfer stations, wash-down stations, and fixed industrial bays. The mounting pattern is integrated into the steel base, allowing straightforward installation and removal without disassembling the reel from its plumbing connection.

Key Features

• 1/2 HP reversible AC rectified motor at 115 volts for powered hose pay-out and rewind
• Electroless nickel-plated steel 90-degree full-flow NPT swivel with ball bearings allows hose connection without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Low-profile outlet riser and open drum slot design prevents hose crimping during wrap
• One-piece CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern
• CPC powder coat finish resists chipping and rust for long service life in demanding environments

Compatibility

Designed as an OEM-style large-diameter hose reel for industrial and mobile fluid transfer systems requiring 2-inch ID hose connections and motor-driven operation.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial fluid transfer systems and low-voltage AC motor wiring. Disconnect and lock out all power and shut off fluid supply before mounting or servicing the reel. The integrated base mounting pattern requires a structurally adequate mount surface rated for loads exceeding the reel weight plus filled hose weight. Motor wiring must comply with applicable NEC requirements for the installation environment.

Technical Specifications

• Hose Inner Diameter: 2 inches
• Hose Outer Diameter: 2 9/16 inches
• Motor: 1/2 HP reversible AC rectified
• Voltage: 115 volts AC
• Length: 27.5 inches
• Width: 36 inches
• Height: 36 inches
• Weight: 154 pounds
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat
• UPC: 674255864917

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-932-EAV3-BUXX
