Coxreels 1195-932-C Hose Reel 2 Inch Id 50 Ft

Product Description

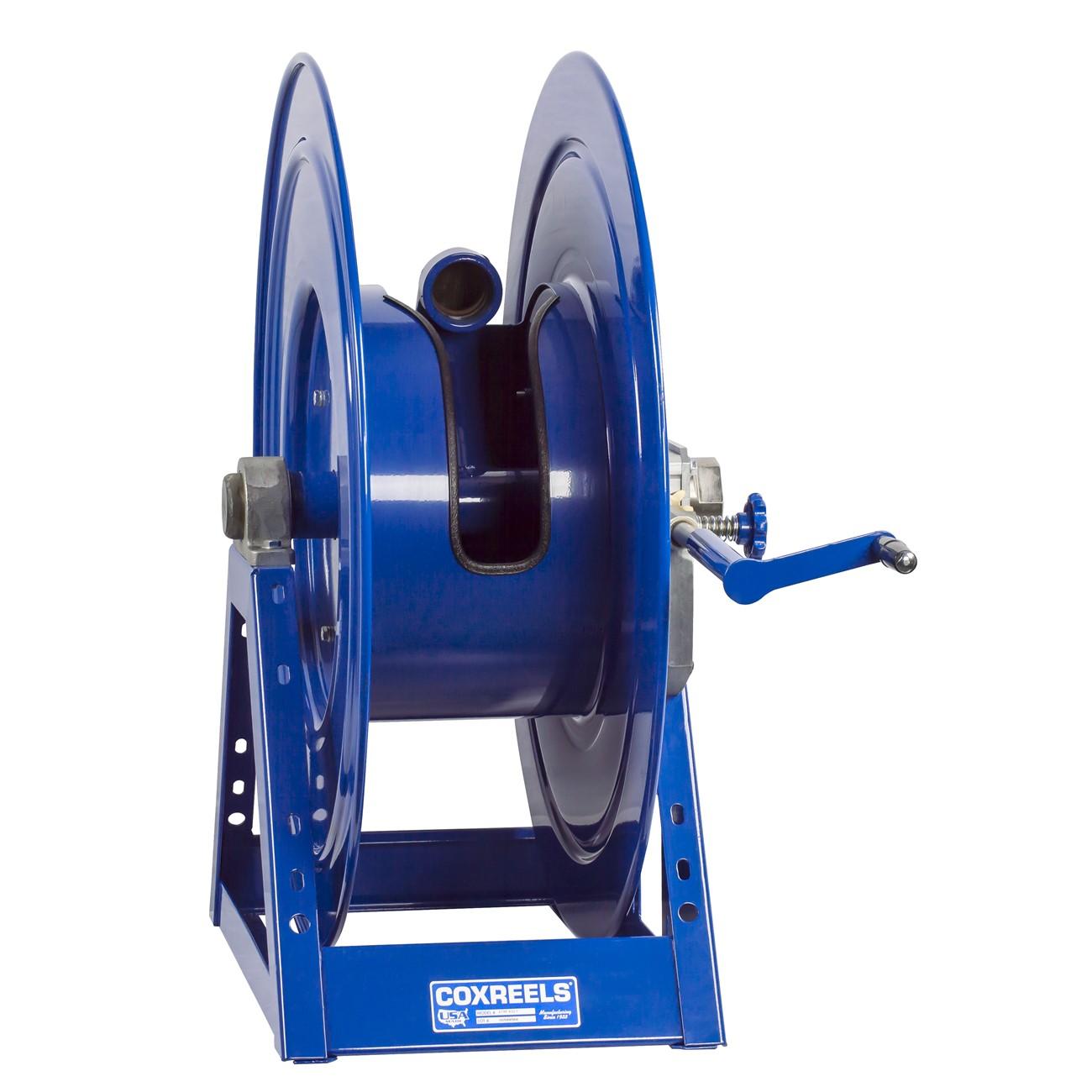

The COXREELS 1195-932-C is a heavy-duty hose reel from the 1195 Series, built to handle long lengths of large-diameter hose for high-volume fluid delivery. It features a 2 inch inner diameter and accommodates up to 50 feet of hose. The reel is available in hand crank and motor-driven configurations, making it suitable for demanding fixed and mobile applications. An exclusive low-profile outlet riser and open drum slot design ensure a non-crimping, flat smooth hose wrap. The one-piece all-welded 12-gauge steel A-frame base provides structural rigidity to support the extra load without compromising performance. Licensed trades and industrial service personnel are the primary installers.

The 1195-932-C is used in industrial, commercial, and mobile service environments where high-volume delivery through large-diameter hose is required. Typical applications include fluid transfer, wash-down stations, and heavy service bays. The open drum design and front bevel-geared crank support efficient manual retraction in high-use settings. Its mounting pattern is integrated into the steel base, simplifying installation on trucks, trailers, shop floors, and fixed wall or deck mounts.

Key Features

• Low-profile outlet riser and open drum slot design prevents hose crimping and promotes flat, even wrap
• One-piece CNC robotically welded 12-gauge steel A-frame base for superior structural strength without bolted joints
• Heavy-duty CNC spun and ribbed discs with rolled edges for durability, hose protection, and operator safety
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Permanently lubricated horizontal surface mount bearings for smooth, low-effort rotation
• Chip-resistant, rust-inhibiting CPC powder coat finish for long service life
• Front bevel-geared crank for easy mechanical retraction

Compatibility

Designed as an OEM-style replacement or direct-fit reel for industrial and mobile applications requiring 2 inch ID large-diameter hose management in the 1195 Series configuration.

Installation Notes

Installation is typically performed by industrial mechanics or licensed service technicians. Shut down all fluid supply and relieve system pressure before mounting or servicing the reel. Secure the reel to a structurally sound surface using the integrated base mounting pattern and hardware appropriate for the substrate. Refer to local and applicable safety codes when installing in mobile or pressurized fluid service applications.

Technical Specifications

• Hose Inner Diameter: 2 inches
• Hose Outer Diameter: 2.5625 inches
• Hose Capacity: 50 feet
• Frame Material: 12-gauge steel, all-welded construction
• Finish: CPC powder coat
• Length: 27.5 inches
• Width: 36 inches
• Height: 36 inches
• Weight: 131 pounds
• UPC: 674255836570

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-932-C
