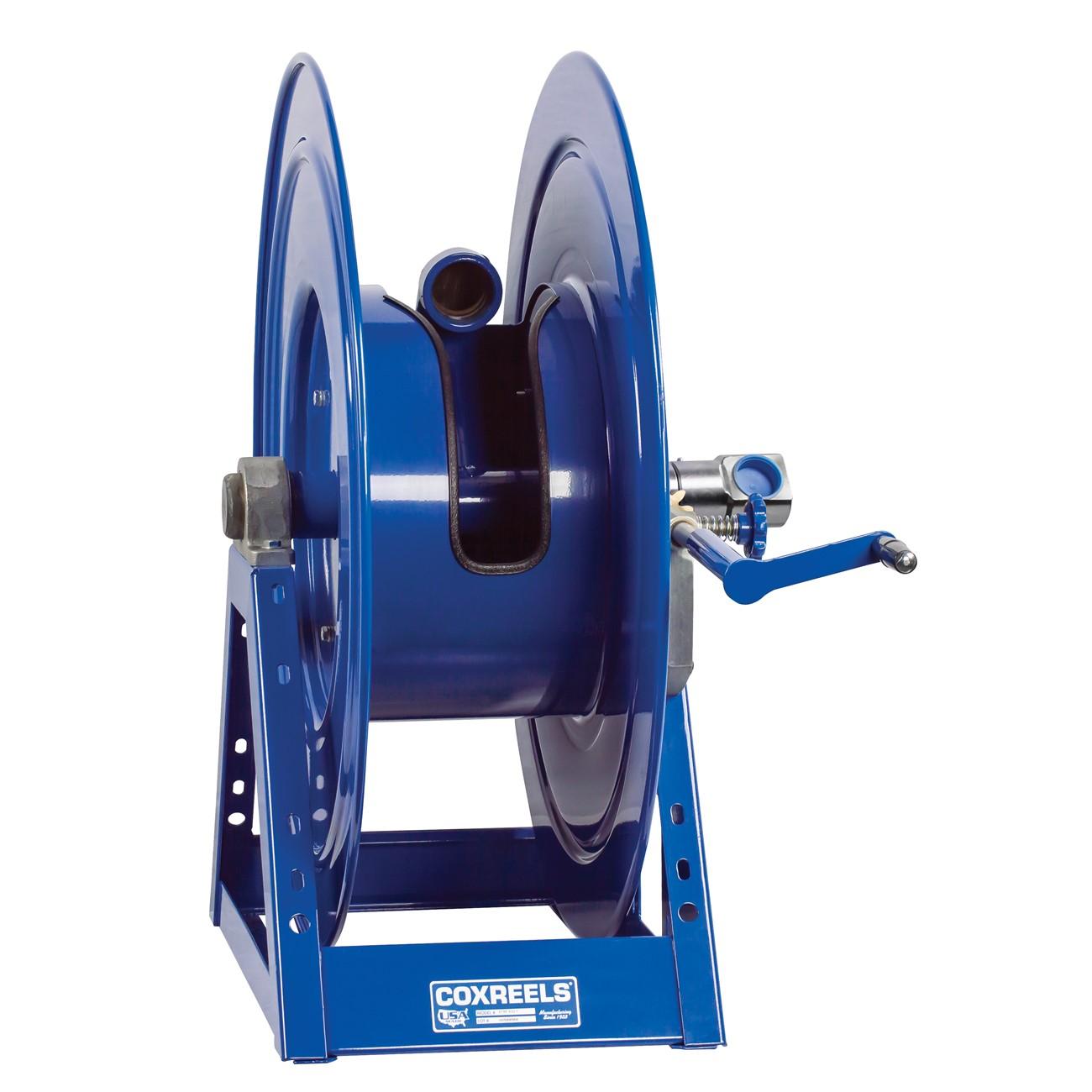

Coxreels 1195-932-C-BUXX Hose Reel 2 in Id 50 Ft

Product Description

The COXREELS 1195-932-C-BUXX is a heavy-duty hand crank and motor-driven hose reel engineered for high-volume fluid delivery through large-diameter hose. Built on the 1195 Series platform, it features a 2-inch ID inlet and accommodates up to 50 feet of hose. The all-welded steel A-frame base, CNC robotically spun ribbed discs, and electroless nickel-plated swivel are designed for demanding service environments including mobile and fixed industrial applications. At 131 pounds, this reel is built for permanent or semi-permanent installation where durability and high flow capacity are non-negotiable. Licensed trades and industrial maintenance crews are the typical installers.

This reel is suited for high-volume delivery applications requiring 2-inch ID hose in industrial, commercial, and mobile fleet settings. The open drum slot design and low-profile outlet riser promote a flat, non-crimping hose wrap, which is critical when running long lengths of large-diameter hose under repeated extension and retraction cycles. The front bevel-geared crank allows mechanical retraction without power, making it functional in locations where electrical supply for a motor drive may be unavailable or impractical.

Key Features

• Electroless nickel-plated steel 90-degree full-flow NPT swivel with ball bearings for fast hose installation without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, hose protection, and operator safety
• Exclusive low-profile outlet riser and open drum slot design delivers a non-crimping, flat smooth hose wrap
• One-piece, all CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for easy installation and detachment
• Permanently lubricated horizontal surface-mount bearings for smooth rotation under load
• CPC powder coat finish for chip resistance and rust inhibition; front bevel-geared crank for manual mechanical retraction

Compatibility

Designed for use with 2-inch ID large-diameter hose in industrial and mobile high-volume delivery systems as part of the COXREELS 1195 Series hose reel platform.

Installation Notes

Installation is typically performed by industrial maintenance technicians or licensed mechanics familiar with high-volume fluid transfer systems. Relieve all system pressure and drain the hose completely before mounting or servicing the reel. Secure the A-frame base to a structurally sound surface using fasteners appropriate for the load rating of the assembly. Verify all NPT swivel connections are sealed and leak-tested before returning the system to service.

Technical Specifications

• Hose ID: 2 inches
• Hose OD: 2.5625 inches
• Hose Length: 50 feet
• Unit Weight: 131 pounds
• Length: 27.5 inches
• Width: 36 inches
• Height: 36 inches
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat
• Swivel Material: Electroless nickel-plated steel
• UPC: 674255854338

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-932-C-BUXX
