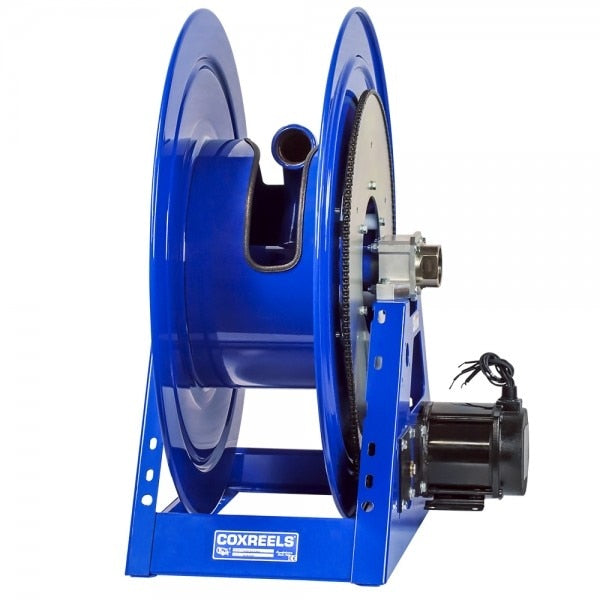

Coxreels 1195-932-AB Hose Reel 2 Inch Id 50 Ft

Product Description

The COXREELS 1195-932-AB is a heavy-duty hose reel from the 1195 Series, built for high-volume fluid delivery using large-diameter hose. It features a 2-inch inner diameter hose path and accommodates up to 50 feet of hose. The unit ships at 145 pounds and measures 27.5 inches long by 36 inches wide by 36 inches tall. Available in hand crank and motor-driven configurations, the 1195-932-AB is designed for licensed contractors and service professionals who need reliable, high-capacity hose management in fixed or mobile installations. The all-welded steel frame and CNC-spun disc construction are built to withstand the extra load of large-bore hose without compromising performance.

The 1195-932-AB fits demanding industrial and commercial service applications where conventional reels fall short. The open drum design and low-profile outlet riser keep hose wrapping flat and kink-free across the full 50-foot length. The 12-gauge welded steel A-frame base includes a mounting pattern for straightforward installation and removal, making it practical for both permanent bay installations and mobile service vehicles. HVAC, plumbing, and industrial service professionals are the primary installers of this reel class.

Key Features

• 2-inch ID hose path supports high-volume flow delivery in large-bore applications
• Exclusive low-profile outlet riser and open drum slot design prevent hose crimping and promote flat, smooth wrap
• CNC robotically spun and ribbed discs with rolled edges for added strength, durability, and operator safety
• One-piece, all-welded 12-gauge steel A-frame base — not bolted — for superior structural integrity
• In-line electroless nickel-plated steel full-flow NPT swivel allows seal maintenance and hose swap without dismounting the reel
• Permanently lubricated horizontal surface-mount bearings for smooth, low-effort rotation
• CPC powder coat finish provides chip resistance and rust inhibition for long service life

Compatibility

Designed as an OEM-style replacement and standard fitment for large-diameter hose reel applications in industrial, commercial, and mobile service environments requiring 2-inch ID hose capacity.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial hose reel mounting practices. Shut off all fluid supply and depressurize the hose system fully before connecting or disconnecting hose or servicing the swivel. Secure the A-frame base to a mounting surface rated to support the combined weight of the reel and loaded hose. Motor-driven variants must be wired in accordance with applicable NEC requirements before energizing.

Technical Specifications

• Hose Inner Diameter: 2 inches
• Hose Outer Diameter: 2.5625 inches
• Hose Capacity: 50 feet
• Unit Weight: 145 pounds
• Length: 27.5 inches
• Width: 36 inches
• Height: 36 inches
• Frame Material: 12-gauge welded steel
• Swivel Finish: Electroless nickel-plated steel
• Finish: CPC powder coat
• UPC: 674255833432

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: 1195-932-AB
